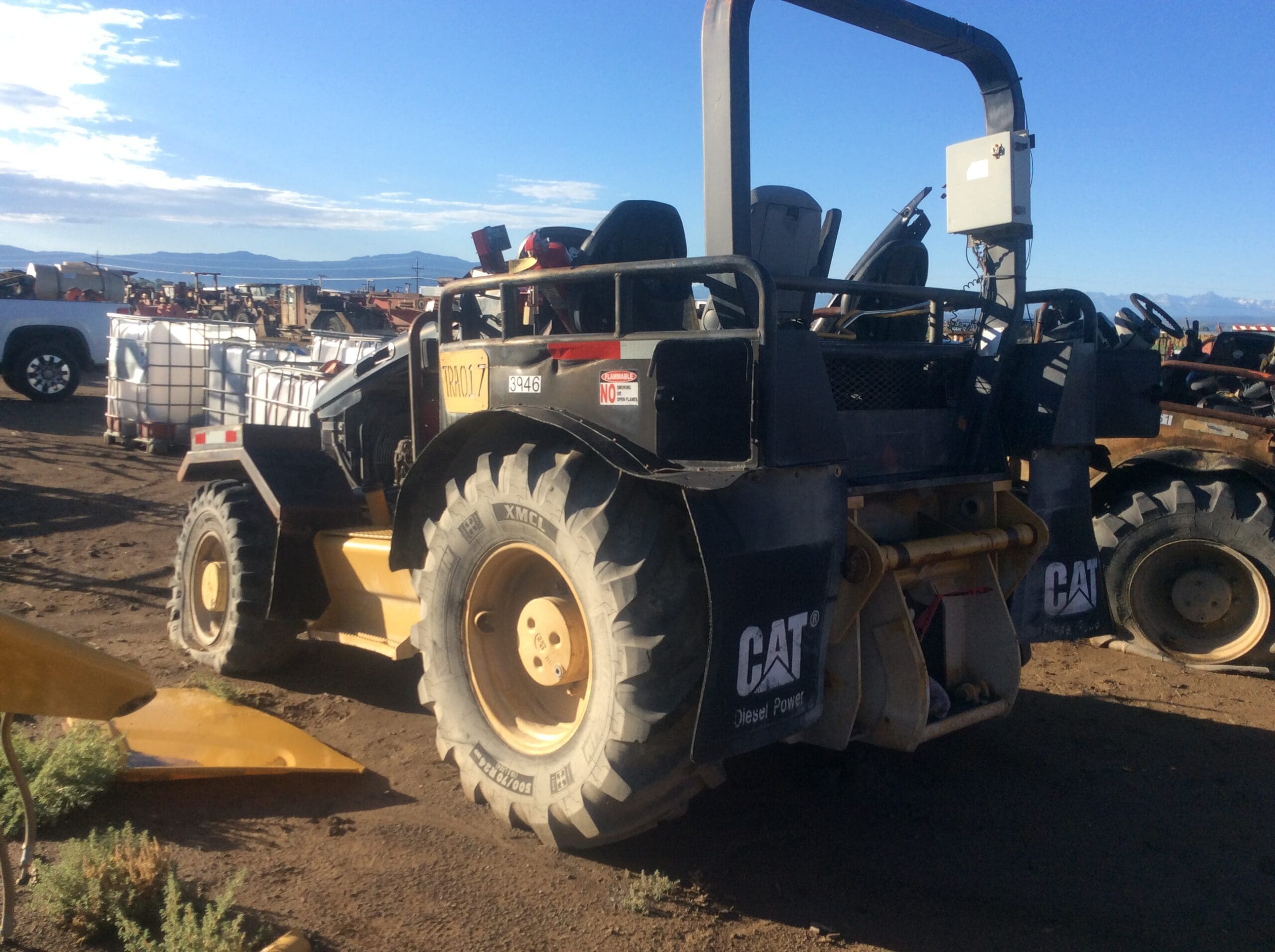

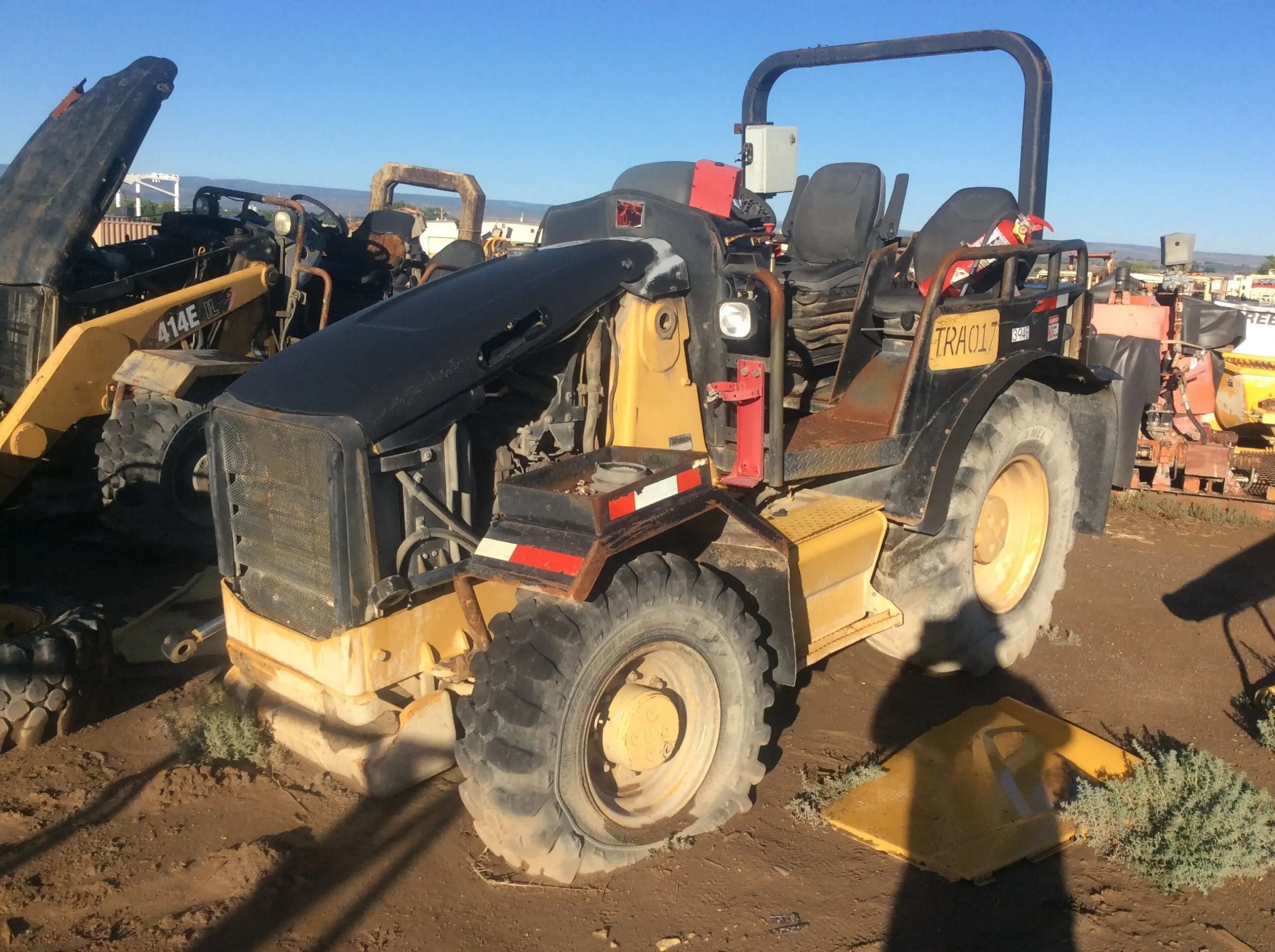

The Caterpillar 414E is a mid-range industrial tractor with an 89-hp rated output, placing it centrally within its class for power. This model was manufactured in 2007. Its power source is a 4-cylinder diesel liquid-cooled engine, which drives through a four-wheel drive system with a hydrostatic transmission. It is designed for use on areas of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
89 hp
Catalogue coverage
Variants represented
2
Richest spec table
35 rows
Recorded power
89 hp
Transmissions
4-speed
Production years
2007-2007
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerCaterpillarReference
Industrial tractorReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Engine
Caterpillar 4.4L 4-cyl dieselReference
Engine66.4 kWReference
Caterpillar 3054CReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke105 x 127 mmReference
Power66.4 kWReference
Torque297.0 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Coolant capacity15.9 LReference
Transmission
4-speedReference
TransmissionPower-ShuttleReference
Gears4 forward and reverseReference
Oil capacity18.5 LReference
Capacities
Fuel143.8 LReference
PTO & Hydraulics
Hydraulic system79.5 LReference
Typeclosed center load sensingReference
Capacity79.5 LReference
Pressure227.0 barReference
Total flow131.7 lpmReference
Dimensions
Wheelbase220 cmReference
Length675 cmReference
Height (cab)276 cmReference
Height (exhaust)274 cmReference
Ground clearance30 cmReference
Caterpillar 414E attachments
front-end loaderReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
