Backhoe Loader · 2000Unverified

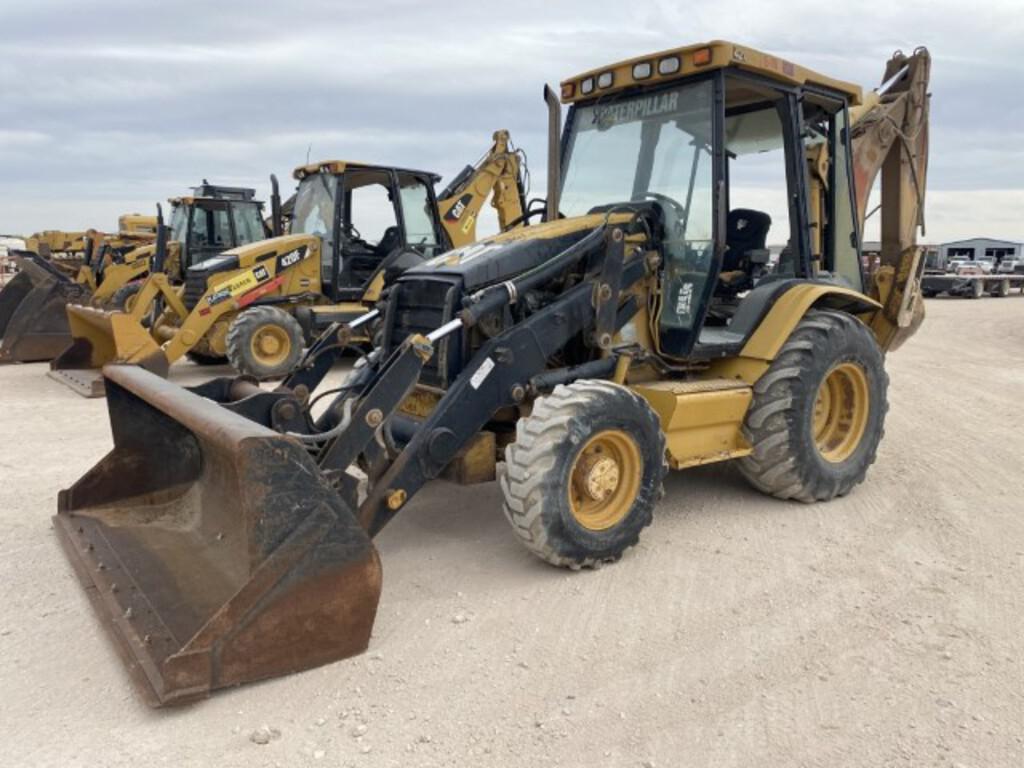

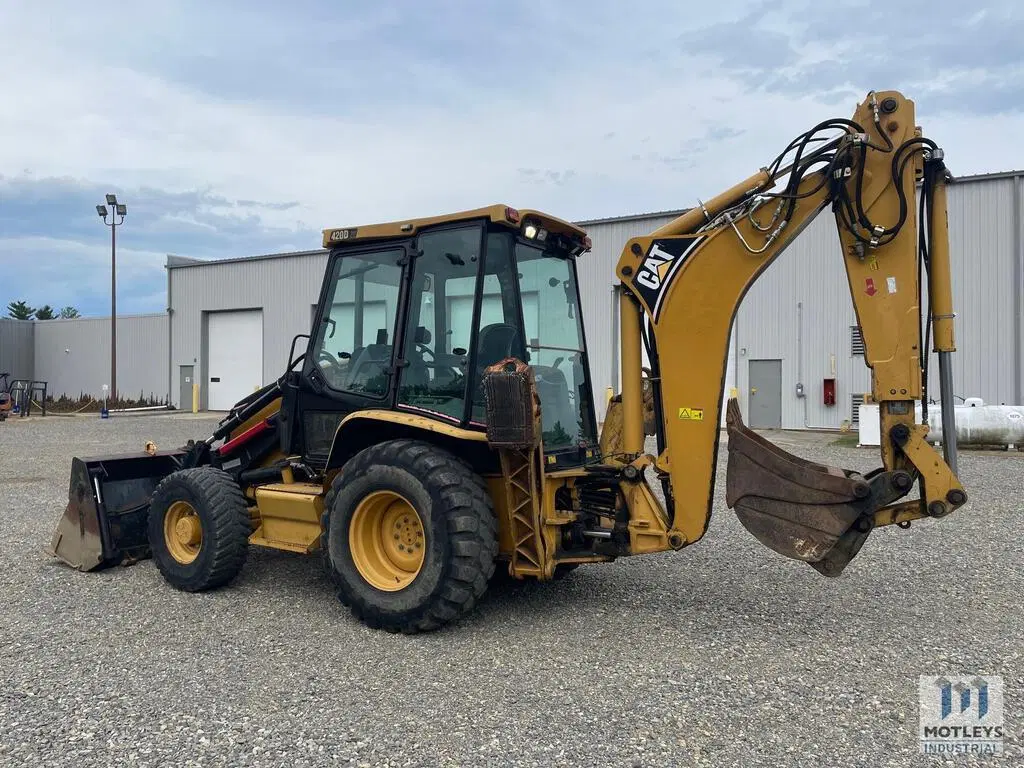

Caterpillar 420D
Caterpillar 420D — Backhoe loader tractor · 88 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
88 hp
Weight
7151 kg
Hover a source tag to verify
Overview
ManufacturerCaterpillarReference
Backhoe loader tractorReference
Two- or four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Four-post ROPS/FOPS. Cab optional with available air-conditioning.Reference
Engine
Caterpillar 4.4L 4-cyl dieselReference
Fuel tank127.9 LReference
Engine (gross)65.6 kWReference
Engine63.4 kWReference
Caterpillar 3054TReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke105 x 127 mmReference
Power63.4 kWReference
Power (gross)65.6 kWReference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Transmission
4-speed power shuttleReference
5-speedReference
Typepower shuttleReference
Gears4 forward and reverseReference
TransmissionAuto-ShiftReference
Gears5 forward and 3 reverseReference
PTO & Hydraulics
Typeclosed center load-sensingReference
Pressure227.5 barReference
Total flow163.1 lpmReference
Dimensions
Wheelbase210 cmReference
Weight7151 kgReference
Front tire11Lx16Reference
Rear tire19.5x24Reference
2WD Industrial front11Lx16Reference
4WD Industrial front12.5/80x18Reference
Industrial rear19.5x24Reference
4WD Industrial front240/80R18Reference
Length697 cmReference
Width235 cmReference
Height358 cmReference
Height (cab)277 cmReference
Ground clearance29 cmReference
Operating7151 kgReference
Max front axle3167 kgReference
Max rear axle9261 kgReference
Backhoe & Loader
Dig depth172.8 to 216.9 inchesReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps90Reference
Charging volts12Reference
Battery CCA700Reference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
Caterpillar Backhoe
Backhoe typeCaterpillar BackhoeReference
Digging depth438 cmReference
Digging depth (extended stick)550 cmReference
Reach from pivot564 cmReference
Reach from pivot (extended stick)667 cmReference
Loading height361 cmReference
Loading height (extended stick)417 cmReference
Bucket force6674 kgReference
Bucket force (extended stick)6617 kgReference
Capacities
Max capacity9800 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
