Backhoe Loader · 1990Unverified

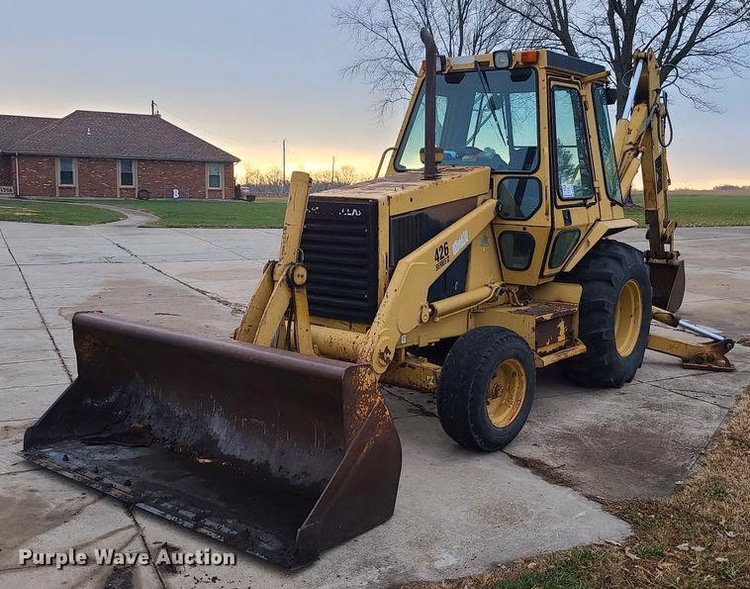

Caterpillar 426 II
Caterpillar 426 II — Backhoe loader tractor · 75 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
75 hp
Weight
14626 to 14890 pounds
Hover a source tag to verify
Overview
ManufacturerCaterpillarReference
Backhoe loader tractorReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD optionalReference
Engine
Perkins 3.9L 4-cyl dieselReference
Engine (gross)55.9 kWReference
Engine52.2 kWReference
Perkins 4.236Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke98 x 127 mmReference
Power52.2 kWReference
Power (gross)55.9 kWReference
Rated RPM2400Reference
StarterelectricReference
Starter volts12Reference
Oil capacity6.1 LReference
Coolant capacity18.1 LReference
Transmission
4-speedReference
TransmissionFully synchromeshReference
Gears4 forward and reverseReference
Oil capacity8.6 LReference
Capacities
Fuel106.0 LReference
Front axle6.4 LReference
Rear axle15.9 LReference
PTO & Hydraulics
Hydraulic system82.1 LReference
TypeVariableReference
Capacity82.1 LReference
Pressure186.0 barReference
Total flow138.2 lpmReference
Dimensions
Wheelbase210 cmReference
Weight14626 to 14890 poundsReference
Length691 cmReference
Width226 cmReference
Height374 cmReference
Height (cab)271 cmReference
Operating weight6634 kgReference
Operating weight6754 kgReference
Ground clearance29 cmReference
Backhoe & Loader
Dig depth184.6 to 236.4 inchesReference
Electrical
Charging systemalternatorReference
Charging amps52Reference
Attachment overview
Front-end loaderReference
BackhoeReference
Caterpillar Backhoe
Backhoe typeCaterpillar BackhoeReference
Digging depth468 cmReference
Digging depth (extended stick)600 cmReference
Reach from pivot (extended stick)704 cmReference
Loading height364 cmReference
Loading height (extended stick)433 cmReference
Bucket force4736 kgReference
Bucket force (extended stick)4654 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
