Backhoe Loader · 2004Unverified

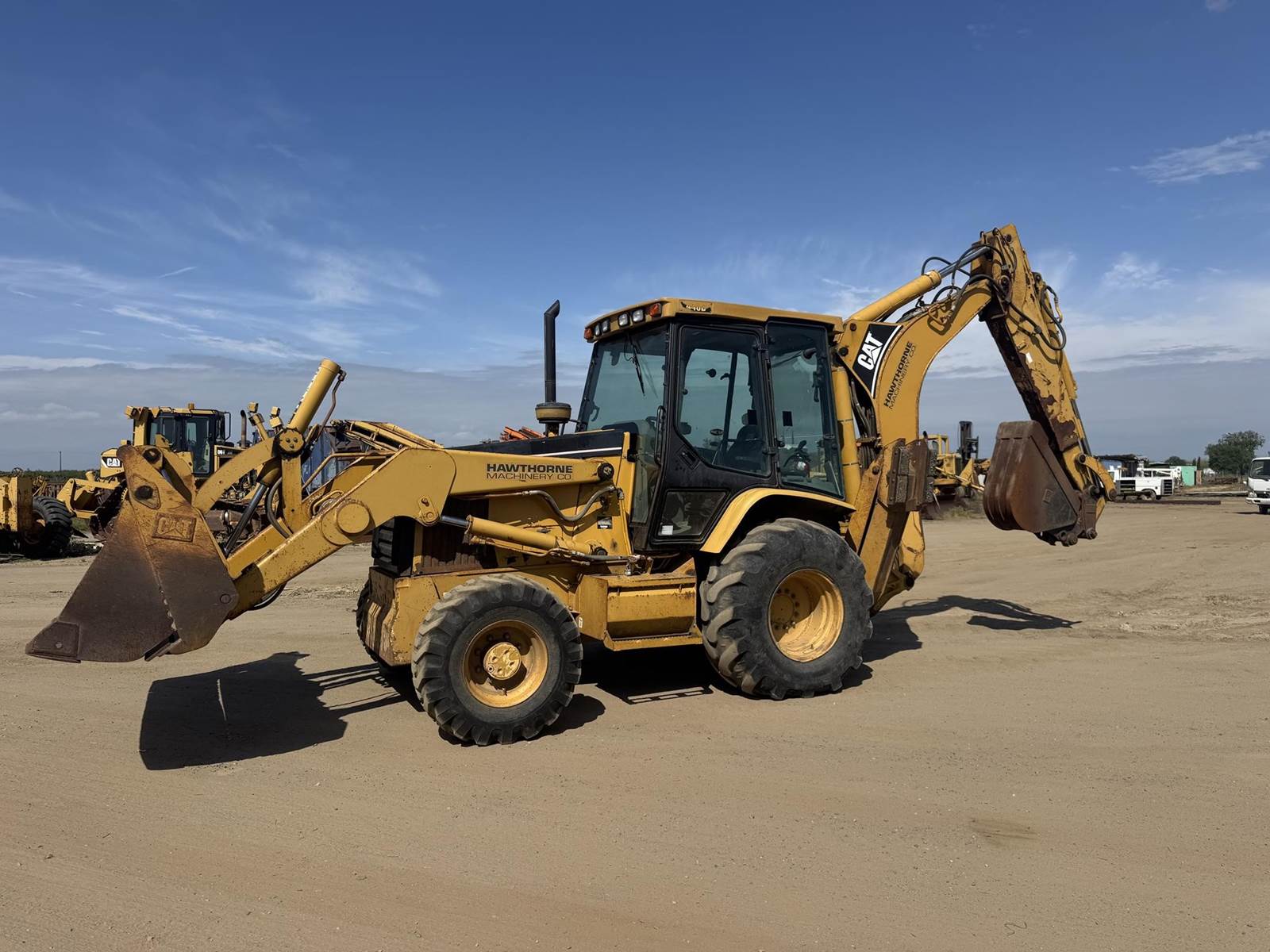

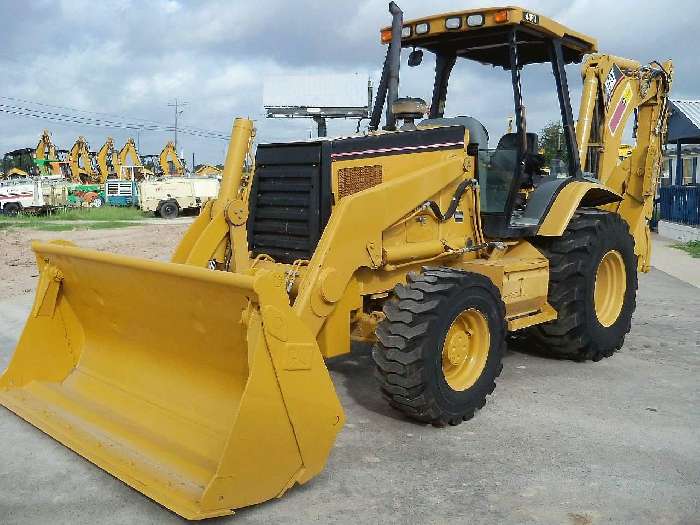

Caterpillar 446D
Caterpillar 446D — Backhoe loader tractor · 110 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
110 hp
Weight
8920 kg
Hover a source tag to verify
Overview
ManufacturerCaterpillarReference
Backhoe loader tractorReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD optionalReference
Steeringhydrostatic powerReference
Differential hydraulic wet disc brakesReference
ROPS canopy, optional cab with heat and A/CReference
Engine
Caterpillar 4.4L 4-cyl dieselReference
Engine (gross)82.0 kWReference
Engine76.1 kWReference
Caterpillar 3114 DITReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke105 x 127 mmReference
Power76.1 kWReference
Power (gross)82.0 kWReference
Torque455.6 NmReference
Torque RPM1400Reference
Starter typeelectricReference
Oil capacity11.0 LReference
Coolant capacity29.9 LReference
Transmission
5-speedReference
TransmissionAuto-ShiftReference
Gears5 forward and 3 reverseReference
Oil capacity26.1 LReference
Capacities
Fuel124.9 LReference
PTO & Hydraulics
Hydraulic system155.2 LReference
Typeclosed centerReference
Capacity155.2 LReference
Pressure244.8 barReference
Total flow177.9 lpmReference
Dimensions
Wheelbase223 cmReference
Weight8920 kgReference
Front tire14.5/75x16.1Reference
Industrial front14.5/75x16.1Reference
Industrial front21Lx24Reference
Length795 cmReference
Width248 cmReference
Operating weight8920 kgReference
Max weight11501 kgReference
Backhoe & Loader
Dig depth202 to 254 inchesReference
Dump angle114 cmReference
Electrical
Charging systemalternatorReference
Charging amps90Reference
Batteries2Reference
Battery CCA750Reference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
Caterpillar Backhoe
Backhoe typeCaterpillar BackhoeReference
Digging depth513 cmReference
Digging depth (retracted stick)520 cmReference
Digging depth (extended stick)645 cmReference
2-Foot flat digging depth508 cmReference
2-Foot flat digging depth (retracted stick)518 cmReference
2-Foot flat digging depth (extended stick)642 cmReference
Reach from pivot662 cmReference
Reach from pivot (retracted stick)670 cmReference
Reach from pivot (extended stick)789 cmReference
Loading height439 cmReference
Loading height (retracted stick)439 cmReference
Loading height (extended stick)505 cmReference
Bucket force7688 kgReference
Bucket force (retracted stick)7439 kgReference
Bucket force (extended stick)7439 kgReference
Dipperstick force5184 kgReference
Dipperstick force (retracted stick)5107 kgReference
Dipperstick force (extended stick)3753 kgReference
Caterpillar 446D Height
419 cmReference
Cab289 cmReference
Exhaust297 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
