Backhoe Loader · 2007Unverified
Caterpillar 450E

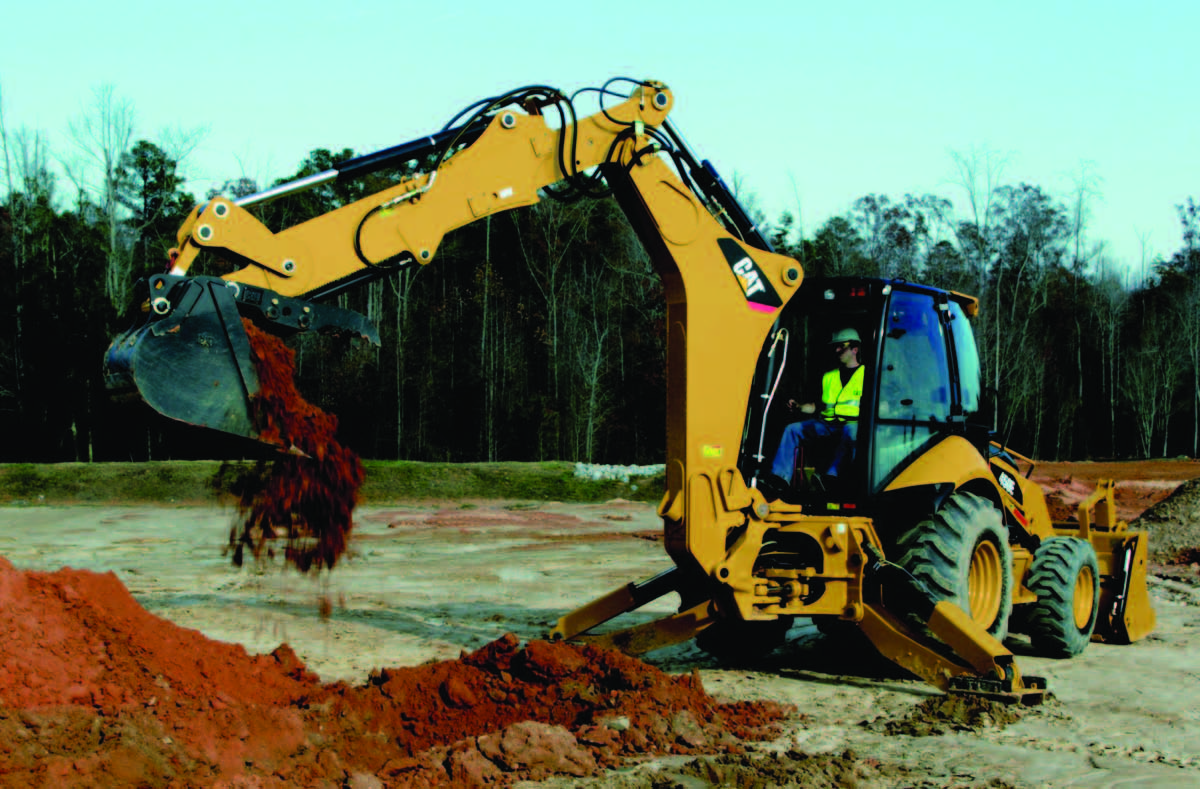

Caterpillar 450E — Backhoe loader tractor · 137 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
137 hp
Weight
24141 to 24145 pounds
Hover a source tag to verify
Overview
ManufacturerCaterpillarReference
Backhoe loader tractorReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
ROPS canopy, optional cab with heat and A/CReference
Engine
Caterpillar 4.4L 4-cyl dieselReference
Engine (gross)102.0 kWReference
Engine92.5 kWReference
Caterpillar C4.4Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke105 x 127 mmReference
Power92.5 kWReference
Power (gross)102.0 kWReference
Rated RPM1800Reference
Torque515.3 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Oil capacity7.3 LReference
Coolant capacity24.2 LReference
Transmission
5-speedReference
TransmissionAuto-ShiftReference
Gears5 forward and 3 reverseReference
Oil capacity21.2 LReference
Capacities
Fuel145.3 LReference
Front axle9.5 LReference
Rear axle16.4 LReference
Max capacity12299 kgReference
PTO & Hydraulics
Hydraulic system100.3 LReference
Typeclosed center load sensingReference
Capacity100.3 LReference
Pressure262.0 barReference
Pressure244.8 barReference
Total flow194.2 lpmReference
Dimensions
Wheelbase220 cmReference
Weight24141 to 24145 poundsReference
Front tire15-19.5Reference
Rear tire21L-24Reference
Industrial front15-19.5Reference
Industrial rear21L-24Reference
Length792 cmReference
Width243 cmReference
Ground clearance33 cmReference
Shipping10950 kgReference
Operating10952 kgReference
Backhoe & Loader
Dig depth207 to 256 inchesReference
Dump angle109 cmReference
Electrical
Charging systemalternatorReference
Charging amps120Reference
Batteries2Reference
Battery CCA880Reference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
Caterpillar Backhoe
Backhoe typeCaterpillar BackhoeReference
Digging depth525 cmReference
Digging depth (retracted stick)525 cmReference
Digging depth (extended stick)650 cmReference
2-Foot flat digging depth523 cmReference
2-Foot flat digging depth (retracted stick)523 cmReference
2-Foot flat digging depth (extended stick)647 cmReference
8-Foot flat digging depth492 cmReference
8-Foot flat digging depth (retracted stick)492 cmReference
8-Foot flat digging depth (extended stick)622 cmReference
Reach from pivot670 cmReference
Reach from pivot (retracted stick)670 cmReference
Reach from pivot (extended stick)787 cmReference
Loading height444 cmReference
Loading height (retracted stick)444 cmReference
Loading height (extended stick)518 cmReference
Bucket force8049 kgReference
Bucket force (retracted stick)8049 kgReference
Bucket force (extended stick)8049 kgReference
Dipperstick force5343 kgReference
Dipperstick force (retracted stick)5415 kgReference
Dipperstick force (extended stick)4086 kgReference
Caterpillar 450E Height
414 cmReference
416 cmReference
Cab287 cmReference
Exhaust284 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
