Tractor · 1986Unverified

Caterpillar AG6

Name: Caterpillar AG6
Brand: Caterpillar

Caterpillar AG6 — Agricultural Crawler tractor · 240 hp. Reference specifications; pending source verification.

The Caterpillar AG6 is a tractor model with a rating of approximately 240 hp, positioning it at the more powerful end of its class. It was manufactured from 1986 to 1993. The tractor is equipped with a 6-cylinder turbocharged diesel liquid-cooled engine, combined with a tracked undercarriage and a 6-speed gearbox. Its listed operating weight is 14787 kg, suitable for operations covering 1,500+ acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

240 hp

Weight

14787 kg

Catalogue coverage

Variants represented

Richest spec table

47 rows

Recorded power

240 hp

Recorded weight

14787 kg

Transmissions

6-speed sliding gear

Production years

1986-1993

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaterpillarReference

Agricultural Crawler tractorReference

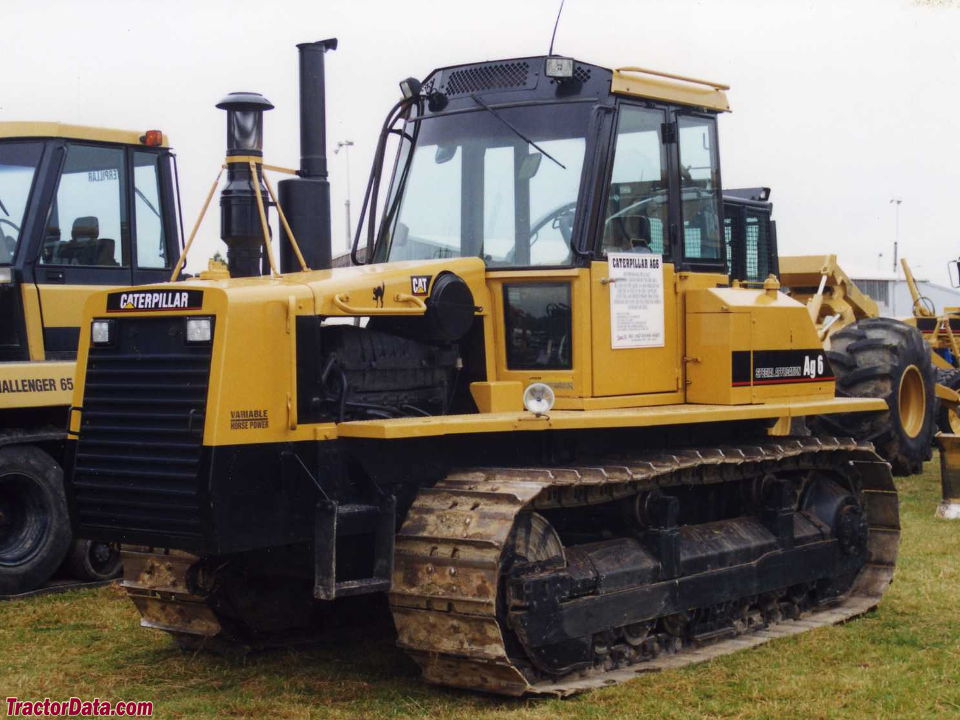

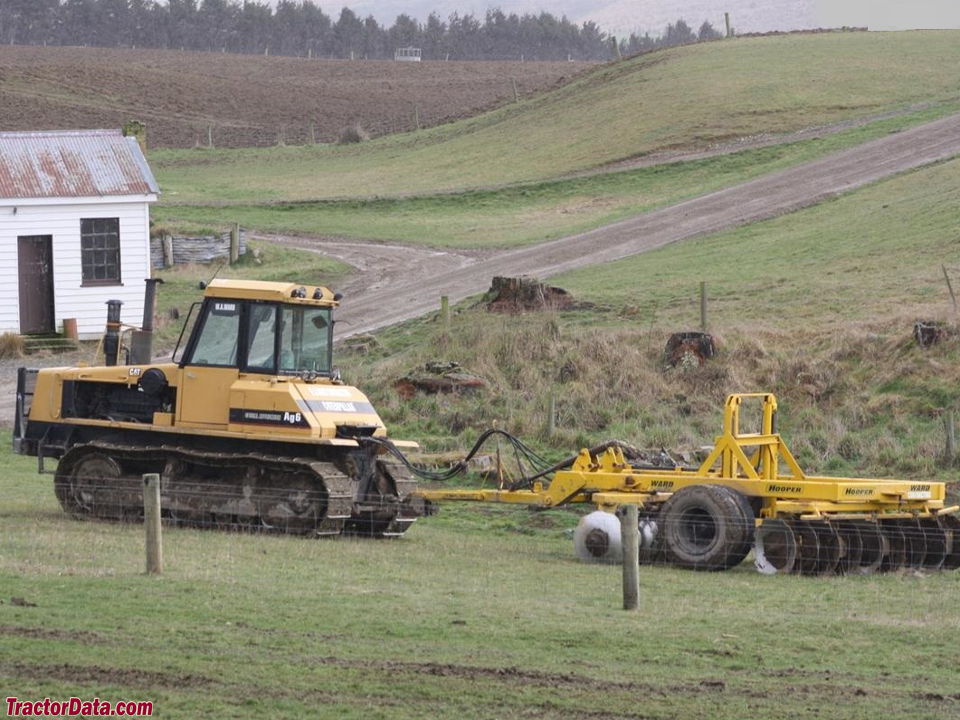

The Caterpillar AG6 was an agricultural crawler based on the D6. This steel-tracked crawler was primarily sold in the western United States. It was moderately successful, but was overshadowed by the then-new rubber-tracked Challenger tractors.Reference

DrivecrawlerReference

Steeringhydraulic wet disc clutchesReference

Wet hydraulic band brakesReference

Cab standard with air-conditioning.Reference

Engine

Caterpillar 10.5L 6-cyl dieselReference

Engine179.0 kWReference

Drawbar (claimed)140.2 kWReference

Caterpillar 3306Reference

turbocharged aftercooled dieselReference

6-cylinderReference

liquid-cooledReference

Displacement10.5 LReference

Bore/Stroke121 x 152 mmReference

Power179.0 kWReference

Fuel systemdirect injectionReference

Air cleanerdry dual elementReference

Rated RPM2200Reference

StarterelectricReference

Starter volts24Reference

Oil capacity27.4 LReference

Coolant capacity45.4 LReference

Transmission

6-speed sliding gearReference

Typesliding gearReference

Gears6 forward and reverseReference

Clutchwet discReference

Capacities

Fuel624.5 LReference

PTO & Hydraulics

Hydraulic system66.2 LReference

Typeclosed center load sensingReference

Capacity66.2 LReference

Pressure162.0 barReference

Valves5Reference

Pump flow99.9 lpmReference

Dimensions

Weight14787 kgReference

24-inch tracksReference

Length513 cmReference

Width248 cmReference

Clearance (drawbar)33 cmReference

Gauge187 cmReference

Electrical

Charging systemalternatorReference

Charging amps50Reference

Caterpillar AG6 Tracks

Width60 cmReference

Caterpillar AG6 Height

Hood204 cmReference

Cab317 cmReference

Exhaust347 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
