Industrial Tractor · 2020Unverified

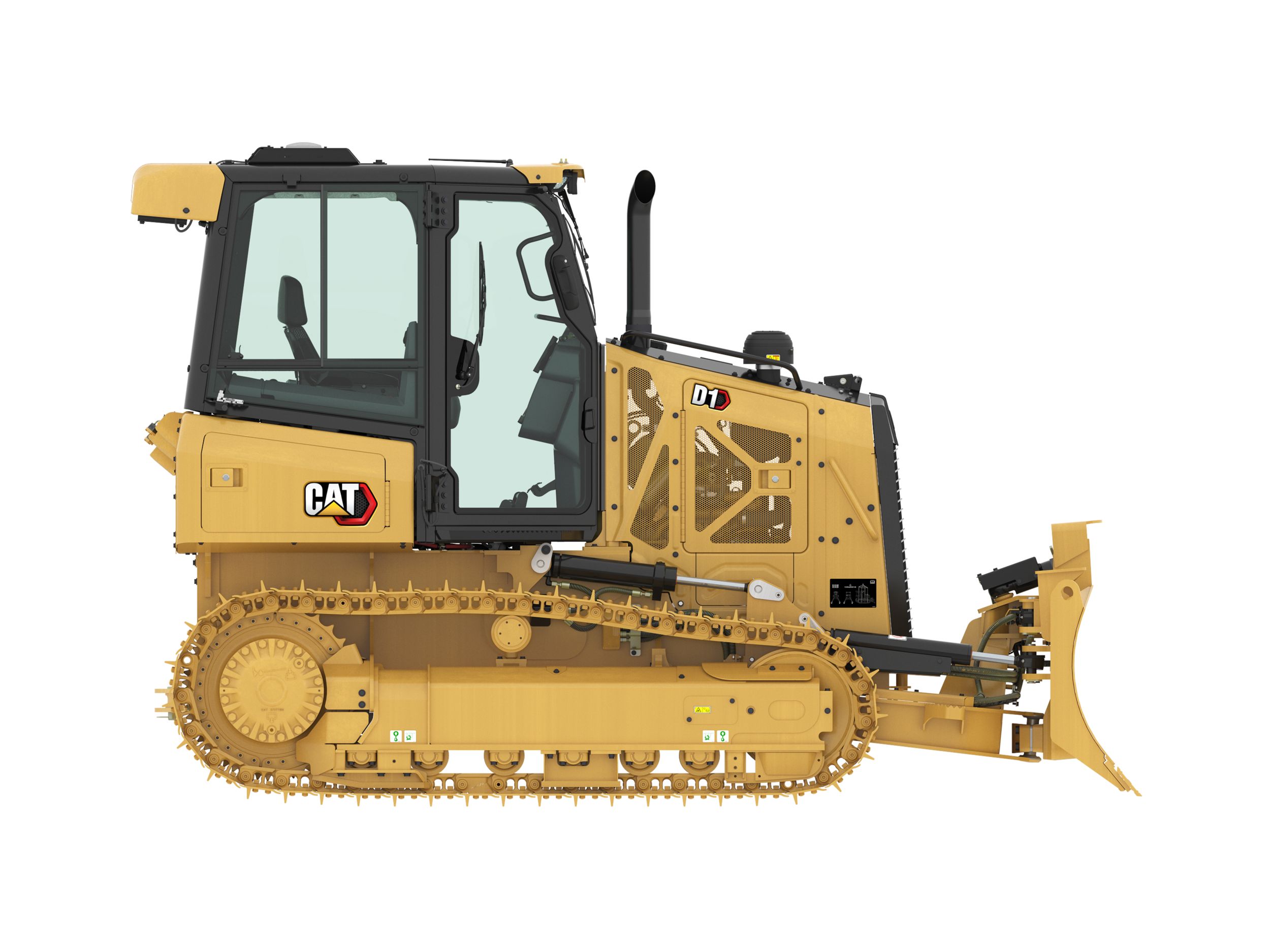

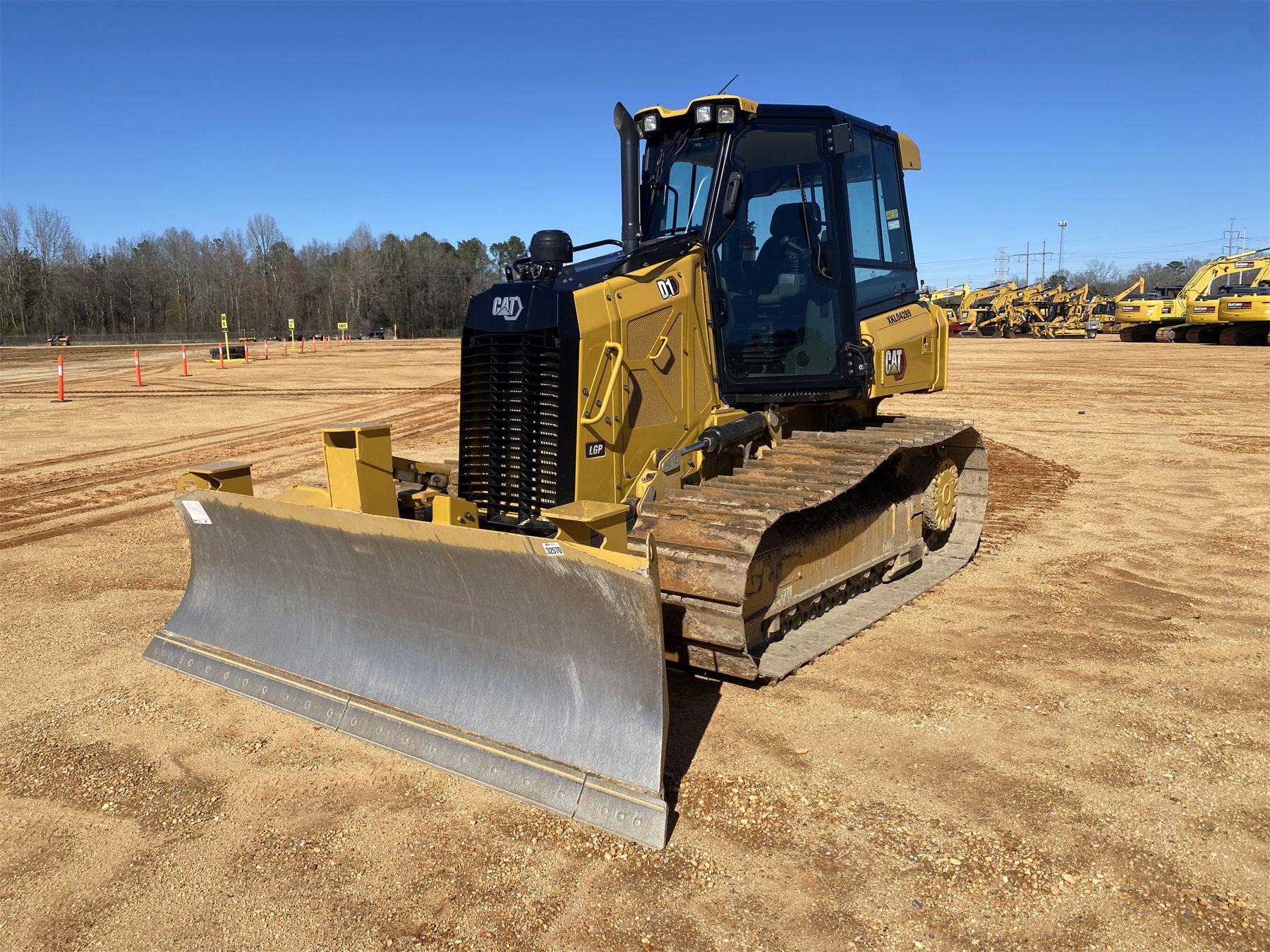

Caterpillar D1
Caterpillar D1 — Bulldozer · 80 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
80 hp
Weight
17855 to 19295 pounds
Hover a source tag to verify
Overview
ManufacturerCaterpillarReference
BulldozerReference
DrivecrawlerReference
Four-post ROPS. Cab available with air-conditioning.Reference
Engine
Caterpillar 3.6L 4-cyl dieselReference
Engine (net)59.7 kWReference
Caterpillar C3.6Reference
turbocharged aftercooled dieselReference
4-cylinderReference
liquid-cooled inlineReference
Displacement3.6 LReference
Bore/Stroke99 x 119 mmReference
Power (net)59.7 kWReference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Oil capacity10.5 LReference
Coolant capacity19.0 LReference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverseReference
Oil capacity90.0 LReference
Capacities
Fuel194.9 LReference
PTO & Hydraulics
Hydraulic system90.1 LReference
Capacity90.1 LReference
Pressure206.0 barReference
Pump flow65.1 lpmReference
Dimensions
Weight17855 to 19295 poundsReference
16-inch tracksReference
Length329 cmReference
Dozer length426 cmReference
LGP dozer length425 cmReference
Width189 cmReference
Width235 cmReference
Width241 cmReference
Height (cab)276 cmReference
Gauge149 cmReference
Gauge172 cmReference
Gauge185 cmReference
Operating8099 kgReference
Operating8545 kgReference
Operating8752 kgReference
Caterpillar D1 attachments
bladeReference
Electrical
Charging systemalternatorReference
Charging amps150Reference
Batteries2Reference
Battery CCA1000Reference
Battery volts12Reference
Caterpillar D1 Tracks
Width40 cmReference
Length on ground226 cmReference
Area on ground1.8 m²Reference
Ground pressure0.4 barReference
LGP width63 cmReference
LGP length on ground226 cmReference
LGP area on ground2.9 m²Reference
LGP ground pressure0.3 barReference
LGP width76 cmReference
LGP area on ground3.4 m²Reference
LGP ground pressure0.3 barReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
