Industrial Tractor · 1996Unverified

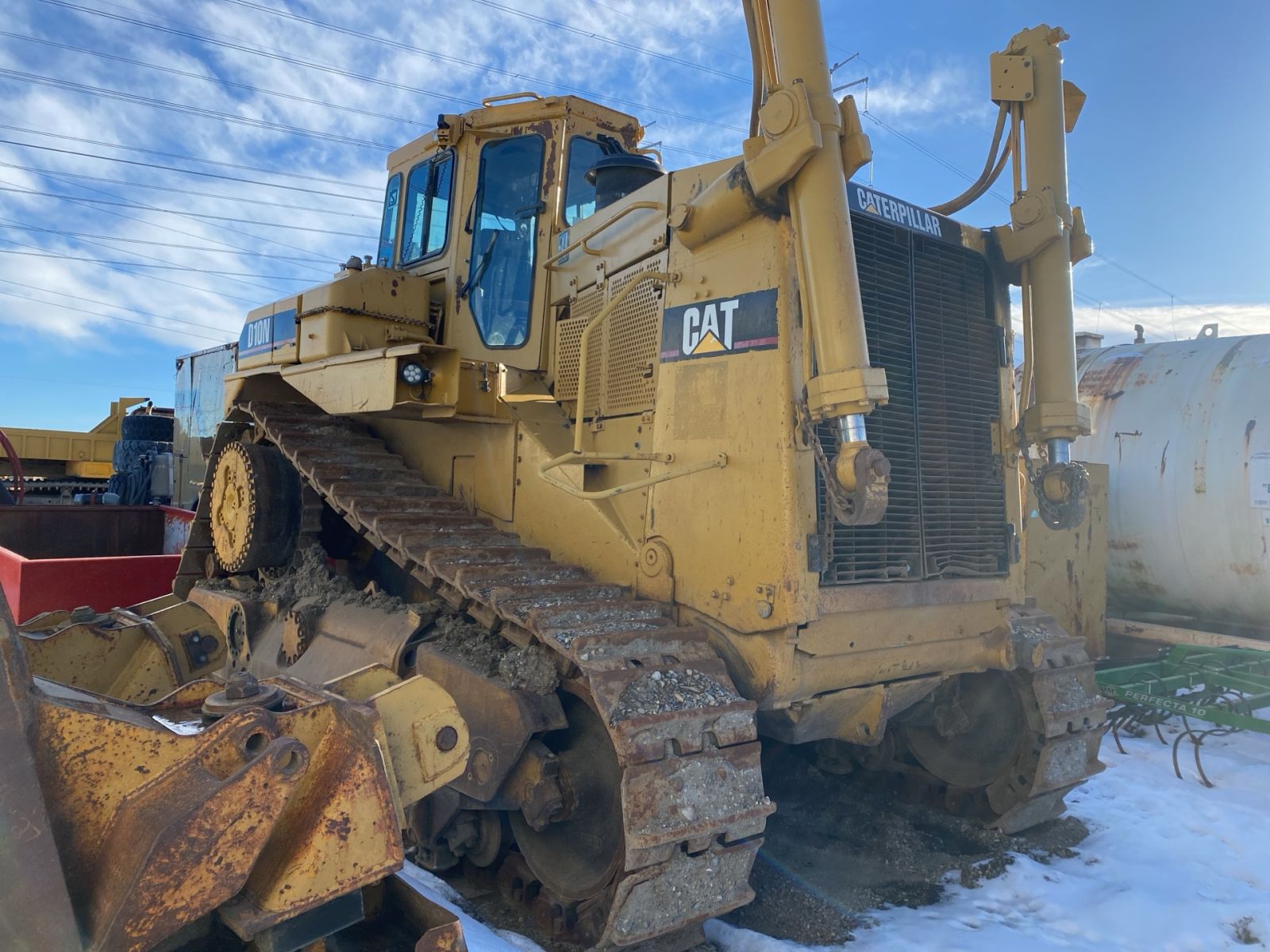

Caterpillar D10R
Caterpillar D10R — Bulldozer · 613 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
613 hp
Weight
104000 to 146675 pounds
Hover a source tag to verify
Overview
ManufacturerCaterpillarReference
BulldozerReference
DrivecrawlerReference
Final drivestwo-stage planetaryReference
Cab standard with available air-conditioning.Reference
Engine
Caterpillar 27.0L 12-cyl dieselReference
Engine (gross)457.1 kWReference
Engine (net)425.0 kWReference
Caterpillar 3412EReference
turbocharged aftercooled dieselReference
12-cylinderReference
liquid-cooled V-12Reference
Displacement27.0 LReference
Bore/Stroke137 x 152 mmReference
Power (net)425.0 kWReference
Power (gross)457.1 kWReference
Fuel systemdirect injectionReference
Rated RPM1900Reference
StarterelectricReference
Starter volts24Reference
Oil capacity60.0 LReference
Coolant capacity132.0 LReference
Transmission
3-speed power shiftReference
Typepower shiftReference
Gears3 forward and reverseReference
Oil capacity189.3 LReference
Capacities
Fuel1109.0 LReference
PTO & Hydraulics
Hydraulic system107.9 LReference
Capacity107.9 LReference
Pressure193.1 barReference
Pump flow408.0 lpmReference
Dimensions
Weight104000 to 146675 poundsReference
24-inch tracksReference
Length533 cmReference
10SU dozer length750 cmReference
10U dozer length775 cmReference
Width370 cmReference
Shipping weight47174 kgReference
Operating weight66531 kgReference
Gauge254 cmReference
Caterpillar D10R attachments
bladeReference
Electrical
Charging systemalternatorReference
Charging amps75Reference
Batteries2Reference
Battery volts12Reference
Caterpillar D10R Tracks
Width60 cmReference
Length on ground388 cmReference
Area on ground4.7 m²Reference
Width71 cmReference
Area on ground5.5 m²Reference
Width80 cmReference
Area on ground6.2 m²Reference
Caterpillar D10R Height
Hood320 cmReference
ROPS434 cmReference
Exhaust454 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
