Tractor · 1985Unverified

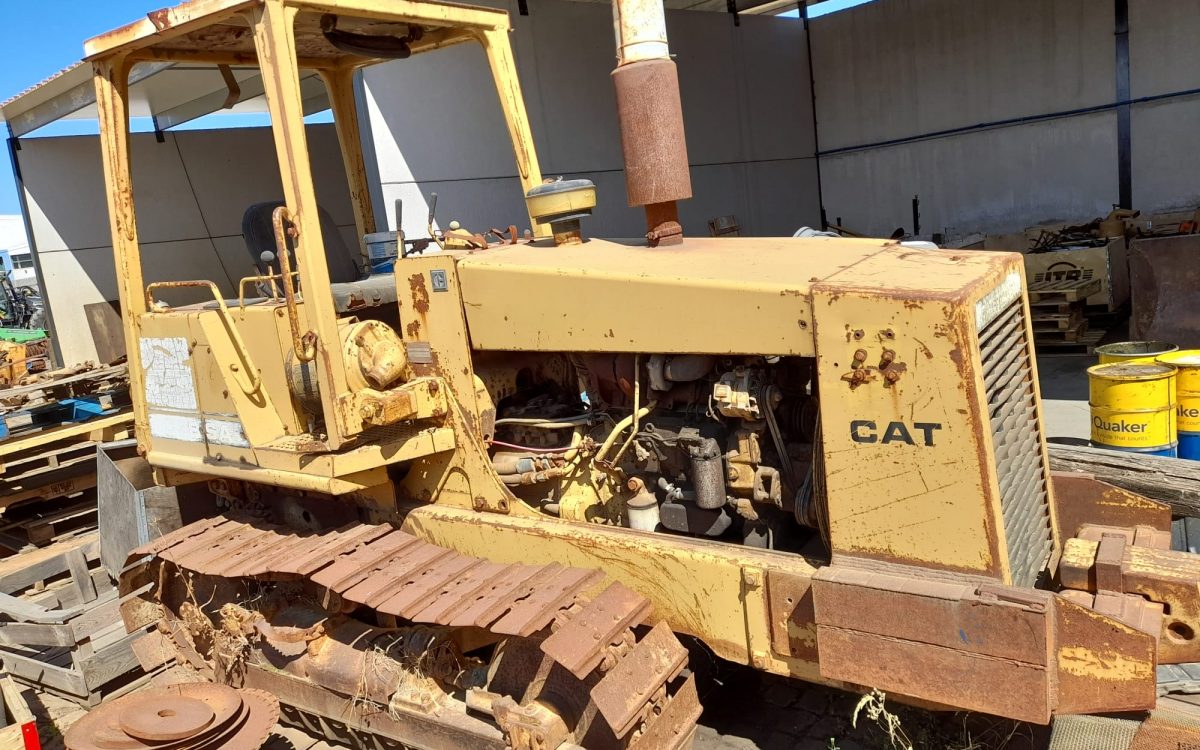

Caterpillar D3B SA Special Application
Caterpillar D3B SA Special Application — Agricultural Crawler tractor · 101 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
101 hp
Weight
13314 to 13846 pounds
Hover a source tag to verify
Overview
ManufacturerCaterpillarReference
Agricultural Crawler tractorReference
DrivecrawlerReference
Four-post ROPS.Reference
Engine
Caterpillar 5.2L 4-cyl dieselReference
Engine (net)75.3 kWReference
Drawbar (claimed)60.4 kWReference
Caterpillar 3204Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooled inlineReference
Displacement5.2 LReference
Bore/Stroke114 x 127 mmReference
Power (net)75.3 kWReference
Fuel systemdirect injectionReference
Rated RPM2400Reference
StarterelectricReference
Starter volts12Reference
Oil capacity12.1 LReference
Coolant capacity25.7 LReference
Transmission
5-speed gearReference
TypegearReference
Gears5 forward and 4 reverseReference
Oil capacity15.1 LReference
Capacities
Fuel204.4 LReference
PTO & Hydraulics
Hydraulic system57.2 LReference
Typeopen centerReference
Capacity57.2 LReference
Pressure172.4 barReference
Pump flow53.0 lpmReference
Dimensions
Weight13314 to 13846 poundsReference
12-inch tracksReference
Length370 cmReference
Shipping weight6039 kgReference
Operating weight6280 kgReference
Gauge152 cmReference
Electrical
Charging systemalternatorReference
Charging amps55Reference
Battery volts12Reference
Caterpillar D3B SA Tracks
Width30 cmReference
Length on ground182 cmReference
Area on ground1.1 m²Reference
Width50 cmReference
Area on ground1.9 m²Reference
Caterpillar D3B SA Height
Hood157 cmReference
ROPS271 cmReference
Exhaust271 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
