Industrial Tractor · 2001Unverified

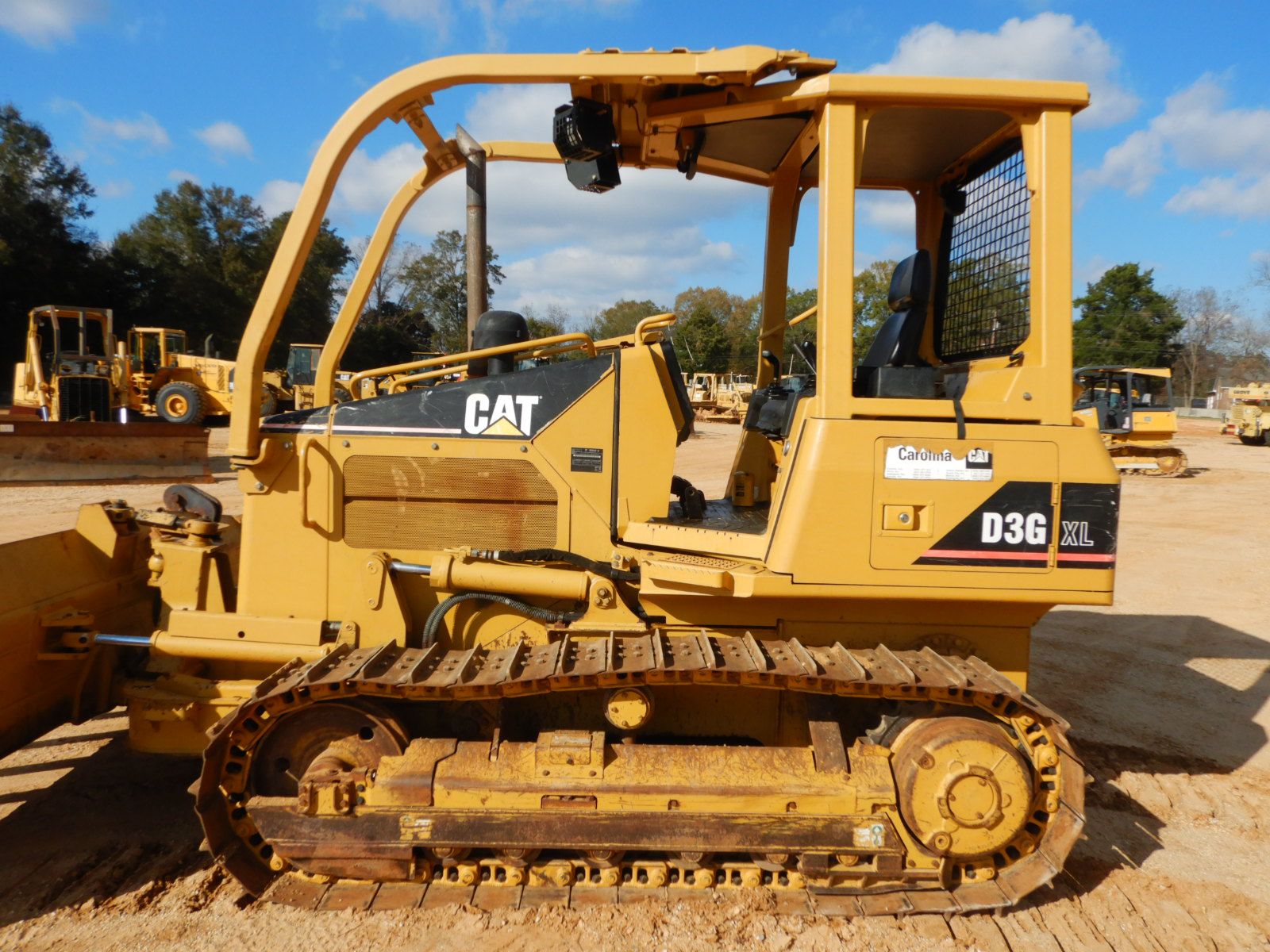

Caterpillar D3G
Caterpillar D3G — Bulldozer · 77 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
77 hp
Weight
16227 to 17160 pounds
Hover a source tag to verify
Overview
ManufacturerCaterpillarReference
BulldozerReference
DrivecrawlerReference
Final drivesdouble-reduction outboard planetaryReference
Four-post ROPS. Cab available with air-conditioning.Reference
Engine
Caterpillar 5.0L 6-cyl dieselReference
Engine (gross)57.4 kWReference
Engine (net)52.2 kWReference
Caterpillar 3046TReference
turbocharged dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement5.0 LReference
Bore/Stroke94 x 119 mmReference
Power (net)52.2 kWReference
Power (gross)57.4 kWReference
Fuel systemdirect injectionReference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Oil capacity13.0 LReference
Coolant capacity20.9 LReference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverseReference
Capacities
Fuel165.0 LReference
PTO & Hydraulics
Hydraulic system45.4 LReference
Capacity45.4 LReference
Pressure200.0 barReference
Pump flow60.9 lpmReference
Dimensions
Weight16227 to 17160 poundsReference
16-inch tracksReference
Length310 cmReference
VPAT dozer length402 cmReference
LGP dozer length401 cmReference
Width185 cmReference
Width231 cmReference
Height (ROPS)271 cmReference
Height (exhaust)276 cmReference
Operating weight7360 kgReference
Operating weight7783 kgReference
Gauge144 cmReference
Gauge167 cmReference
Caterpillar D3G attachments
bladeReference
Electrical
Charging systemalternatorReference
Charging amps110Reference
Batteries2Reference
Battery volts12Reference
Caterpillar D3G Tracks
XL width40 cmReference
XL length on ground205 cmReference
XL area on ground1.7 m²Reference
XL ground pressure0.4 barReference
LGP width63 cmReference
LGP length on ground205 cmReference
LGP area on ground2.6 m²Reference
LGP ground pressure0.3 barReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
