Tractor · 1966Unverified

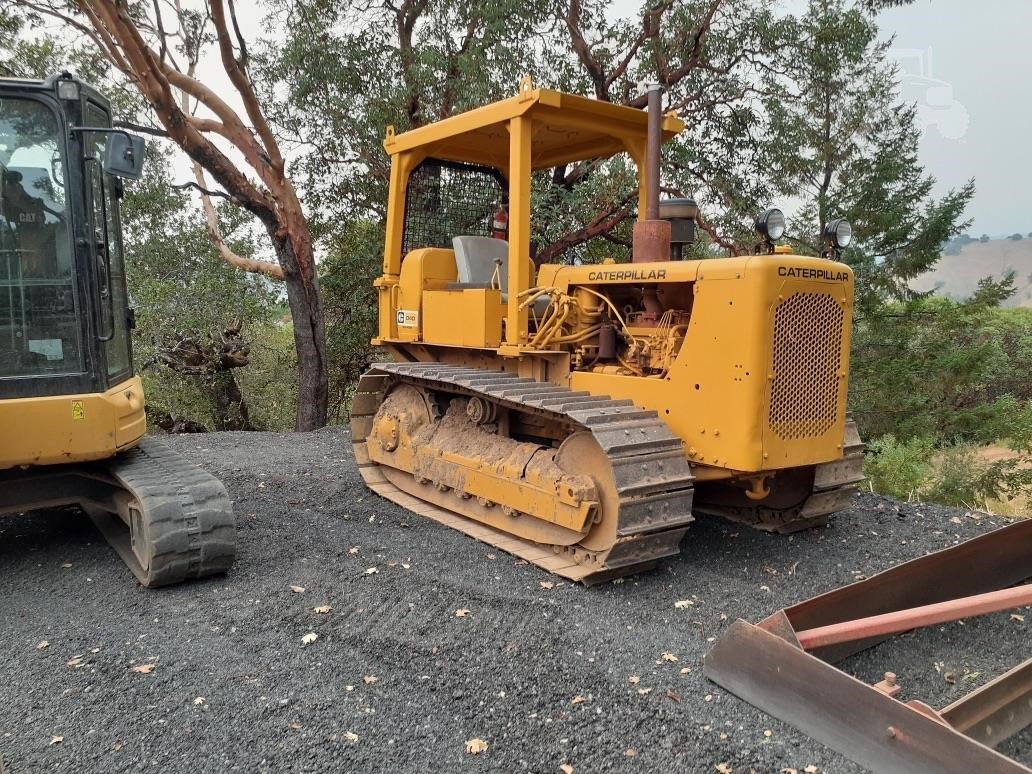

Caterpillar D4D SA Special Application
Caterpillar D4D SA Special Application — Agricultural Crawler tractor · 74 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
74 hp
Weight
6894 kg
Hover a source tag to verify
Overview
ManufacturerCaterpillarReference
Agricultural Crawler tractorReference
DrivecrawlerReference
Open operator station. Four-post ROPS and cab available.Reference
Engine
Caterpillar 7.0L 4-cyl dieselReference
Fuel tank247.9 LReference
Engine (gross)55.2 kWReference
Drawbar (claimed)50.7 kWReference
Caterpillar D330Reference
dieselReference
4-cylinderReference
liquid-cooled inlineReference
Displacement7.0 LReference
Bore/Stroke121 x 152 mmReference
Power (gross)55.2 kWReference
Rated RPM2000Reference
StarterelectricReference
Starter volts24Reference
Oil capacity18.9 LReference
Coolant capacity30.3 LReference
Transmission
5-speed gearReference
TypegearReference
Gears5 forward and reverseReference
Oil capacity22.7 LReference
PTO & Hydraulics
Typeopen centerReference
Pressure86.2 barReference
Pump flow75.7 lpmReference
Dimensions
Weight6894 kgReference
16-inch tracksReference
Length335 cmReference
Width198 cmReference
Height (steering wheel)185 cmReference
Height (exhaust)243 cmReference
Shipping weight6894 kgReference
Gauge152 cmReference
Electrical
Charging systemalternatorReference
Charging amps19Reference
Battery volts12Reference
Caterpillar D4D SA Tracks
Width40 cmReference
Length on ground184 cmReference
Area on ground1.5 m²Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
