Industrial Tractor · 2020Unverified

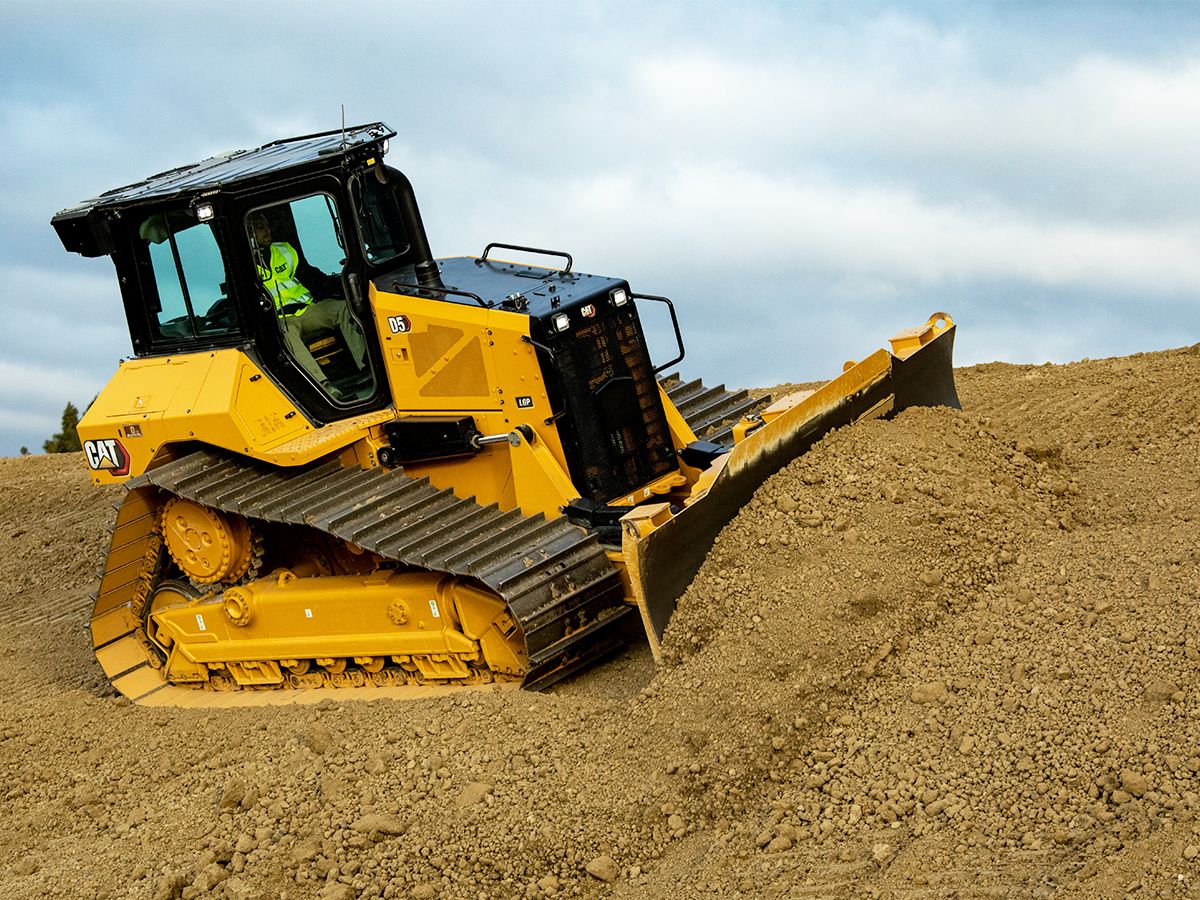

Caterpillar D5
Caterpillar D5 — Bulldozer · 202 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
202 hp
Weight
37368 to 37875 pounds
Hover a source tag to verify
Overview
ManufacturerCaterpillarReference
BulldozerReference
DrivecrawlerReference
Cab standard with air-conditioning.Reference
Engine
Caterpillar 7.0L 6-cyl dieselReference
Engine (gross)150.6 kWReference
Engine (net)126.8 kWReference
Caterpillar C7.1Reference
dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement7.0 LReference
Bore/Stroke105 x 135 mmReference
EmissionsTier IVReference
Power (net)126.8 kWReference
Power (gross)150.6 kWReference
Rated RPM1770Reference
StarterelectricReference
Starter volts24Reference
Oil capacity18.2 LReference
Coolant capacity40.9 LReference
Transmission
3-speed power shiftReference
Typepower shiftReference
Gears3 forward and reverseReference
Oil capacity160.1 LReference
Capacities
Fuel314.9 LReference
Exhaust fluid (DEF)15.9 LReference
PTO & Hydraulics
Hydraulic system79.9 LReference
Typeload sensing variable displacementReference
Capacity79.9 LReference
Pressure250.0 barReference
Pump flow126.8 lpmReference
Steering flow164.6 lpmReference
Steering press.450.0 barReference
Dimensions
Weight37368 to 37875 poundsReference
24-inch tracksReference
Length464 cmReference
Length501 cmReference
6SU dozer length508 cmReference
6VAPT dozer length500 cmReference
Width249 cmReference
Width299 cmReference
Height (cab)308 cmReference
Shipping weight16950 kgReference
Operating weight17180 kgReference
PA55 winch1276 kgReference
Ripper1393 kgReference
Gauge188 cmReference
Gauge215 cmReference
Caterpillar D5 attachments
bladeReference
Electrical
Charging systemalternatorReference
Charging amps95Reference
Batteries2Reference
Battery CCA950Reference
Battery volts12Reference
Caterpillar D5 Tracks
Width60 cmReference
Length on ground256 cmReference
Area on ground3.5 m²Reference
Ground pressure0.5 barReference
LGP width83 cmReference
LGP length on ground311 cmReference
LGP area on ground5.8 m²Reference
LGP ground pressure0.3 barReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
