Tractor · 1967Unverified

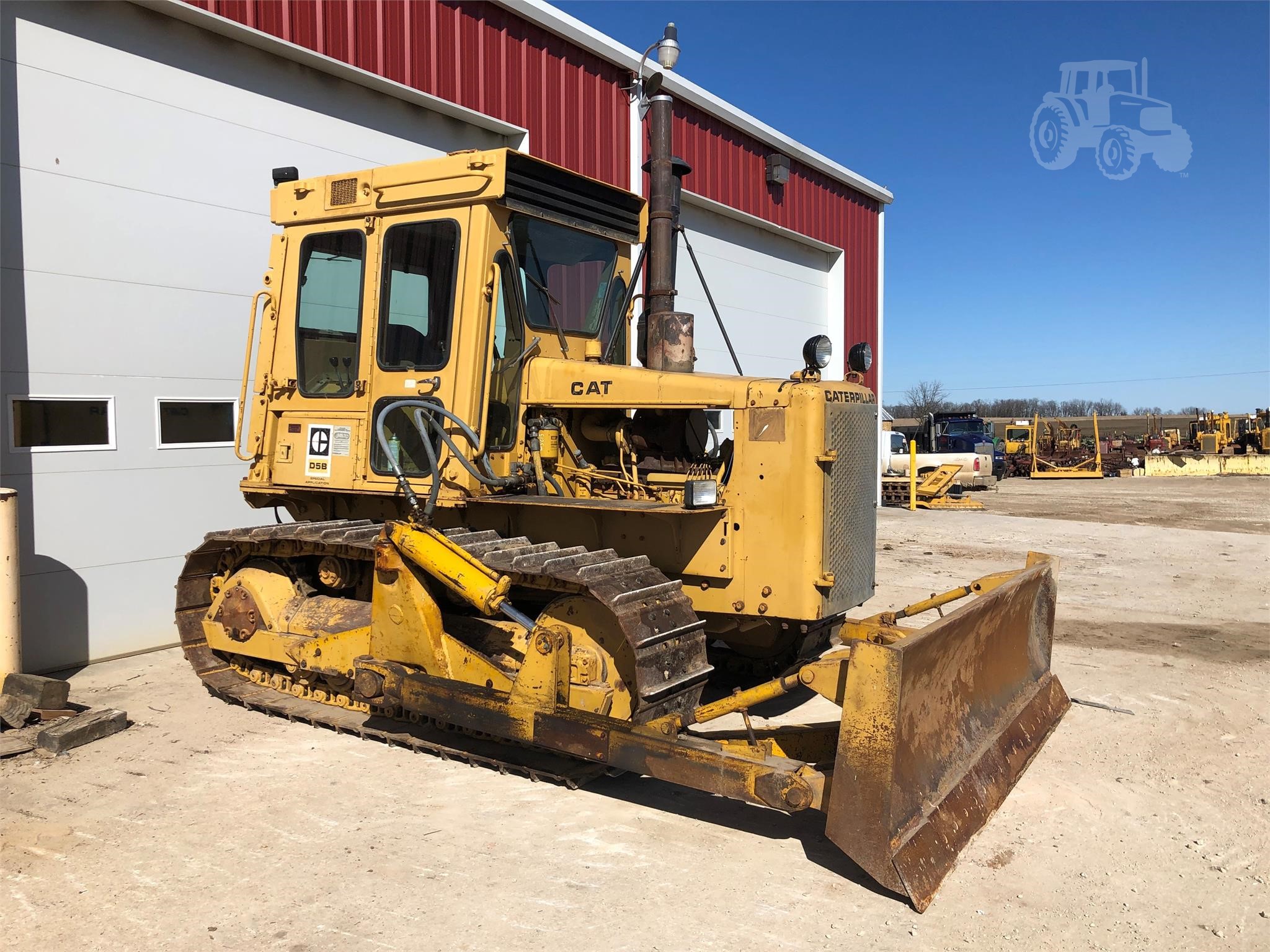

Caterpillar D5 SA Special Application

Name: Caterpillar D5 SA Special Application
Brand: Caterpillar

Caterpillar D5 SA Special Application — Agricultural Crawler tractor · 90 hp. Reference specifications; pending source verification.

The Caterpillar D5 SA Special Application is a tractor model with a rated power of 90 hp, situated in the mid-range of its class. This model was manufactured from 1967 to 1976 and is equipped with a 6-cylinder turbocharged diesel liquid-cooled engine, which drives a tracked undercarriage with a 5-speed gearbox. The D5 SA Special Application has an operating weight of 9253 kg, and it is suitable for operations covering an area of 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

90 hp

Weight

9253 kg

Catalogue coverage

Variants represented

Richest spec table

43 rows

Recorded power

90 hp

Recorded weight

9253 kg

Transmissions

5-speed gear

Production years

1967-1976

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaterpillarReference

Agricultural Crawler tractorReference

DrivecrawlerReference

Engine

Caterpillar 8.6L 6-cyl dieselReference

Drawbar (claimed)67.1 kWReference

Caterpillar D333Reference

turbocharged dieselReference

6-cylinderReference

liquid-cooled inlineReference

Displacement8.6 LReference

Bore/Stroke114 x 140 mmReference

Rated RPM1900Reference

StarterelectricReference

Starter volts24Reference

Oil capacity23.7 LReference

Coolant capacity41.6 LReference

Transmission

5-speed gearReference

TypegearReference

Gears5 forward and 3 reverseReference

Oil capacity46.4 LReference

Capacities

Fuel295.2 LReference

PTO & Hydraulics

Hydraulic system43.5 LReference

Typeopen centerReference

Capacity43.5 LReference

Pressure86.2 barReference

Pressure137.9 barReference

Pump flow123.8 lpmReference

Pump flow-unknown-Reference

Pump flow87.1 lpmReference

Dimensions

Weight9253 kgReference

18-inch tracksReference

Length388 cmReference

Width237 cmReference

Height (steering wheel)208 cmReference

Height (exhaust)264 cmReference

Shipping weight9253 kgReference

Gauge187 cmReference

Electrical

Charging systemalternatorReference

Charging amps50Reference

Battery volts12Reference

Caterpillar D5 SA Tracks

Width45 cmReference

Length on ground217 cmReference

Area on ground2.0 m²Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
