Industrial Tractor · 2012Unverified

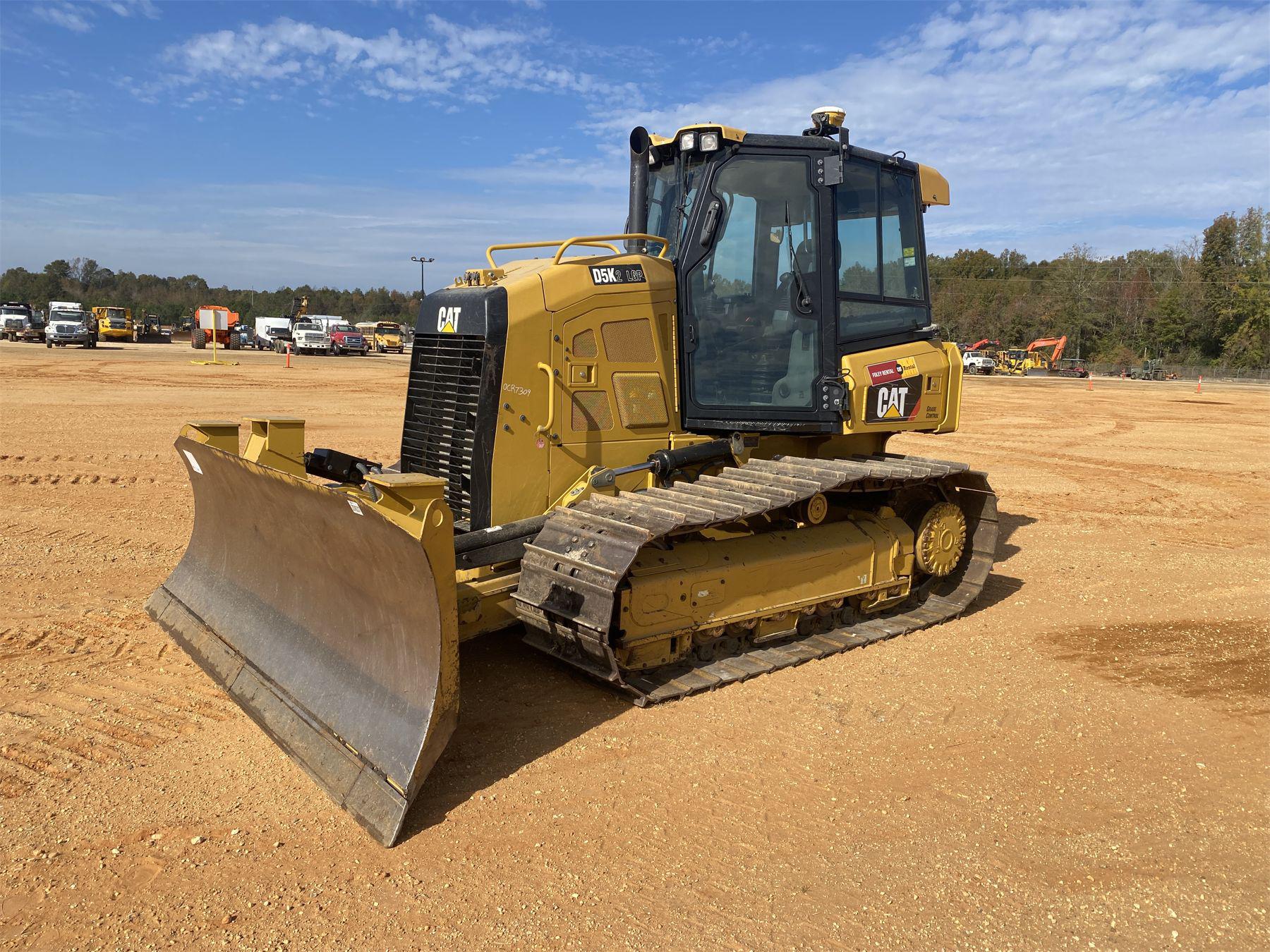

Caterpillar D5K2
Caterpillar D5K2 — Model year 2012-20152015-2020 · 104 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
104 hp
Weight
9314 kg
Hover a source tag to verify
Overview
ManufacturerCaterpillarReference
BulldozerReference
DrivecrawlerReference
Final drivesdouble-reduction planetaryReference
Cab standard with air-conditioning.Reference
Engine
Caterpillar 4.4L 4-cyl dieselReference
Engine (net)77.6 kWReference
Caterpillar C4.4Reference
turbocharged aftercooled dieselReference
4-cylinderReference
liquid-cooled inlineReference
Displacement4.4 LReference
Bore/Stroke105 x 127 mmReference
EmissionsInterim Tier IVReference
Power (net)77.6 kWReference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Oil capacity11.0 LReference
Coolant capacity22.4 LReference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverseReference
Capacities
Fuel194.9 LReference
PTO & Hydraulics
Hydraulic system59.4 LReference
Capacity59.4 LReference
Pressure206.0 barReference
Pump flow73.4 lpmReference
Dimensions
Weight9314 kgReference
20-inch tracksReference
Length326 cmReference
VPAT dozer length432 cmReference
XL Width211 cmReference
LGP Width241 cmReference
Height (cab)272 cmReference
Operating weight9314 kgReference
Winch610 kgReference
Ripper554 kgReference
Gauge160 cmReference
LGP Gauge175 cmReference
Caterpillar D5K2 attachments
bladeReference
Electrical
Charging systemalternatorReference
Charging amps120Reference
Batteries2Reference
Battery CCA900Reference
Battery volts12Reference
Caterpillar D5K2 Tracks
XL width50 cmReference
XL length on ground231 cmReference
XL area on ground2.4 m²Reference
XL ground pressure0.4 barReference
LGP width66 cmReference
LGP length on ground231 cmReference
LGP area on ground3.0 m²Reference
LGP ground pressure0.3 barReference
LGP width76 cmReference
LGP area on ground3.6 m²Reference
LGP ground pressure0.3 barReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
