Industrial Tractor · 2003Unverified

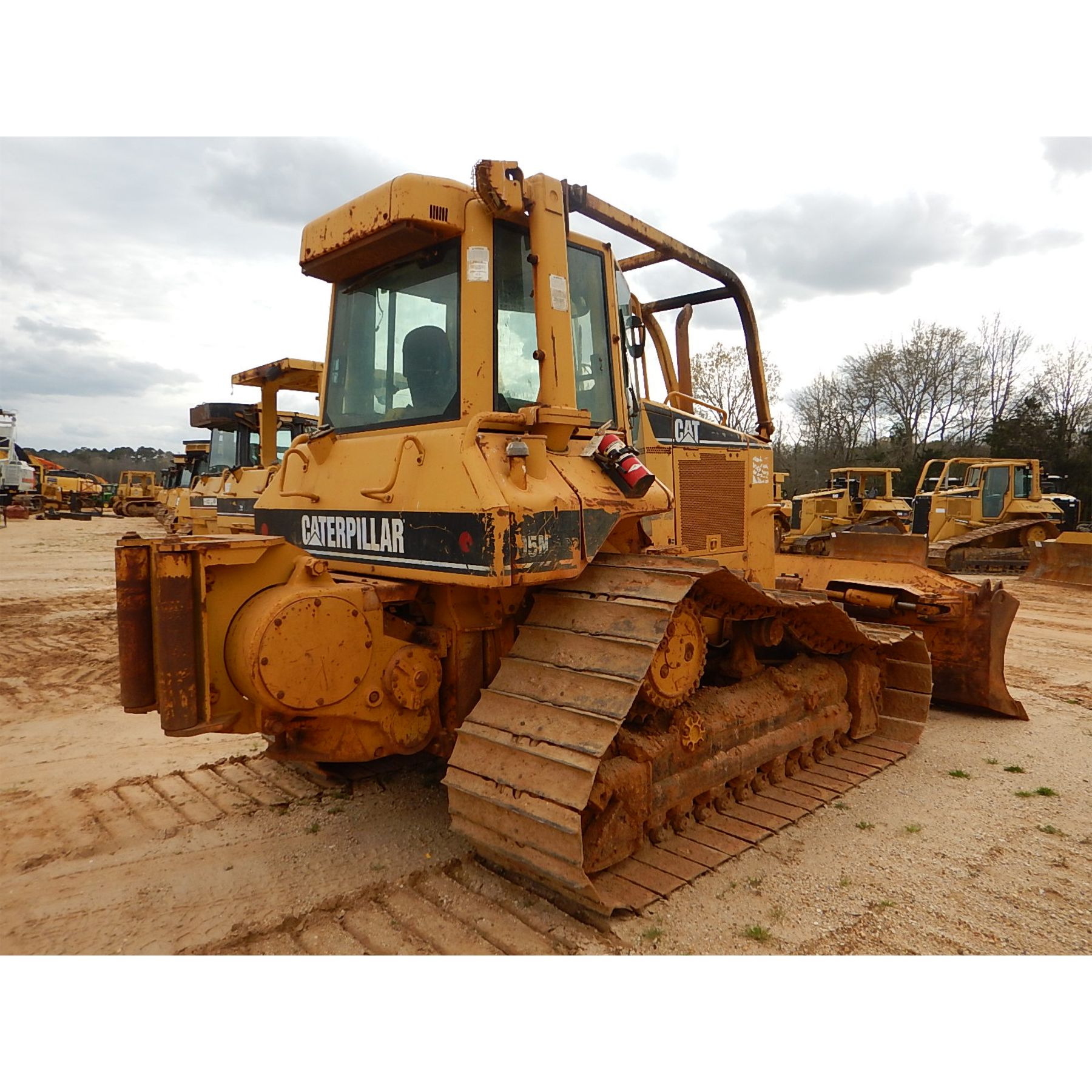

Caterpillar D5N

Name: Caterpillar D5N
Brand: Caterpillar

Caterpillar D5N — Bulldozer · 115 hp. Reference specifications; pending source verification.

The Caterpillar D5N is an industrial tractor with an engine rating of 115 hp, placing it in the middle of its class for power output. Manufactured from 2003 to 2006, this model features a 6-cylinder turbocharged diesel liquid-cooled engine. The tractor is equipped with a tracked undercarriage and powershift transmission, and its listed weight is 12817 kg. It is suited for tasks involving areas of approximately 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

115 hp

Weight

12817 kg

Catalogue coverage

Variants represented

Richest spec table

52 rows

Recorded power

115 hp

Recorded weight

12817 kg

Transmissions

3-speed power shift

Production years

2003-2006

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaterpillarReference

BulldozerReference

DrivecrawlerReference

Two-post ROPS. Cab available with air-conditioning.Reference

Engine

Caterpillar 7.2L 6-cyl dieselReference

Engine (net)85.8 kWReference

Caterpillar 3126BReference

turbocharged aftercooled dieselReference

6-cylinderReference

liquid-cooled inlineReference

Displacement7.2 LReference

Bore/Stroke110 x 127 mmReference

EmissionsTier IIReference

Power (net)85.8 kWReference

Fuel systemdirect injectionReference

Rated RPM2100Reference

StarterelectricReference

Starter volts24Reference

Coolant capacity47.7 LReference

Transmission

3-speed power shiftReference

Typepower shiftReference

Gears3 forward and reverseReference

Capacities

Fuel257.0 LReference

PTO & Hydraulics

Hydraulic system29.1 LReference

Typeload sensingReference

Capacity29.1 LReference

Dimensions

Weight12817 kgReference

22-inch tracksReference

Length355 cmReference

LGP Length370 cmReference

5VPAT dozer length457 cmReference

Width233 cmReference

LGP Width276 cmReference

Height (ROPS)299 cmReference

Height (exhaust)279 cmReference

Operating weight12817 kgReference

PA55 winch1180 kgReference

Gauge177 cmReference

LGP Gauge200 cmReference

Caterpillar D5N attachments

bladeReference

Electrical

Charging systemalternatorReference

Charging amps70Reference

Batteries2Reference

Battery volts12Reference

Caterpillar D5N Tracks

XL width55 cmReference

XL length on ground238 cmReference

XL area on ground2.7 m²Reference

XL ground pressure0.5 barReference

LGP width76 cmReference

LGP length on ground261 cmReference

LGP area on ground4.0 m²Reference

LGP ground pressure0.3 barReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
