Industrial Tractor · 2019Unverified

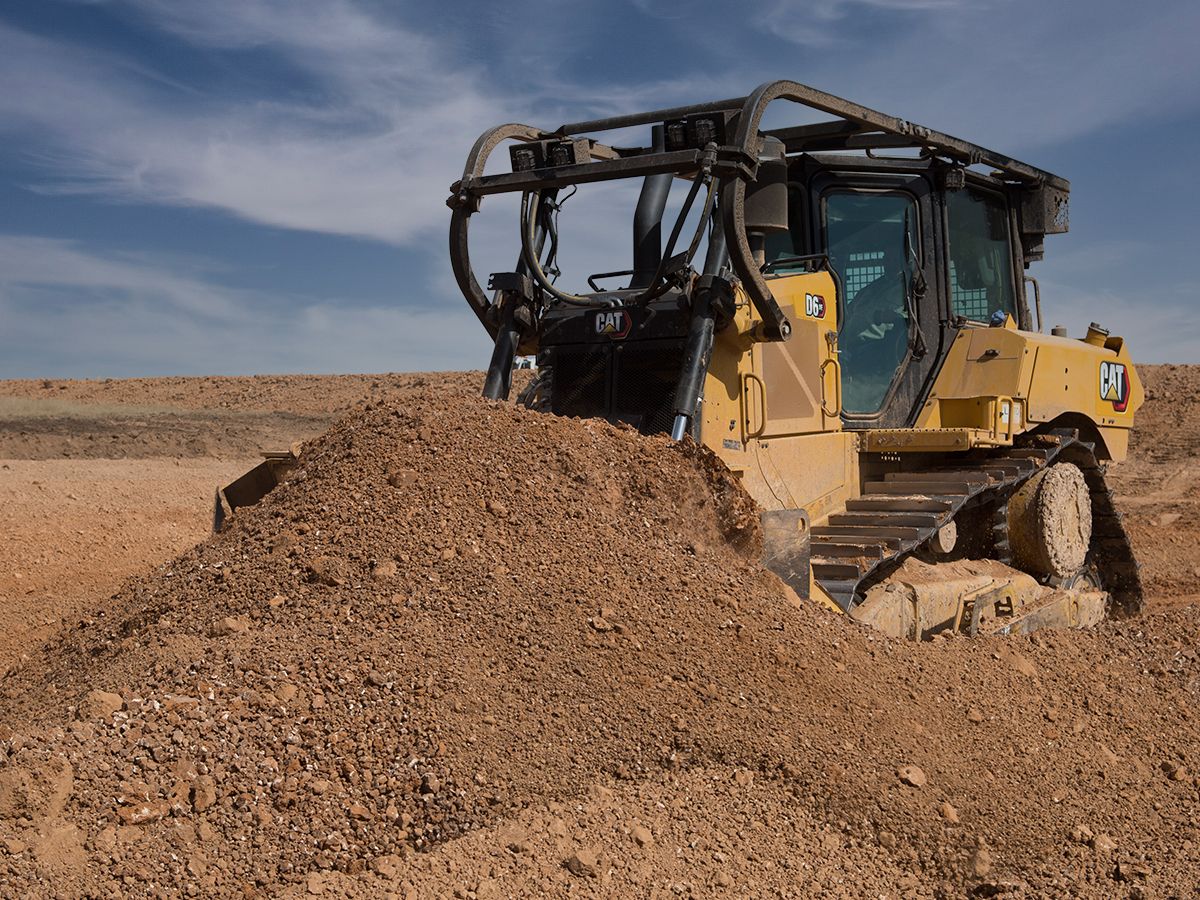

Caterpillar D6 XE
Caterpillar D6 XE — Bulldozer · 215 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
215 hp
Weight
42280 to 48788 pounds
Hover a source tag to verify
Overview
ManufacturerCaterpillarReference
BulldozerReference
DrivecrawlerReference
Final drivesdouble-reduction planetaryReference
Cab standard with air-conditioning.Reference
Variants
D6power shiftReference
D6 XEelectric driveReference
Engine
Caterpillar 9.3L 6-cyl dieselReference
Engine (net)160.3 kWReference
Drawbar (claimed)119.3 kWReference
Caterpillar C9.3BReference
dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement9.3 LReference
Bore/Stroke115 x 149 mmReference
EmissionsTier IVReference
Emission controlselective catalytic reduction (SCR)Reference
Power (net)160.3 kWReference
Rated RPM1700Reference
StarterelectricReference
Starter volts24Reference
Oil capacity24.6 LReference
Coolant capacity76.8 LReference
Transmission
electric driveReference
Typeelectric driveReference
Gearsinfinite forward and reverseReference
Oil capacity210.1 LReference
Capacities
Fuel340.7 LReference
Exhaust fluid (DEF)28.0 LReference
PTO & Hydraulics
Hydraulic system59.8 LReference
Typeload sensing variable displacementReference
Capacity59.8 LReference
Pressure275.8 barReference
Pump flow212.0 lpmReference
Steering flow238.5 lpmReference
Steering press.445.3 barReference
Dimensions
Weight42280 to 48788 poundsReference
24-inch tracksReference
Length472 cmReference
6A dozer length537 cmReference
6SU dozer length543 cmReference
VPAT dozer length566 cmReference
Width269 cmReference
Width299 cmReference
Height (ROPS)317 cmReference
Shipping weight19178 kgReference
Operating weight22130 kgReference
Gauge193 cmReference
Caterpillar D6 XE attachments
bladeReference
Electrical
Charging systemalternatorReference
Batteries2Reference
Battery CCA700Reference
Battery volts12Reference
Caterpillar D6 XE Tracks
Width60 cmReference
Length on ground296 cmReference
Area on ground4.0 m²Reference
Ground pressure0.6 barReference
LGP width91 cmReference
LGP length on ground324 cmReference
LGP area on ground6.5 m²Reference
LGP ground pressure0.4 barReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
