Tractor · 1970Unverified

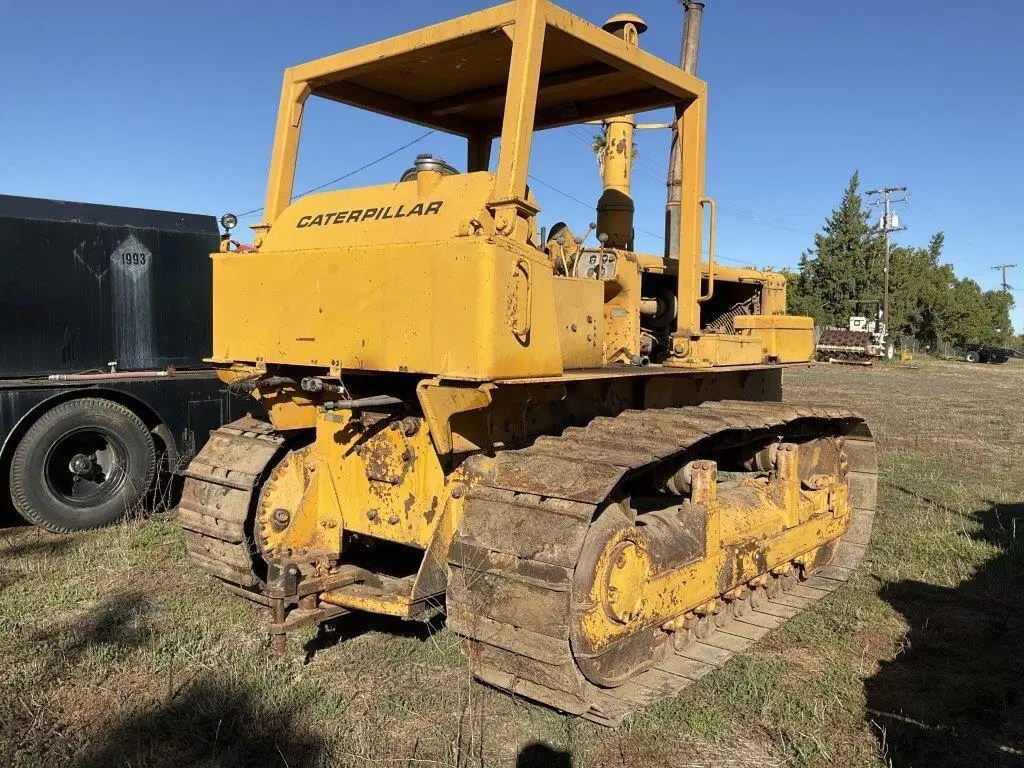

Caterpillar D6C SA Special Application
Caterpillar D6C SA Special Application — Agricultural Crawler tractor · 140 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
140 hp
Weight
11838 kg
Hover a source tag to verify
Overview
ManufacturerCaterpillarReference
Agricultural Crawler tractorReference
DrivecrawlerReference
Open operator station. Four-post canopy available.Reference
Engine
Caterpillar 10.5L 6-cyl dieselReference
Fuel tank435.3 LReference
Engine104.4 kWReference
Drawbar (claimed)93.2 kWReference
Caterpillar 3306Reference
dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement10.5 LReference
Bore/Stroke121 x 152 mmReference
Power104.4 kWReference
Rated RPM2000Reference
StarterelectricReference
Starter volts24Reference
Oil capacity27.4 LReference
Coolant capacity37.9 LReference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 4 reverseReference
Oil capacity98.4 LReference
PTO & Hydraulics
Typeopen centerReference
Pressure137.9 barReference
Pump flow84.0 lpmReference
Dimensions
Weight11838 kgReference
20-inch tracksReference
Length396 cmReference
Width238 cmReference
Height (exhaust)266 cmReference
Shipping weight11838 kgReference
Gauge187 cmReference
Electrical
Charging systemalternatorReference
Charging amps50Reference
Batteries2Reference
Battery volts12Reference
Caterpillar D6C SA Tracks
Width50 cmReference
Length on ground236 cmReference
Area on ground2.4 m²Reference
Width55 cmReference
Width60 cmReference
Width66 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
