Tractor · 1977Unverified

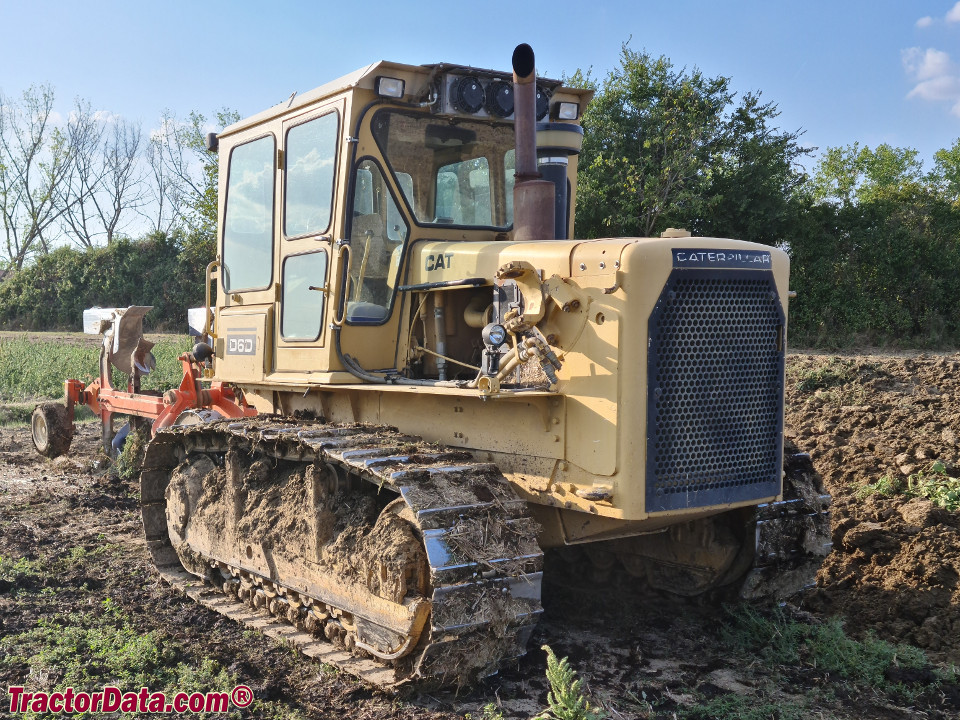

Caterpillar D6D SA Special Application
Caterpillar D6D SA Special Application — Agricultural Crawler tractor · 165 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
165 hp
Weight
28500 to 29000 pounds
Hover a source tag to verify
Overview
ManufacturerCaterpillarReference
Agricultural Crawler tractorReference
Original price was $104,120 in 1985Reference
DrivecrawlerReference
Four-post ROPS. Cab available with air-conditioning.Reference
Engine
Caterpillar 10.5L 6-cyl dieselReference
Fuel tank435.3 LReference
Engine (net)123.0 kWReference
Drawbar (claimed)93.2 kWReference
Caterpillar 3306Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement10.5 LReference
Bore/Stroke121 x 152 mmReference
Power (net)123.0 kWReference
Fuel systemdirect injectionReference
Rated RPM2000Reference
StarterelectricReference
Starter volts24Reference
Oil capacity27.4 LReference
Coolant capacity37.9 LReference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 4 reverseReference
Oil capacity98.4 LReference
PTO & Hydraulics
Typeopen centerReference
Pressure155.1 barReference
Pump flow90.8 lpmReference
Dimensions
Weight28500 to 29000 poundsReference
20-inch tracksReference
Length396 cmReference
Width238 cmReference
Shipping weight12927 kgReference
Operating weight13154 kgReference
Gauge187 cmReference
Electrical
Charging systemalternatorReference
Charging amps50Reference
Batteries2Reference
Battery volts12Reference
Caterpillar D6D SA Tracks
Width50 cmReference
Length on ground236 cmReference
Area on ground2.4 m²Reference
Caterpillar D6D SA Height
Hood190 cmReference
ROPS287 cmReference
Cab314 cmReference
Exhaust313 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
