Industrial Tractor · 2012Unverified

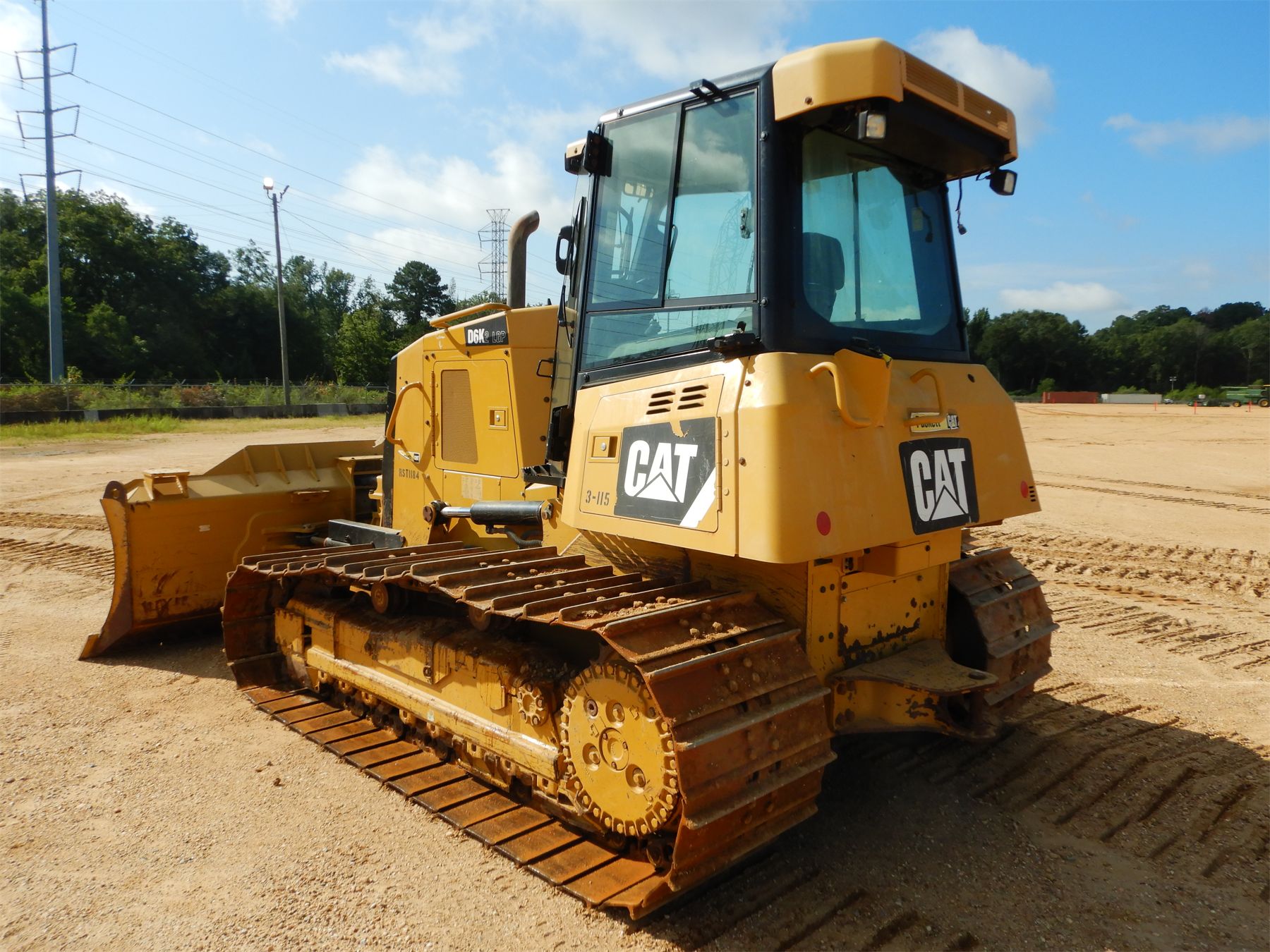

Caterpillar D6K2
Caterpillar D6K2 — Model year 2012-20152016-2020 · 158 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
158 hp
Weight
28740 to 29346 pounds
Hover a source tag to verify
Overview
ManufacturerCaterpillarReference
BulldozerReference
DrivecrawlerReference
Cab standard with air-conditioning.Reference
Engine
Caterpillar 6.6L 6-cyl dieselReference
Engine (gross)117.8 kWReference
Engine (net)96.9 kWReference
Caterpillar C6.6Reference
turbocharged aftercooled dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement6.6 LReference
Bore/Stroke105 x 127 mmReference
EmissionsInterim Tier IVReference
Power (net)96.9 kWReference
Power (gross)117.8 kWReference
Rated RPM2200Reference
StarterelectricReference
Starter volts24Reference
Oil capacity16.5 LReference
Coolant capacity32.5 LReference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverseReference
Capacities
Fuel294.9 LReference
PTO & Hydraulics
Hydraulic system57.9 LReference
Typeload sensingReference
Capacity57.9 LReference
Dimensions
Weight28740 to 29346 poundsReference
22-inch tracksReference
Length434 cmReference
VAPT dozer length497 cmReference
Width233 cmReference
Width276 cmReference
Height (cab)294 cmReference
Height (exhaust)287 cmReference
Shipping weight13036 kgReference
Operating weight13311 kgReference
PA50 winch907 kgReference
Ripper845 kgReference
Gauge177 cmReference
Gauge200 cmReference
Caterpillar D6K2 attachments
bladeReference
Electrical
Charging systemalternatorReference
Charging amps115Reference
Batteries2Reference
Battery CCA900Reference
Battery volts12Reference
Caterpillar D6K2 Tracks
Width55 cmReference
Length on ground264 cmReference
Area on ground3.0 m²Reference
Ground pressure0.4 barReference
LGP width76 cmReference
LGP length on ground264 cmReference
LGP area on ground4.0 m²Reference
LGP ground pressure0.3 barReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
