Tractor · 1940Unverified

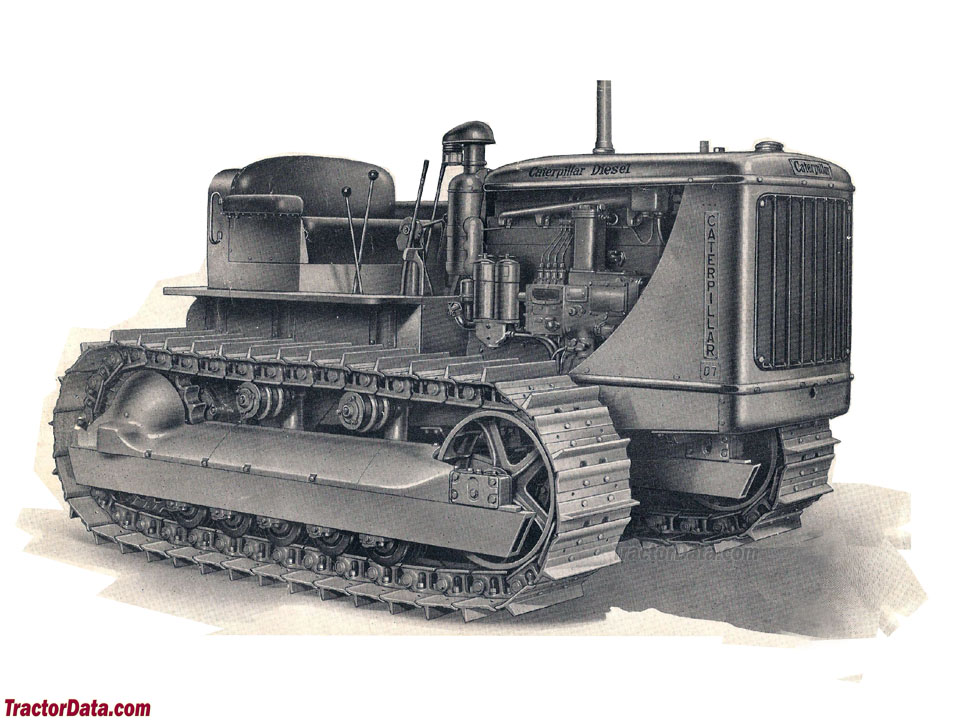

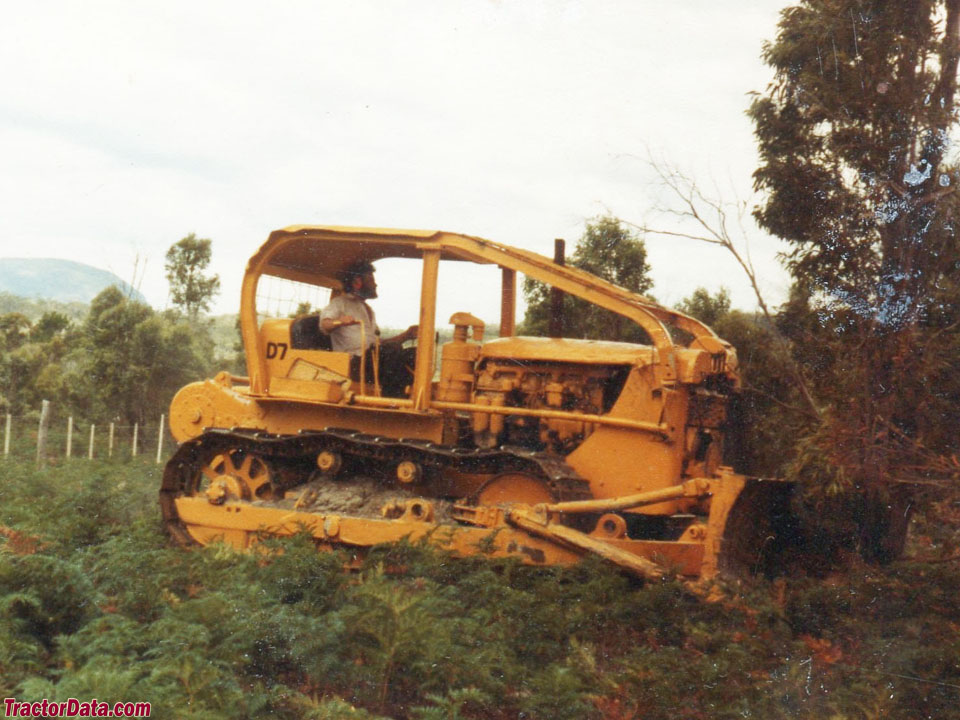

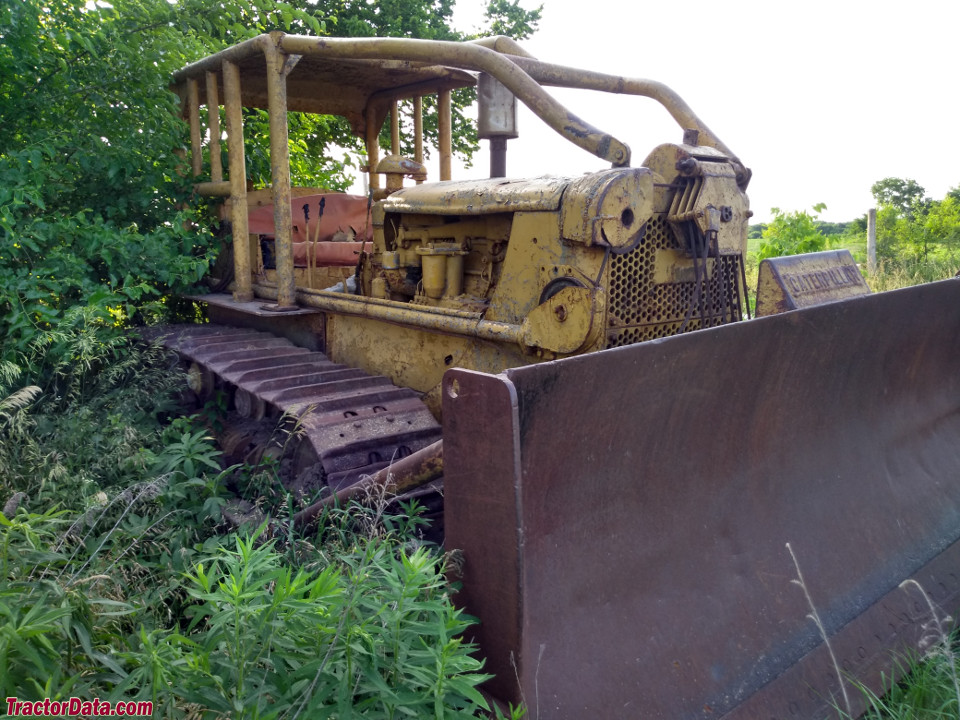

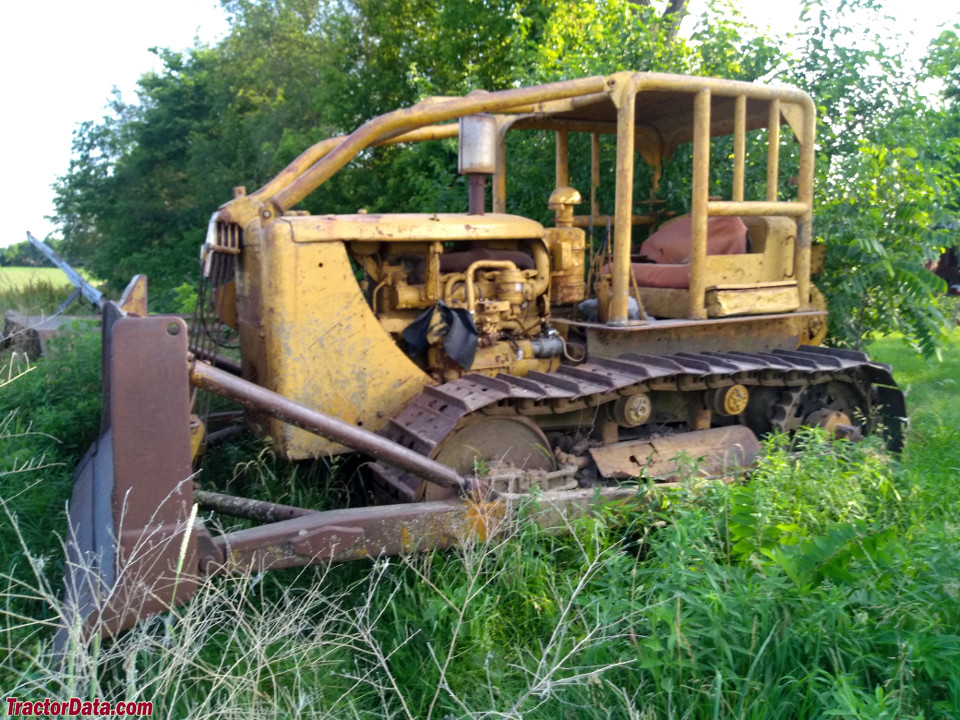

Caterpillar D7

Name: Caterpillar D7
Brand: Caterpillar

Caterpillar D7 — Agricultural Crawler tractor · 80 hp. Reference specifications; pending source verification.

The Caterpillar D7 is a tractor model with a rated output of 80 horsepower, placing it in the middle of its class in terms of power. It was manufactured from 1940 to 1954. The D7 features a 4-cylinder diesel liquid-cooled engine, mated to a 5-speed gearbox and powering a tracked undercarriage. Its listed weight is 11,036 kilograms.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

80 hp

Max power

58.5 kW

Weight

11036 kg

Catalogue coverage

Variants represented

Richest spec table

47 rows

Recorded power

80 hp

Recorded weight

11036 kg

Transmissions

5-speed gear

Production years

1940-1954

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaterpillarReference

Agricultural Crawler tractorReference

Built in Peoria, Illinois, USAReference

DrivecrawlerReference

Steeringmanual clutchesReference

Contracting band brakesReference

Open operator station.Reference

Engine

Caterpillar 13.6L 4-cyl dieselReference

Fuel tank246.0 LReference

Drawbar (claimed)59.7 kWReference

Belt (claimed)68.6 kWReference

Drawbar (tested)58.5 kWReference

Belt (tested)66.4 kWReference

CaterpillarReference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement13.6 LReference

Bore/Stroke146 x 203 mmReference

Air cleaneroil bathReference

Rated RPM1050Reference

Starter type2-cylinder pony engineReference

Oil capacity20.8 LReference

Coolant capacity68.1 LReference

Belt power (max)66.4 kWReference

Max power58.5 kWReference

Transmission

5-speed gearReference

TypegearReference

Gears5 forward and 4 reverseReference

Clutchdry metallic discReference

Oil capacity37.9 LReference

Dimensions

Weight11036 kgReference

20-inch tracksReference

Length412 cmReference

Width246 cmReference

Height (hood)203 cmReference

Shipping weight11036 kgReference

Ground clearance39 cmReference

Clearance (drawbar)43 cmReference

Gauge187 cmReference

Caterpillar D7 Tracks

Width50 cmReference

Test results

Diesel 5-speed crawlerOctober 2 - 11, 1940Link: Nebraska Tractor Test 358 fileReference

Belt fuel use (max)22.7 l/hourReference

Drawbar performanceReference

Gear 2 used for power test.Reference

Max pull9684 kgReference

Gear 1 used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
