Industrial Tractor · 2020Unverified

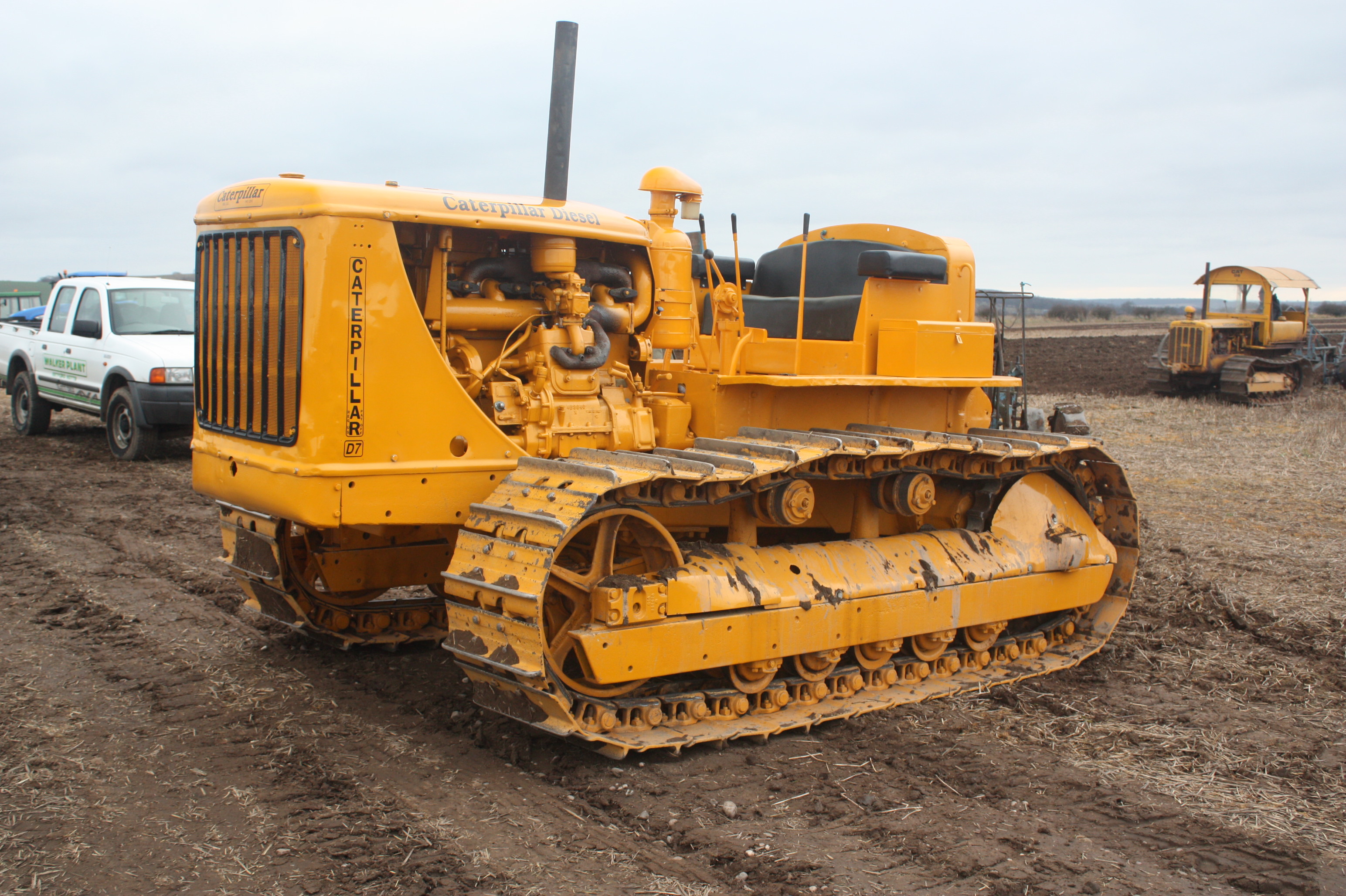

Caterpillar D7
Caterpillar D7 — Bulldozer · 265 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
265 hp
Weight
57415 to 65644 pounds
Hover a source tag to verify
Overview
ManufacturerCaterpillarReference
BulldozerReference
DrivecrawlerReference
Final drivesdouble-reduction planetaryReference
Cab standard with air-conditioning.Reference
Engine
Caterpillar 9.3L 6-cyl dieselReference
Engine (net)197.6 kWReference
Caterpillar C9.3BReference
turbocharged aftercooled dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement9.3 LReference
Bore/Stroke114 x 150 mmReference
EmissionsTier IVReference
Power (net)197.6 kWReference
Rated RPM2000Reference
StarterelectricReference
Starter volts24Reference
Oil capacity28.0 LReference
Coolant capacity61.7 LReference
Transmission
4-speed power shiftReference
Typepower shiftReference
Gears4 forward and reverseReference
Oil capacity187.0 LReference
Capacities
Fuel465.6 LReference
Exhaust fluid (DEF)43.9 LReference
PTO & Hydraulics
Hydraulic system143.8 LReference
Typeload sensingReference
Capacity143.8 LReference
Pressure310.0 barReference
Pump flow219.5 lpmReference
Steering flow264.9 lpmReference
Dimensions
Weight57415 to 65644 poundsReference
24-inch tracksReference
Length465 cmReference
U dozer length602 cmReference
SU dozer length577 cmReference
Height (cab)342 cmReference
Shipping weight26043 kgReference
Operating weight29776 kgReference
Caterpillar D7 attachments
bladeReference
Electrical
Charging systemalternatorReference
Charging amps150Reference
Battery volts12Reference
Caterpillar D7 Tracks
Width60 cmReference
Length on ground297 cmReference
Area on ground4.0 m²Reference
Width91 cmReference
Length on ground314 cmReference
Area on ground6.5 m²Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
