Tractor · 1980Unverified

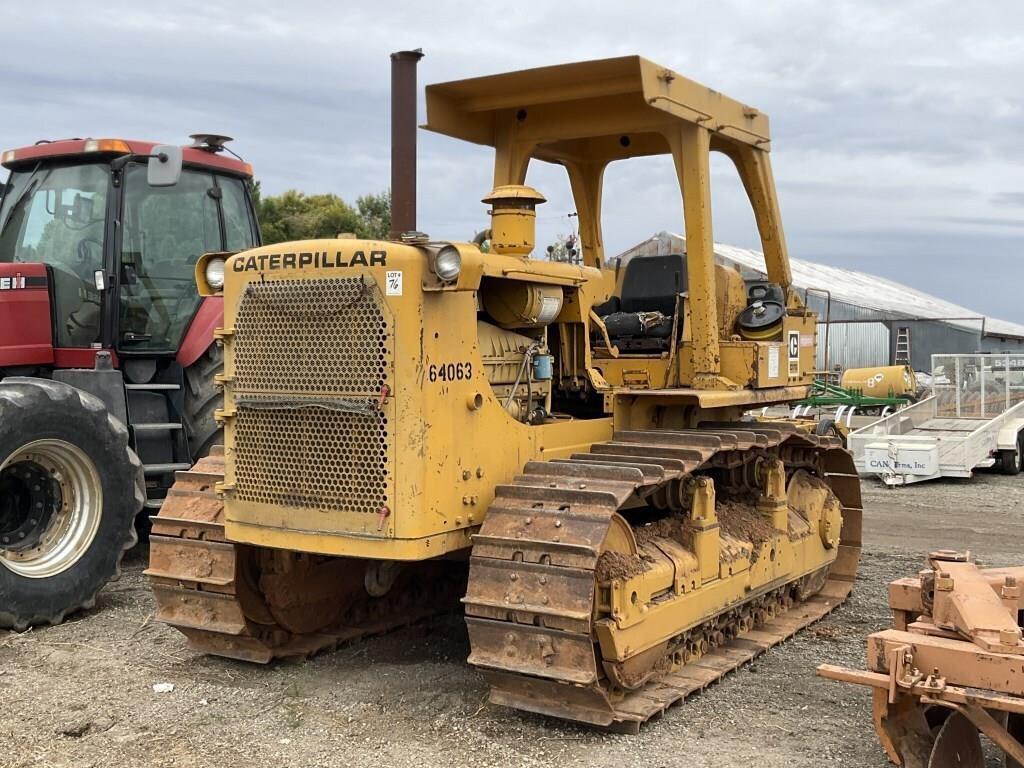

Caterpillar D7G SA Special Application
Caterpillar D7G SA Special Application — Agricultural Crawler tractor · 250 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
250 hp
Weight
39500 to 40700 pounds
Hover a source tag to verify
Overview
ManufacturerCaterpillarReference
Agricultural Crawler tractorReference
Original price was $166,210 in 1985Reference
DrivecrawlerReference
ROPS. Cab available with air-conditioning.Reference
Variants
D7GbulldozerReference
Engine
Caterpillar 10.5L 6-cyl dieselReference
Engine186.4 kWReference
Drawbar (claimed)149.1 kWReference
Caterpillar 3306Reference
turbocharged aftercooled dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement10.5 LReference
Bore/Stroke121 x 152 mmReference
Power186.4 kWReference
Rated RPM2000Reference
StarterelectricReference
Starter volts24Reference
Oil capacity27.4 LReference
Coolant capacity45.4 LReference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 4 reverseReference
Clutchwet discReference
Oil capacity60.6 LReference
Capacities
Fuel586.7 LReference
PTO & Hydraulics
Hydraulic system90.8 LReference
Typeopen centerReference
Capacity90.8 LReference
Pressure155.1 barReference
Valves3Reference
Pump flow121.1 lpmReference
Dimensions
Weight39500 to 40700 poundsReference
22-inch tracksReference
Length454 cmReference
Width261 cmReference
Shipping weight17917 kgReference
Operating weight18461 kgReference
Ground clearance34 cmReference
Gauge198 cmReference
Steering wheel226 cmReference
Electrical
Charging systemalternatorReference
Battery volts12Reference
Caterpillar D7G SA Tracks
Width55 cmReference
Length on ground271 cmReference
Area on ground3.0 m²Reference
Width60 cmReference
Width66 cmReference
Caterpillar D7G SA Height
Hood215 cmReference
ROPS320 cmReference
Exhaust327 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
