Tractor · 1984Unverified

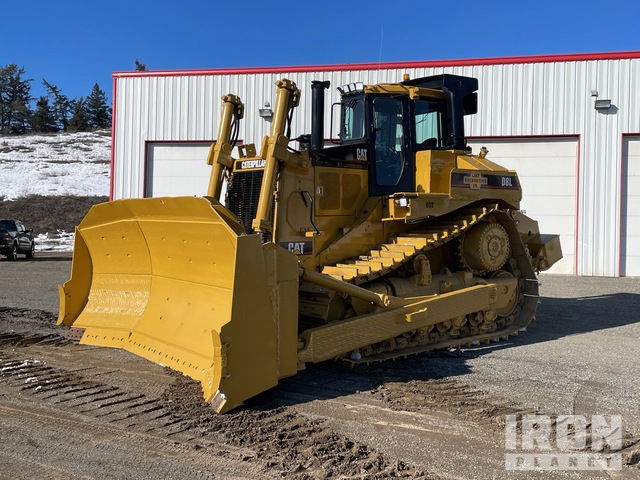

Caterpillar D8L SA Special Application
Caterpillar D8L SA Special Application — Agricultural Crawler tractor · 400 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
400 hp
Weight
77692 to 80820 pounds
Hover a source tag to verify
Overview
ManufacturerCaterpillarReference
Agricultural Crawler tractorReference
Original price was $272,180 in 1985Reference
DrivecrawlerReference
Final drivesdouble-reduction planetaryReference
ROPS. Cab available with air-conditioning.Reference
Variants
D8LbulldozerReference
Engine
Caterpillar 18.0L 8-cyl dieselReference
Engine298.3 kWReference
Drawbar (claimed)249.8 kWReference
Caterpillar 3408Reference
turbocharged aftercooled dieselReference
8-cylinder 32-valveReference
liquid-cooled V-8Reference
Displacement18.0 LReference
Bore/Stroke137 x 152 mmReference
Power298.3 kWReference
Fuel systemdirect injectionReference
Air cleanerdryReference
Rated RPM1900Reference
StarterelectricReference
Starter volts24Reference
Oil capacity45.4 LReference
Coolant capacity92.7 LReference
Transmission
3-speed power shiftReference
Typepower shiftReference
Gears3 forward and reverseReference
Clutchwet discReference
Oil capacity166.6 LReference
Capacities
Fuel715.4 LReference
PTO & Hydraulics
Hydraulic system88.9 LReference
Typeload sensingReference
Capacity88.9 LReference
Pressure172.4 barReference
Valves4Reference
Pump flow113.6 lpmReference
Dimensions
Weight77692 to 80820 poundsReference
36-inch tracksReference
Length546 cmReference
Width345 cmReference
Shipping weight35241 kgReference
Operating weight36659 kgReference
Ground clearance45 cmReference
Gauge254 cmReference
Steering wheel289 cmReference
Electrical
Charging systemalternatorReference
Charging amps35Reference
Charging amps50Reference
Batteries2Reference
Battery volts12Reference
Battery AH172Reference
Caterpillar D8L SA Tracks
Width91 cmReference
Length on ground321 cmReference
Area on ground5.9 m²Reference
Width66 cmReference
Width71 cmReference
Caterpillar D8L SA Height
Cab360 cmReference
Exhaust378 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
