Tractor · 1933Unverified

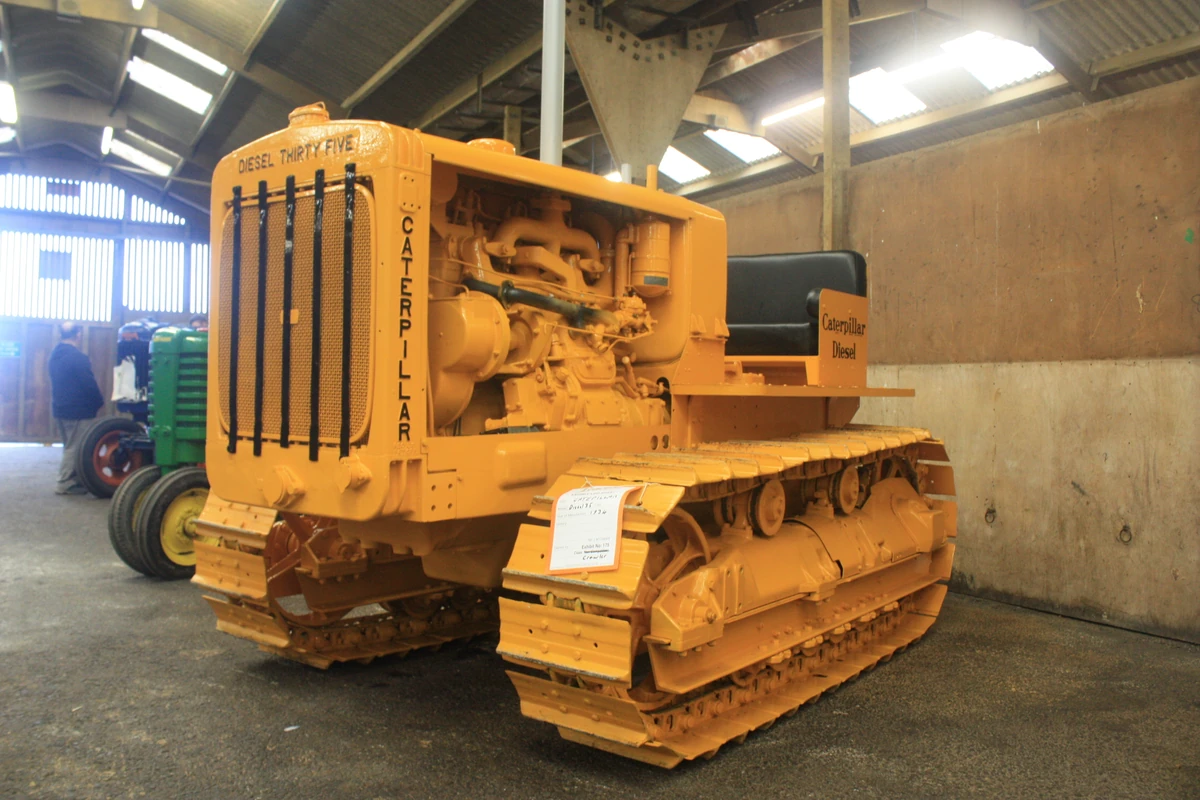

Caterpillar Diesel Thirty-Five
Caterpillar Diesel Thirty-Five · 39 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
39 hp
Max power
29.1 kW
Hover a source tag to verify
Overview
ManufacturerCaterpillarReference
Built in Peoria, Illinois, USAReference
DrivecrawlerReference
Engine
Caterpillar 8.5L 3-cyl dieselReference
Drawbar (tested)29.1 kWReference
Belt (tested)33.6 kWReference
CaterpillarReference
dieselReference
3-cylinderReference
Displacement8.5 LReference
Bore/Stroke133 x 203 mmReference
Rated RPM850Reference
Belt power (max)33.6 kWReference
Max power29.1 kWReference
Transmission
4-speedReference
Gears4 forward and 1 reverseReference
Dimensions
TracksReference
Gauge134 cmReference
Gauge142 cmReference
Gauge190 cmReference
Test results
1933Reference
Drawbar performanceReference
Max pull4143 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
