Tractor · 1933Unverified

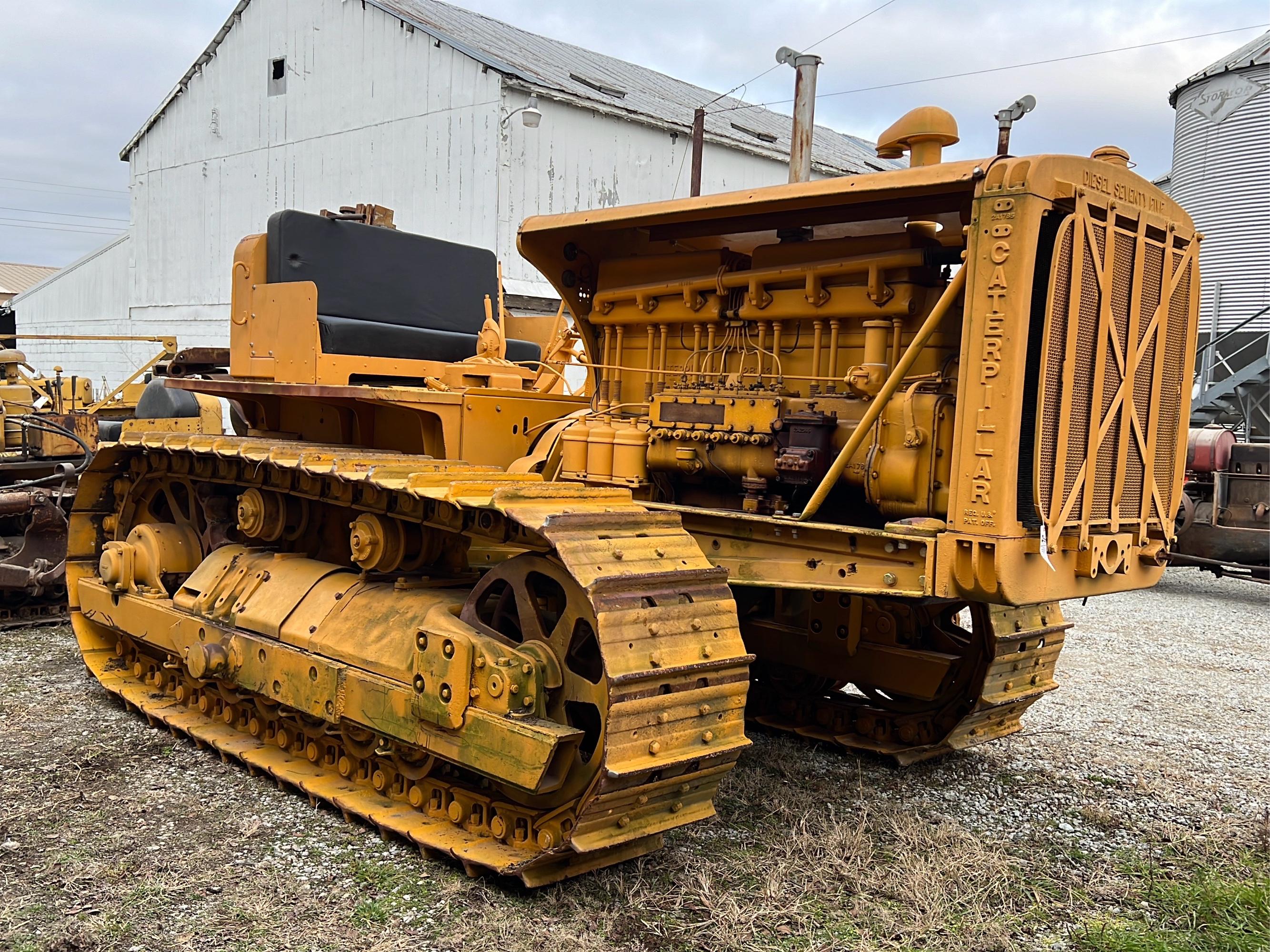

Caterpillar Seventy-Five
Caterpillar Seventy-Five — Agricultural Crawler tractor · 81 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
81 hp
Max power
60.1 kW
Weight
14314 kg
Hover a source tag to verify
Overview
ManufacturerCaterpillarReference
Agricultural Crawler tractorReference
Built in Peoria, Illinois, USAReference
DrivecrawlerReference
Steeringmanual clutchReference
Open operator station. Canopy optional.Reference
Engine
Caterpillar 17.0L 6-cyl dieselReference
Fuel tank340.7 LReference
Drawbar (tested)60.1 kWReference
Belt (tested)69.2 kWReference
CaterpillarReference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement17.0 LReference
Bore/Stroke133 x 203 mmReference
Air cleaneroil bathReference
Rated RPM820Reference
Oil capacity26.5 LReference
Coolant capacity106.0 LReference
Belt power (max)69.2 kWReference
Max power60.1 kWReference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
ClutchdryReference
Oil capacity37.9 LReference
Dimensions
Weight14314 kgReference
18-inch tracksReference
Length464 cmReference
Width263 cmReference
Height (hood)213 cmReference
Shipping weight14314 kgReference
Ground clearance26 cmReference
Clearance (drawbar)44 cmReference
Gauge198 cmReference
Capacities
Diameter36 cmReference
Width33 cmReference
RPM820Reference
Caterpillar Seventy-Five Tracks
Width45 cmReference
Length on ground247 cmReference
Area on ground2.3 m²Reference
Test results
Diesel 6-speed crawlerOctober 10 - 31, 1933Link: Nebraska Tractor Test 218 fileReference
Belt fuel use (max)24.6 l/hourReference
Drawbar performanceReference
Gear 2 used for power test.Reference
Max pull8480 kgReference
Gear 1 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
