Tractor · 1928Unverified

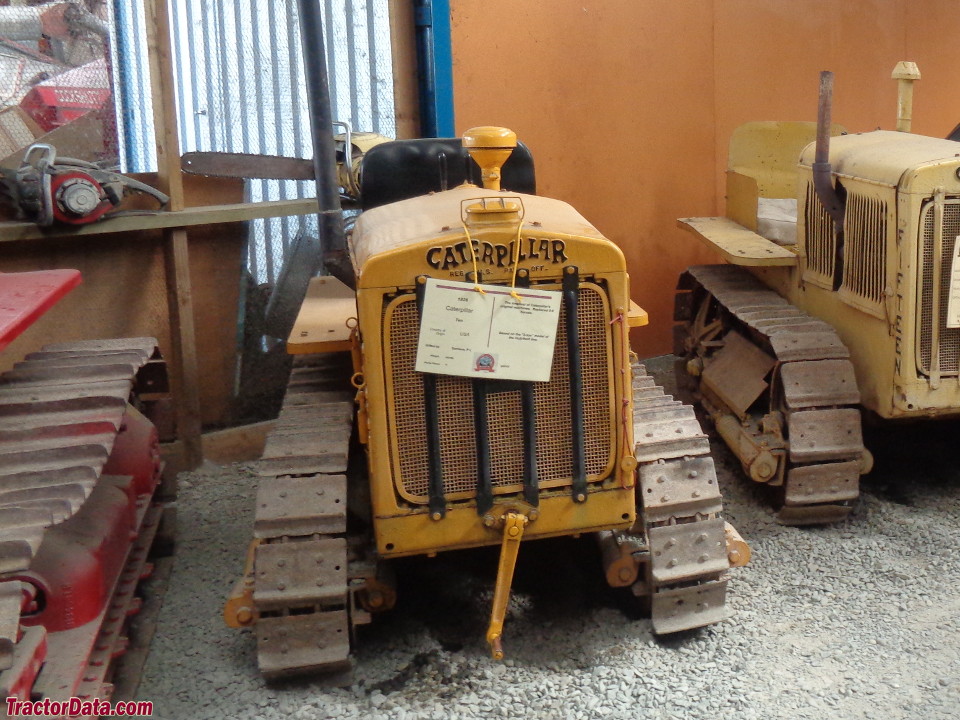

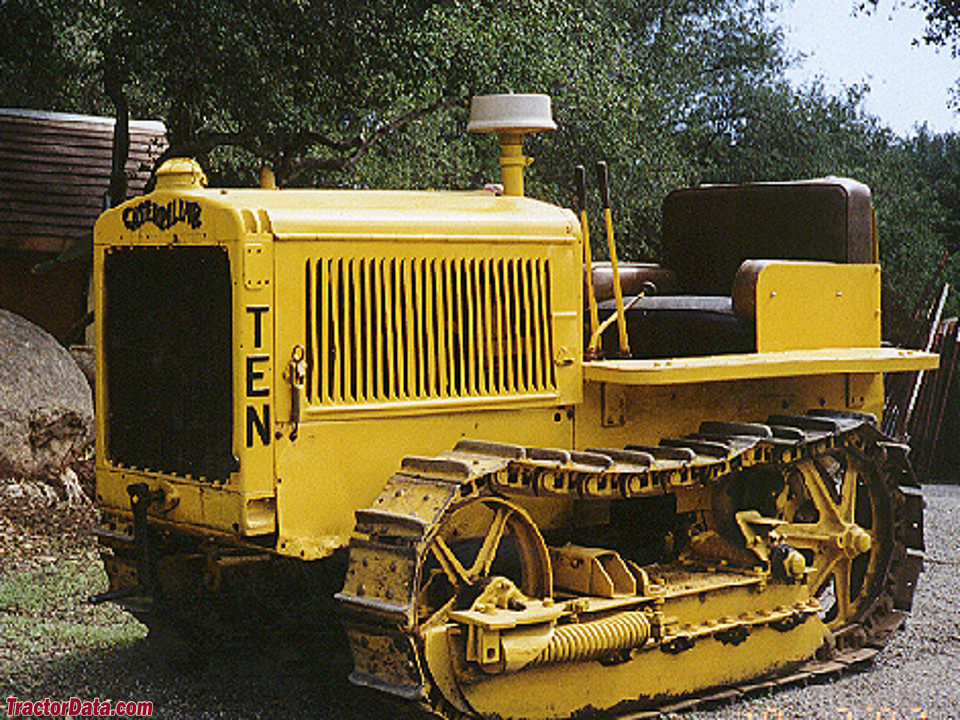

Caterpillar Ten

Name: Caterpillar Ten
Brand: Caterpillar

Caterpillar Ten — Agricultural Crawler tractor · 10 hp. Reference specifications; pending source verification.

The Caterpillar Ten is a compact tractor with a rated output of 10 hp. It was manufactured from 1928 to 1932 and features a 4-cylinder petrol liquid-cooled engine. The tractor's power is transmitted through a 3-speed gearbox and a tracked undercarriage. Its listed weight is 2004 kg and it is suitable for tasks covering approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

10 hp

Max power

11.1 kW

Weight

2004 kg

Catalogue coverage

Variants represented

Richest spec table

48 rows

Recorded power

10 hp

Recorded weight

2004 kg

Transmissions

3-speed gear

Production years

1928-1932

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaterpillarReference

Agricultural Crawler tractorReference

Built in Peoria, Illinois, USAReference

Total built4,929Reference

DrivecrawlerReference

Drum brakesReference

Open operator station.Reference

Engine

Caterpillar 2.3L 4-cyl gasolineReference

Fuel tank64.3 LReference

Drawbar (claimed)7.5 kWReference

Belt (claimed)10.4 kWReference

Drawbar (tested)11.1 kWReference

Belt (tested)13.5 kWReference

CaterpillarReference

gasolineReference

4-cylinderReference

liquid-cooled vertical L-headReference

Displacement2.3 LReference

Bore/Stroke86 x 102 mmReference

Rated RPM1500Reference

Coolant capacity15.1 LReference

Belt power (max)13.5 kWReference

Max power11.1 kWReference

Transmission

3-speed gearReference

TypegearReference

Gears3 forward and 1 reverseReference

Clutch266.7mm dry discReference

Dimensions

Weight2004 kgReference

8-inch tracksReference

Length253 cmReference

Width133 cmReference

Height131 cmReference

Ground clearance23 cmReference

Gauge93 cmReference

Ten Serial Numbers

1928PT1Reference

1929PT8Reference

1930PT3174Reference

FAQ: How to read a serial number table.Reference

Capacities

Diameter24 cmReference

Width16 cmReference

RPM1050Reference

Speed792.48 meters/minReference

Caterpillar Ten Tracks

Width20 cmReference

Test results

Gasoline crawlerMay 6 - 21, 1929Link: Nebraska Tractor Test 160 fileReference

Belt fuel use (max)7.9 l/hourReference

Drawbar performanceReference

Fuel use9.5 l/hourReference

Max pull946 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
