Tractor · 1932Unverified

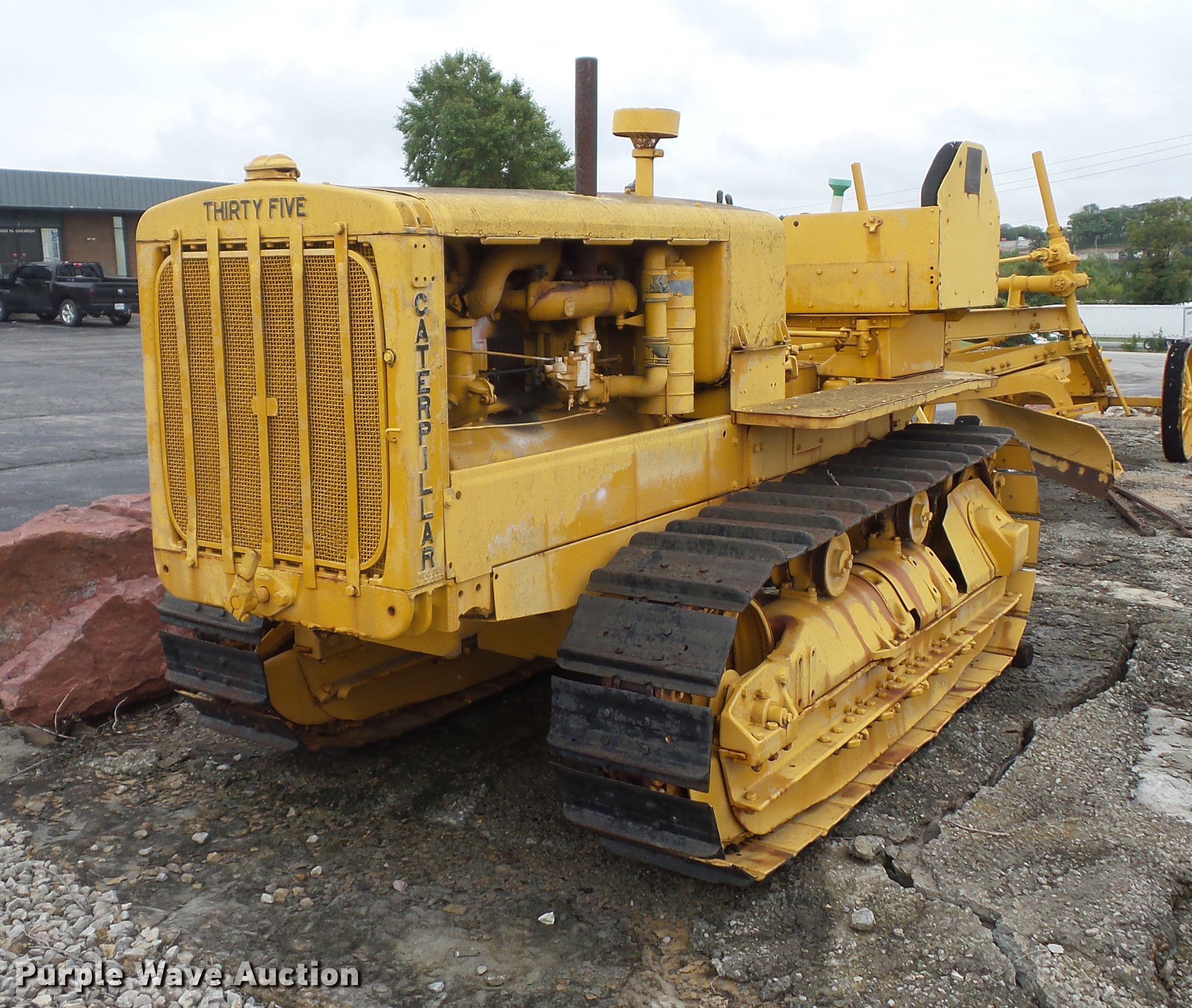

Caterpillar Thirty-Five
Caterpillar Thirty-Five — Agricultural Crawler tractor · 40 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
40 hp
Max power
27.0 kW
Weight
5819 kg
Hover a source tag to verify
Overview
ManufacturerCaterpillarReference
Agricultural Crawler tractorReference
Built in Peoria, Illinois, USAReference
DrivecrawlerReference
Open operator station.Reference
Engine
Caterpillar 8.0L 4-cyl gasolineReference
Caterpillar 8.5L 3-cyl dieselReference
Drawbar (tested)29.5 kWReference
Belt (tested)33.3 kWReference
CaterpillarReference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement8.0 LReference
Bore/Stroke124 x 165 mmReference
Rated RPM850Reference
dieselReference
3-cylinderReference
Displacement8.5 LReference
Bore/Stroke133 x 203 mmReference
Belt power (max)32.7 kWReference
Max power27.0 kWReference
Belt power (max)33.3 kWReference
Max power29.5 kWReference
Transmission
4-speed gearReference
TypegearReference
Gears4 forward and 1 reverseReference
Dimensions
Weight5819 kgReference
14-inch tracksReference
Caterpillar Thirty-Five Tracks
Width35 cmReference
Test results
NTTL 203: gasoline 4-speed crawlerReference
NTTL 217: diesel 4-speed crawlerReference
Gasoline 4-speed crawlerJune 6 - 24, 1932Link: Nebraska Tractor Test 203 fileReference
Belt fuel use (max)18.5 l/hourReference
Drawbar performanceReference
Gear 2 used for power test.Reference
Max pull3705 kgReference
Gear 1 used for pull test.Reference
Diesel 4-speed crawlerOctober 10 - 25, 1933Link: Nebraska Tractor Test 217 fileReference
Belt fuel use (max)12.5 l/hourReference
Gear 1 used for power test.Reference
Max pull4143 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
