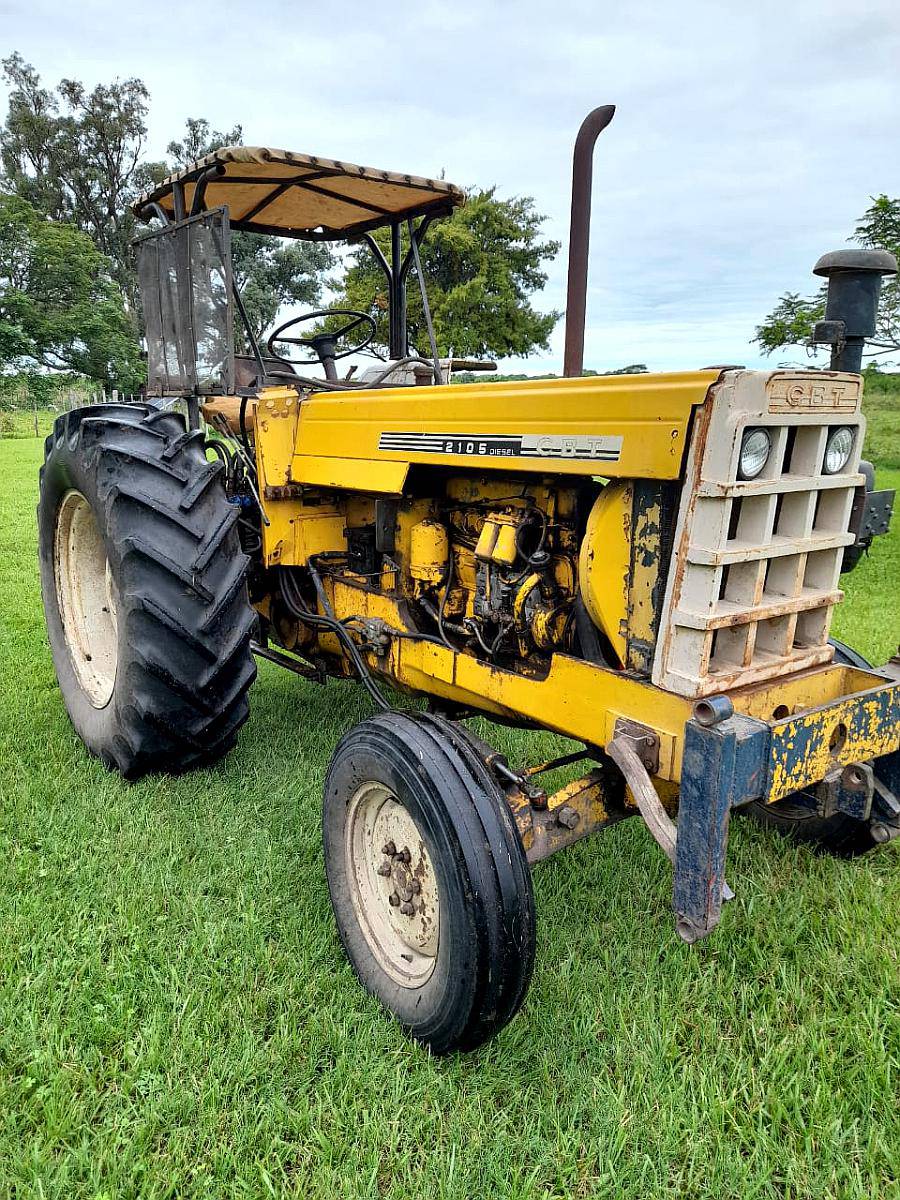

The CBT 2105 is a tractor equipped with a 6-cylinder diesel liquid-cooled engine and two-wheel drive with a hydrostatic transmission. Its operating weight is 3880 kg. The CBT 2105 is suitable for a range of operations. Detailed specifications for the CBT 2105 are provided in both metric and imperial units.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Weight
3880 kg
Catalogue coverage
Variants represented
2
Richest spec table
45 rows
Recorded weight
3880 kg
Transmissions
6-speed
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerCBTReference
Built in BrazilReference
Two-wheel driveReference
Steeringhydrostatic powerReference
Mechanical disc brakesReference
Open operator stationReference
Engine
Mercedes-Benz 5.7L 6-cyl dieselReference
Mercedes-Benz OM-352Reference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.7 LReference
Bore/Stroke97 x 128 mmReference
Air cleaneroil bathReference
Compression17:1Reference
Rated RPM2200Reference
Torque343.1 NmReference
Torque RPM1600Reference
Starter volts12Reference
Oil capacity16.5 LReference
Coolant capacity21.0 LReference
Transmission
6-speedReference
Gears6 forward and 2 reverseReference
Clutchdry discReference
Oil capacity36.0 LReference
Capacities
Fuel150.0 LReference
Steering1.8 LReference
Dimensions
Wheelbase213 cmReference
Weight3880 kgReference
Front tire7.50-18Reference
Rear tire18.4-34Reference
Ag front7.50-18Reference
Ag rear18.4-34Reference
Ag rear23.1-26Reference
Industrial rear17.5-25Reference
Length400 cmReference
Width218 cmReference
Height260 cmReference
Operating weight3880 kgReference
Ballasted weight5279 kgReference
Electrical
Charging systemalternatorReference
Charging amps35Reference
Charging volts14Reference
Battery volts12Reference
Speeds
With 18.4-34 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
