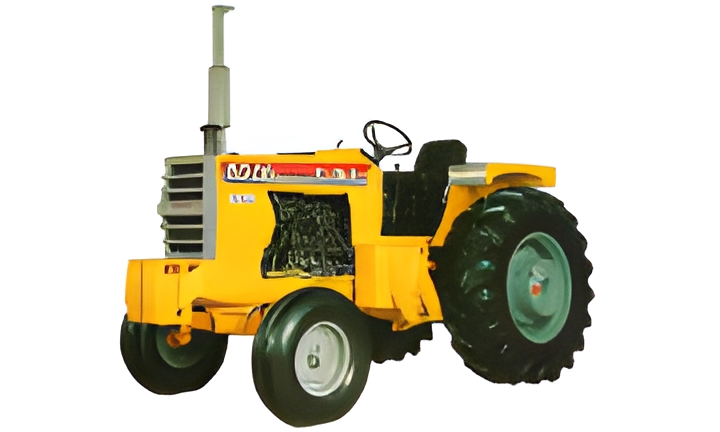

The CBT 8240 is a tractor with a rated output of 80 hp, placing it in the middle of its class for power. Produced between 1984 and 1988, this model features a 4-cylinder diesel liquid-cooled engine, which drives through a two-wheel drive system with a hydrostatic transmission. The listed weight of the CBT 8240 is 3810 kg. It is designed for use on land of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
80 hp
Weight
3810 kg
Catalogue coverage
Variants represented
2
Richest spec table
60 rows
Recorded power
80 hp
Recorded weight
3810 kg
Transmissions
6-speed
Production years
1984-1988
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerCBTReference
Built in BrazilReference
Two-wheel driveReference
Steeringhydrostatic powerReference
Hydraulic disc brakesReference
Open operator station.Reference
Engine
Perkins dieselReference
Perkins 3.8L 4-cyl ethanolReference
Engine59.7 kWReference
PerkinsReference
dieselReference
Perkins E-4.236Reference
ethanolReference
4-cylinderReference
liquid-cooledReference
Displacement3.8 LReference
Bore/Stroke98 x 127 mmReference
Power59.7 kWReference
Air cleanerdual dryReference
Rated RPM2200Reference
Torque286.4 NmReference
Torque RPM1400Reference
Starter volts12Reference
Starter power3.0 kWReference
Oil capacity7.1 LReference
Coolant capacity14.4 LReference
Transmission
6-speedReference
4-speedReference
Gears6 forward and 2 reverseReference
Clutchdry discReference
Oil capacity40.0 LReference
Gears4 forward and reverseReference
PTO & Hydraulics
Hydraulic system40.1 LReference
Capacity40.1 LReference
Steering cap.1.8 LReference
Rear TypeIIReference
Rear lift (at 24"/610mm)1500 kgReference
Rear PTO Type540Reference
Capacities
Steering1.8 LReference
Dimensions
Wheelbase210 cmReference
Weight3810 kgReference
Front tire9.00-16Reference
Rear tire18.4/15-30Reference
Ag front9.00-16Reference
Ag front10.00-16Reference
Ag rear18.4/15-30Reference
Length400 cmReference
Width202 cmReference
Height274 cmReference
Operating weight3810 kgReference
Ballasted weight4785 kgReference
Front tread141 to 192 cmReference
Rear tread139 to 210 cmReference
Electrical
Charging systemalternatorReference
Charging amps30Reference
Charging volts14Reference
Batteries2Reference
Battery volts6Reference
Battery AH95Reference
Speeds
With 18.4/15-30 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
