Tractor · Unverified

Century 3647

Name: Century 3647
Brand: Century

Century 3647 — Compact Utility tractorKukje built · 40 hp. Reference specifications; pending source verification.

The Century 3647 is a compact tractor model with a 40 hp rated output, featuring a 4-cylinder diesel liquid-cooled engine. This engine powers a four-wheel drive system with a hydrostatic transmission. The model's weight is 1773 kg, with an intended application for tasks on land spanning up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

40 hp

Weight

1773 kg

Catalogue coverage

Variants represented

Richest spec table

69 rows

Recorded power

40 hp

Recorded weight

1773 kg

Transmissions

12-speed partially synchronized

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

DistributorCenturyReference

ManufacturerKukjeReference

Compact Utility tractorReference

Built in Yangsu-ri, South KoreaReference

Four-wheel driveReference

Differential lockfoot pedalReference

Steeringhydrostatic powerReference

Differential wet disc brakesReference

ROPS.Reference

Engine

Kukje 2.3L 4-cyl dieselReference

Engine35.0 kWReference

KukjeReference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.3 LReference

Bore/Stroke88 x 94 mmReference

Power35.0 kWReference

Air cleanerdry cartridgeReference

Compression21.3:1Reference

Rated RPM2600Reference

Starter volts12Reference

Coolant capacity9.3 LReference

Oil capacity6.6 LReference

Transmission

12-speed partially synchronizedReference

Typepartially synchronizedReference

Gears12 forward and reverseReference

Oil capacity35.0 LReference

Oil type[21o↔-40oC]Reference

10oF [-12oC]↑: JDM J20CReference

70o↔-40oF [21o↔-40oC]: JDM J20DReference

Four gears in three ranges with left-hand shuttle. Gear shift is synchronized with clutch. Tractor must be stopped to shift range and shuttle.Reference

PTO & Hydraulics

PTO (claimed)29.8 kWReference

Hydraulic system35.0 LReference

Typeopen centerReference

Capacity35.0 LReference

Valves1 to 3Reference

Pump flow33.7 lpmReference

Total flow50.0 lpmReference

Rear TypeIReference

Rear lift1170 kgReference

Rear PTOlive (2-stage clutch)Reference

Rear PTO Type540/1000Reference

Capacities

Fuel42.0 LReference

Front axle7.0 LReference

Dimensions

Wheelbase180 cmReference

Weight1773 kgReference

Front tire8-18Reference

Rear tire12.4-28Reference

Ag front8-18Reference

Ag rear12.4-28Reference

Lawn/turf front29x12.00-15Reference

Lawn/turf rear44x18.00-20Reference

Industrial front12-16.5Reference

Industrial rear17.5L-24Reference

Length314 cmReference

Width154 cmReference

Height243 cmReference

Ground clearance30 cmReference

Front tread127 cmReference

Rear tread114 to 149 cmReference

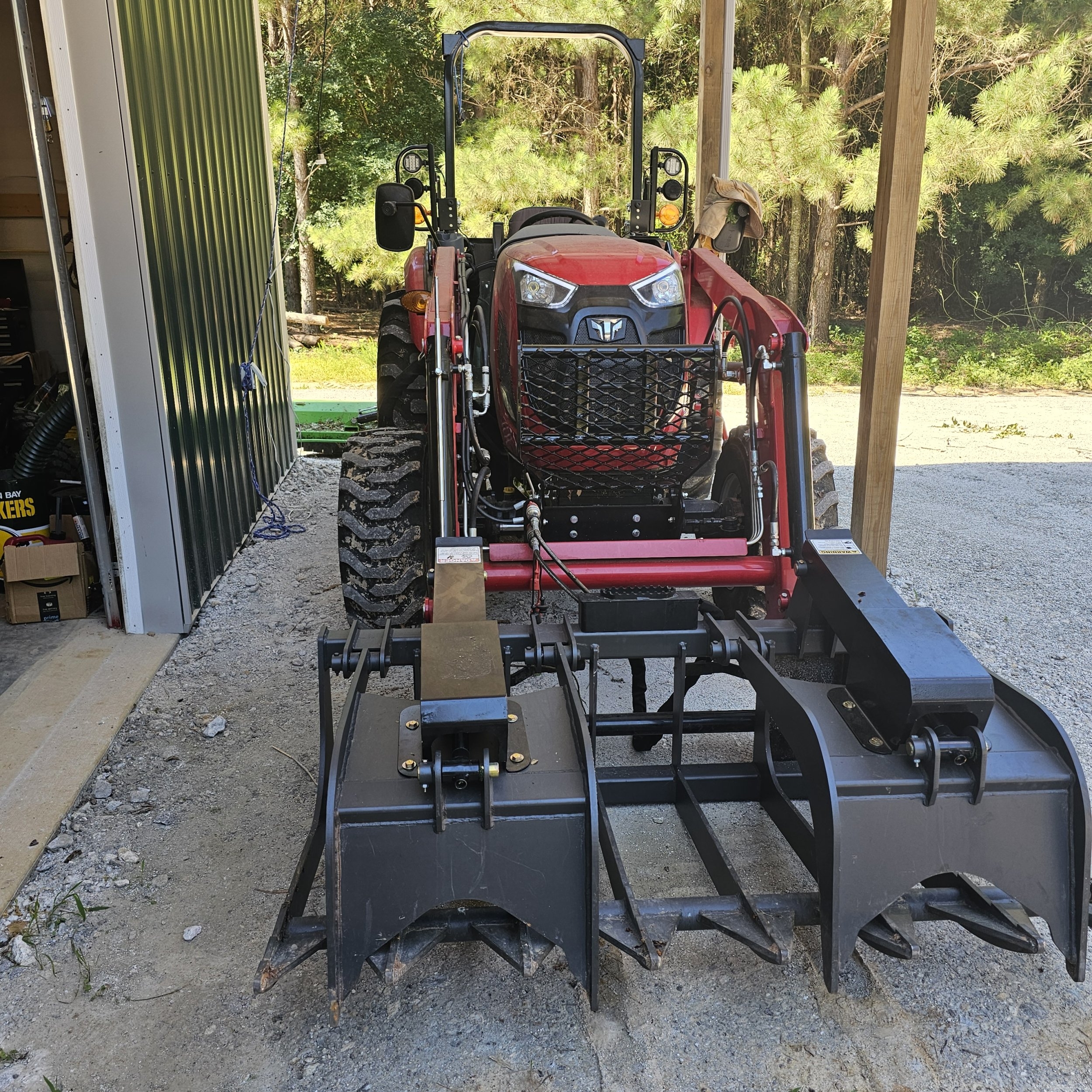

Century 3647 attachments

front-end loaderReference

3647 Serial Numbers

Location:Serial number plate on the rear of the tractor, above the drawbar.Reference

Electrical

GroundnegativeReference

Charging amps45Reference

Battery volts12Reference

Attachment overview

Century 50 loaderReference

Century 50HL loaderReference

Speeds

With 12.4-28 rear tires.Reference
