Tractor · 2017Unverified

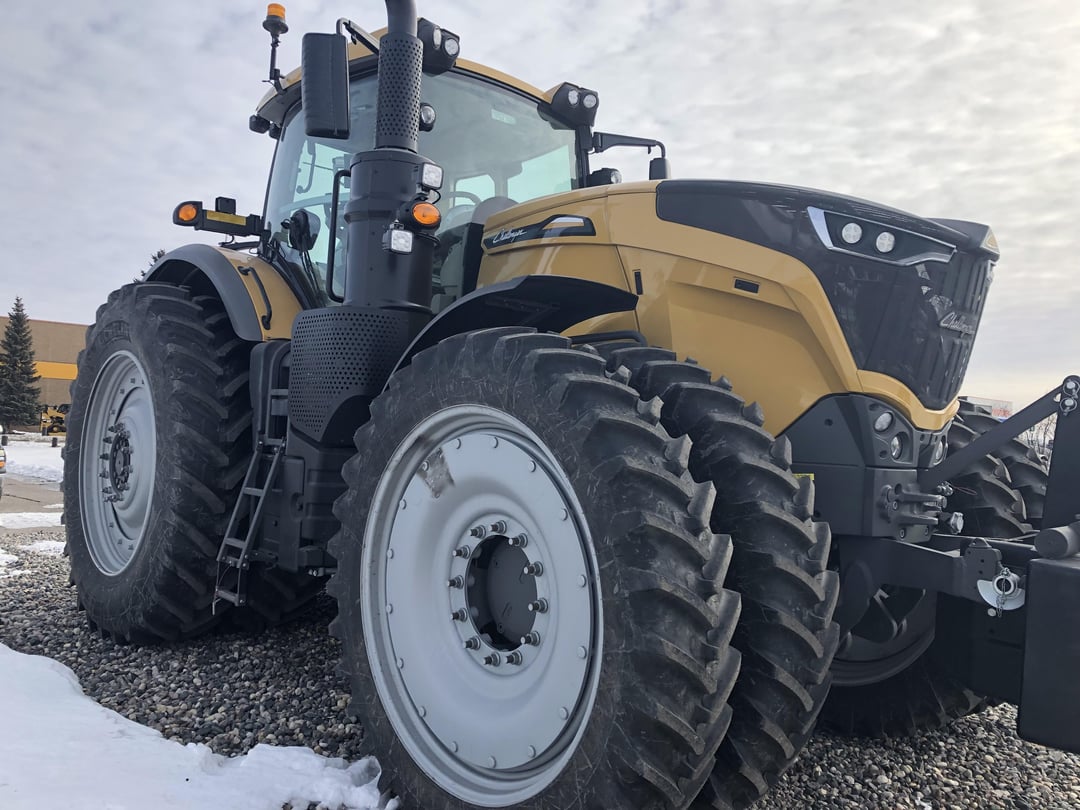

Challenger 1038
Challenger 1038 — Row-Crop tractor · 350 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
350 hp
Weight
14000 kg
Hover a source tag to verify
Overview
ManufacturerChallenger (a part of AGCO)Reference
Row-Crop tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standard with air-conditioning and mechanical suspension. Available pneumatic suspension system.Reference
Variants
1038 Variosimilar Fendt modelReference
Engine
MAN 12.4L 6-cyl dieselReference
Fuel tank799.8 LReference
Exhaust fluid (DEF)85.2 LReference
Engine295.3 kWReference
MANReference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement12.4 LReference
Bore/Stroke126 x 166 mmReference
EmissionsTier IVReference
Emission controlselective catalytic reduction with diesel oxidation catalystReference
Power295.3 kWReference
Rated RPM1700Reference
StarterelectricReference
Starter volts12Reference
Oil change500 hReference
PTO & Hydraulics
PTO (claimed)261.0 kWReference
Typeload sensingReference
Pressure200.0 barReference
Rear TypeIVReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Dimensions
Wheelbase329 cmReference
Weight14000 kgReference
Length615 cmReference
Width275 cmReference
Height (cab)344 cmReference
Ground clearance48 cmReference
Front tread210 cmReference
Rear tread199 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Transmission
TransmissionAccuDriveReference
Gearsinfinite forward and reverseReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
