Tractor · 1995Unverified

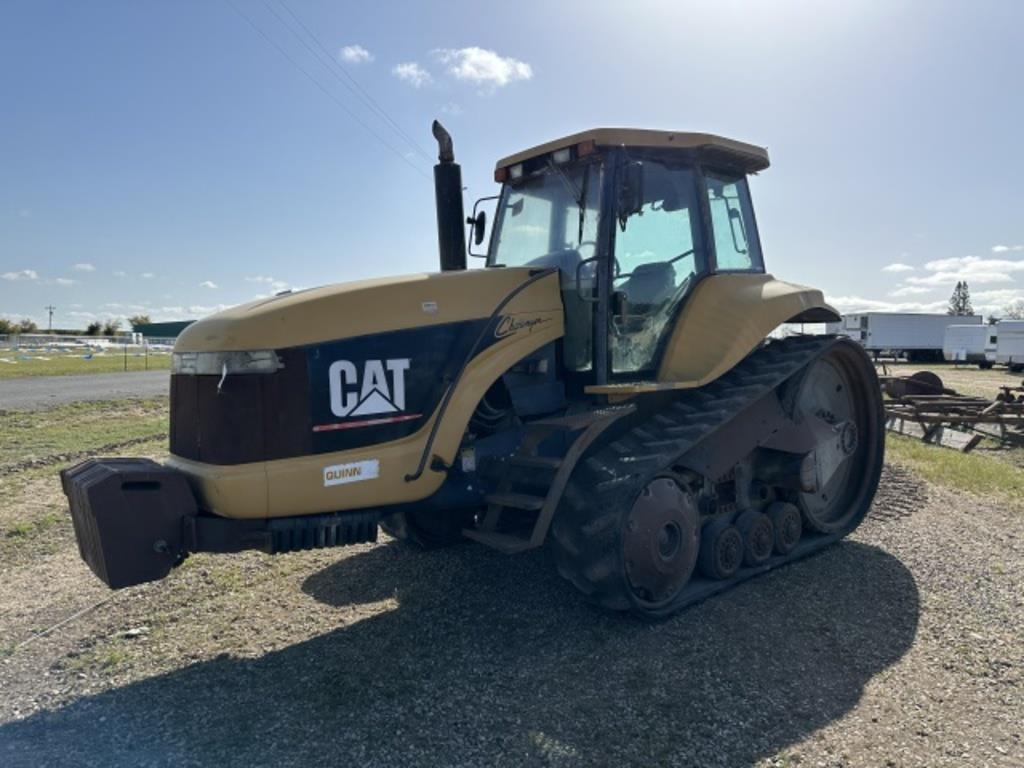

Challenger 35

Name: Challenger 35
Brand: Challenger

Challenger 35 — Agricultural Crawler tractor · 175 hp. Reference specifications; pending source verification.

The Challenger 35 is a tractor featuring a rated power output of 175 hp, placing it at the higher end of its class. Produced from 1995 to 1998, this model is equipped with a 6-cylinder turbocharged diesel liquid-cooled engine, paired with a tracked undercarriage and a powershift transmission. The Challenger 35 has an operating weight of 10098 kg, and it is suitable for operations of 600–1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

175 hp

Weight

10098 kg

Catalogue coverage

Variants represented

Richest spec table

57 rows

Recorded power

175 hp

Recorded weight

10098 kg

Transmissions

16-speed full power shift

Production years

1995-1998

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerChallenger (a part of Caterpillar)Reference

Agricultural Crawler tractorReference

Original price was $118,875 in 1998Reference

DrivecrawlerReference

Steeringdifferential powerReference

Wet disc brakesReference

Cab standard with air-conditioning.Reference

Engine

Caterpillar 6.6L 6-cyl dieselReference

Fuel tank321.7 LReference

Fuel tank473.1 LReference

Engine156.6 kWReference

Drawbar (claimed)111.9 kWReference

Caterpillar 3116Reference

turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement6.6 LReference

Bore/Stroke105 x 127 mmReference

Power156.6 kWReference

Rated RPM2100Reference

Starter volts12Reference

Coolant capacity32.6 LReference

Transmission

16-speed full power shiftReference

32-speed creeperReference

Typefull power shiftReference

Gears16 forward and 9 reverseReference

TypecreeperReference

Gears32 forward and 18 reverseReference

PTO & Hydraulics

PTO (claimed)130.5 kWReference

Typevariable-displacement load-sensing pressure-compensatedReference

Pressure189.6 barReference

Valves3 or 4Reference

Pump flow118.1 lpmReference

Rear TypeIII/IIReference

Controldraft controlReference

Rear lift5670 kgReference

Rear lift6804 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulic wet discReference

Rear PTO Type1000 (1.75)Reference

Engine RPM1000@1900Reference

Dimensions

Wheelbase218 cmReference

Weight10098 kgReference

16-inch tracksReference

Length535 cmReference

Width231 cmReference

Height (cab)304 cmReference

Height (exhaust)317 cmReference

Gauge152/172/182/193/203/223/228 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Challenger 35 Tracks

Width40 cmReference

Width45 cmReference

Width50 cmReference

Width63 cmReference

Width81 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
