Tractor · 1995Unverified

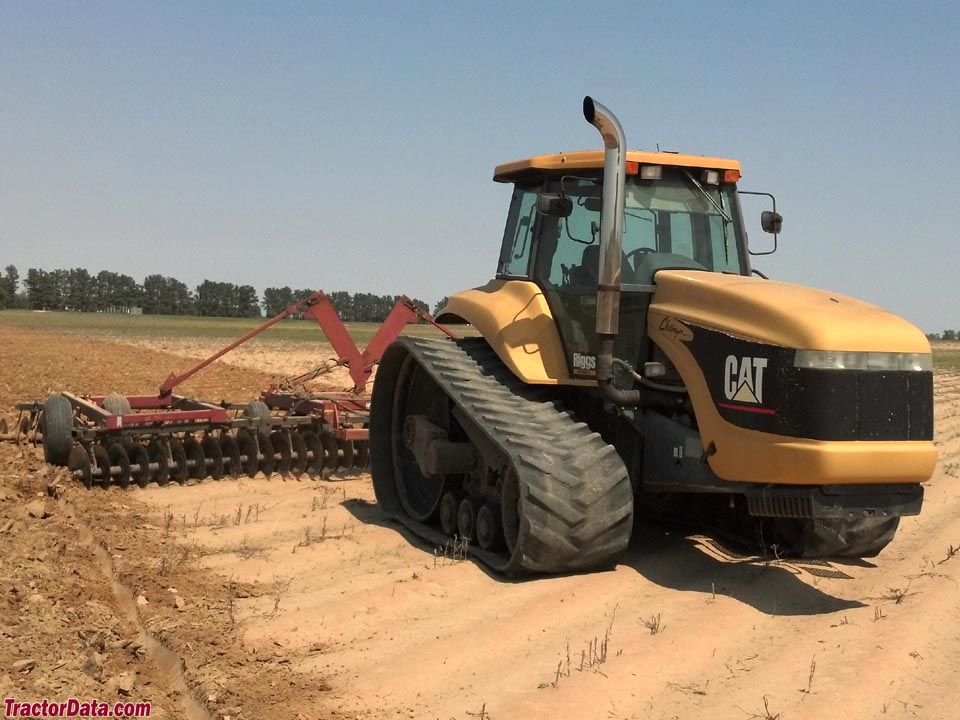

Challenger 45

Name: Challenger 45
Brand: Challenger

Challenger 45 — Agricultural Crawler tractor · 200 hp. Reference specifications; pending source verification.

The Challenger 45 is a high-powered tractor, rated at 200 hp, which positions it within the more powerful machines in its class. Manufactured from 1995 to 1998, it features a 6-cylinder turbocharged diesel liquid-cooled engine. This engine drives a tracked undercarriage with a powershift transmission, and the listed weight of the tractor is 10296 kg. Its intended application is in areas of approximately 600–1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

200 hp

Weight

10296 kg

Catalogue coverage

Variants represented

Richest spec table

56 rows

Recorded power

200 hp

Recorded weight

10296 kg

Transmissions

16-speed full power shift

Production years

1995-1998

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerChallenger (a part of Caterpillar)Reference

Agricultural Crawler tractorReference

Original price was $126,700 in 1998Reference

DrivecrawlerReference

Steeringdifferential powerReference

Wet disc brakesReference

Cab standard with air-conditioning.Reference

Engine

Caterpillar 6.6L 6-cyl dieselReference

Fuel tank473.1 LReference

Engine179.0 kWReference

Drawbar (claimed)126.8 kWReference

Caterpillar 3116Reference

turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement6.6 LReference

Bore/Stroke105 x 127 mmReference

Power179.0 kWReference

Rated RPM2100Reference

Starter volts12Reference

Coolant capacity32.6 LReference

Transmission

16-speed full power shiftReference

32-speed creeperReference

Typefull power shiftReference

Gears16 forward and 9 reverseReference

TypecreeperReference

Gears32 forward and 18 reverseReference

PTO & Hydraulics

PTO (claimed)149.1 kWReference

Typevariable-displacement load-sensing pressure-compensatedReference

Pressure189.6 barReference

Valves3 or 4Reference

Pump flow118.1 lpmReference

Rear TypeIII/IIReference

Controldraft controlReference

Rear lift5670 kgReference

Rear lift6804 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulic wet discReference

Rear PTO Type1000 (1.75)Reference

Engine RPM1000@1900Reference

Dimensions

Wheelbase218 cmReference

Weight10296 kgReference

16-inch tracksReference

Length535 cmReference

Width231 cmReference

Height (cab)304 cmReference

Height (exhaust)317 cmReference

Gauge152/172/182/193/203/223/228 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Challenger 45 Tracks

Width40 cmReference

Width45 cmReference

Width50 cmReference

Width63 cmReference

Width81 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
