Tractor · 1995Unverified

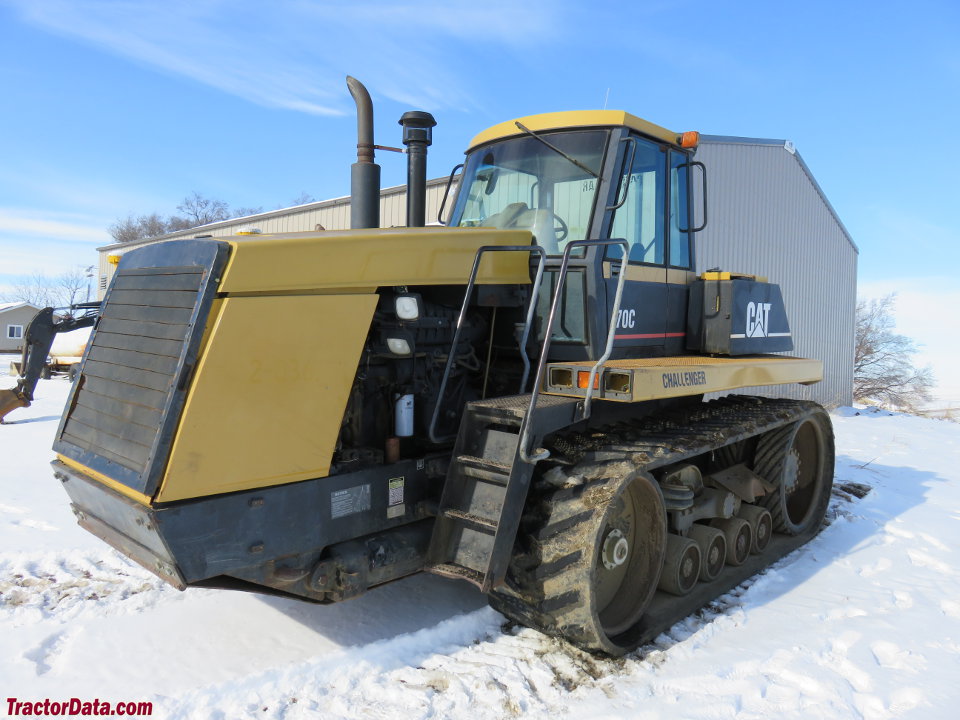

Challenger 70C
Challenger 70C — Agricultural Crawler tractor · 250 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
250 hp
Weight
16186 kg
Hover a source tag to verify
Overview
ManufacturerChallenger (a part of Caterpillar)Reference
Agricultural Crawler tractorReference
Built in Peoria, Illinois, USAReference
DrivecrawlerReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard.Reference
Engine
Caterpillar 10.5L 6-cyl dieselReference
Engine212.5 kWReference
Drawbar (claimed)167.8 kWReference
Caterpillar 3306 DITAReference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement10.5 LReference
Bore/Stroke121 x 152 mmReference
Power212.5 kWReference
Fuel systemdirect injectionReference
Air cleanerdual dry elementsReference
Pre-heatingether injectionReference
Pre-heatingblock heaterReference
Rated RPM2100Reference
StarterelectricReference
Starter volts12Reference
Oil capacity26.0 LReference
Coolant capacity56.8 LReference
Transmission
10-speed full power shiftReference
Typefull power shiftReference
Gears10 forward and 2 reverseReference
Oil capacity56.8 LReference
PTO & Hydraulics
PTO (claimed)186.4 kWReference
Hydraulic system109.8 LReference
Typeclosed centerReference
Capacity109.8 LReference
Pressure175.8 barReference
Valves4Reference
Pump flow102.2 lpmReference
Pump flow132.5 lpmReference
Steering flow232.4 lpmReference
Steering press.419.9 barReference
Rear PTO Type1000Reference
Capacities
Fuel791.1 LReference
Dimensions
Wheelbase272 cmReference
Weight16186 kgReference
30-inch tracksReference
Length589 cmReference
Width304 cmReference
Height (cab)325 cmReference
Height (exhaust)365 cmReference
Operating weight16186 kgReference
Clearance (drawbar)38 cmReference
Gauge228 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps115Reference
Batteries2Reference
Battery CCA750Reference
Battery volts12Reference
Challenger 70C Tracks
Width76 cmReference
Length on ground272 cmReference
Area on ground4.1 m²Reference
Ground pressure0.4 barReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
