Tractor · 2005Unverified

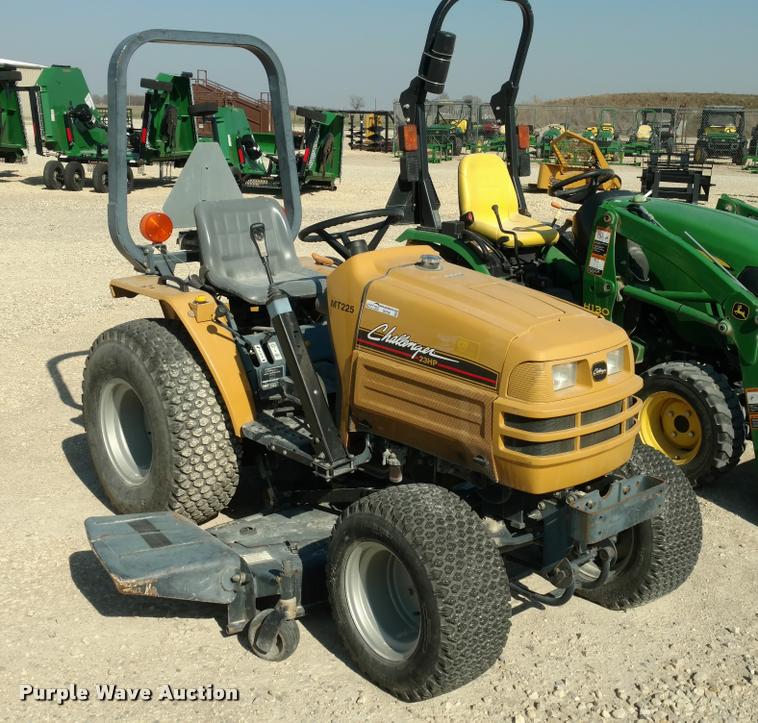

Challenger MT225B
Challenger MT225B — MT200B Series · 23 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
23 hp
Weight
729 kg
Hover a source tag to verify
Overview
DistributorChallenger (a part of AGCO)Reference
ManufacturerIsekiReference
Compact Utility tractorReference
Built in Matsuyama, JapanReference
Four-wheel driveReference
Final drivesspur gearReference
Differential lockmechanical rearReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Two-post fixed ROPS.Reference
Variants
1523similar Massey Ferguson modelReference
Engine
Iseki 1.1L 3-cyl dieselReference
Engine (gross)16.8 kWReference
Engine (net)16.4 kWReference
Iseki E3312Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.1 LReference
Bore/Stroke78 x 78 mmReference
Power (net)16.4 kWReference
Power (gross)16.8 kWReference
Fuel systemindirect injectionReference
Air cleanerdryReference
Pre-heatingglow plugsReference
Compression22.5:1Reference
Rated RPM2600Reference
Idle RPM1250-2860Reference
Starter volts12Reference
Oil capacity2.7 LReference
Coolant capacity7.1 LReference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
Oil capacity14.0 LReference
PTO & Hydraulics
PTO (claimed)13.1 kWReference
Typeopen centerReference
Pressure137.2 barReference
Rear valves2Reference
Mid valves2Reference
Pump flow20.8 lpmReference
Total flow30.7 lpmReference
Steering flow10.0 lpmReference
Steering press.102.9 barReference
Rear TypeIReference
Controlposition and response controlReference
Rear lift (at ends)539 kgReference
Rear lift (at 24"/610mm)268 kgReference
Rear Armsfixed link endsReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540 (1.375)Reference
Mid PTOstandardReference
Mid PTO Type2000 (1.00)Reference
Capacities
Fuel25.0 LReference
Front diff.2.7 LReference
Max capacity1399 kgReference
Dimensions
Wheelbase151 cmReference
Weight729 kgReference
Front tire6-12Reference
Rear tire9.5-16Reference
Ag front6-12Reference
Ag rear9.5-16Reference
Lawn/turf front23x10.50-12Reference
Lawn/turf rear33x12.50-16.5Reference
Industrial front23x8.50-12Reference
Industrial rear12x16.5Reference
Length259 cmReference
Width100 cmReference
Height (ROPS)195 cmReference
Ground clearance26 cmReference
Front axle878 mmReference
Flange rear axle853 mmReference
Front tread90 cmReference
Rear tread90 cmReference
729 kgReference
Max front axle650 kgReference
Max rear axle749 kgReference
Challenger MT225B attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery CCA435Reference
Battery volts12Reference
Speeds
With 9.5-16 R1 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
