Tractor · 2005Unverified

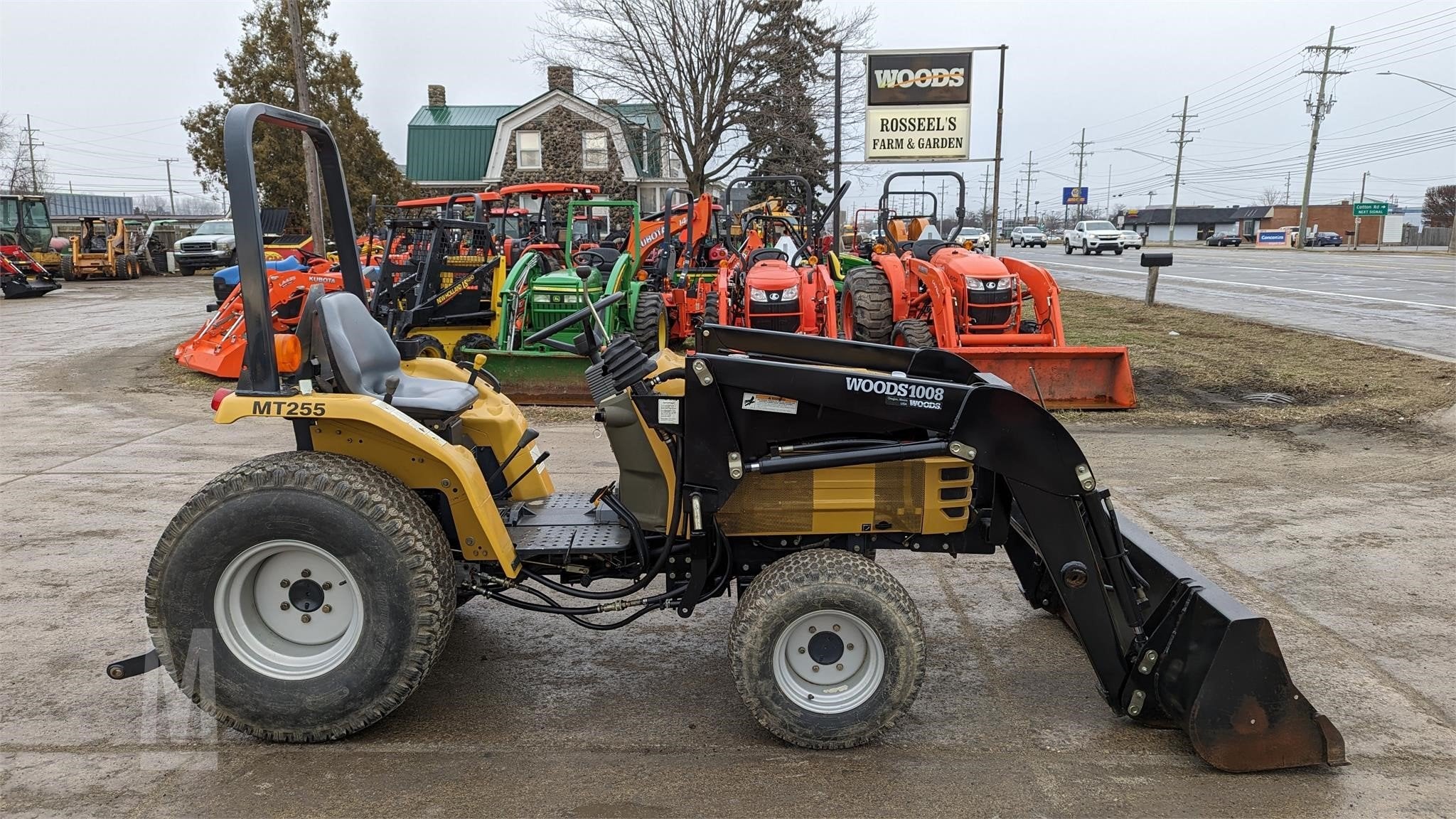

Challenger MT255B
Challenger MT255B — MT200B Series · 28 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
28 hp
Weight
2370 to 2423 pounds
Hover a source tag to verify
Overview
DistributorChallenger (a part of AGCO)Reference
ManufacturerIsekiReference
Compact Utility tractorReference
Built in Matsuyama, JapanReference
Four-wheel driveReference
Final drivesspur gearReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post foldable ROPSReference
Variants
1528similar Massey Ferguson modelReference
Engine
Iseki 1.5L 3-cyl dieselReference
Engine (gross)21.2 kWReference
Engine (net)20.9 kWReference
Iseki E3CFReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke86 x 84 mmReference
Power (net)20.9 kWReference
Power (gross)21.2 kWReference
Fuel systemindirect injectionReference
Air cleanerdual-stage dryReference
Pre-heatingglow plugsReference
Rated RPM2500Reference
Idle RPM930-2750Reference
Starter volts12Reference
Oil capacity3.6 LReference
Coolant capacity5.5 LReference
Transmission
hydrostaticReference
9-speed gearReference
Gear Shipping1075 kgReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
Oil capacity29.0 LReference
TypegearReference
Gears9 forward and 3 reverseReference
Clutchdry dual stageReference
Oil capacity18.0 LReference
Three non-synchronized gears (1-3), plus reverse (R) in three non-synchronized ranges.Reference
PTO & Hydraulics
Gear PTO (claimed)18.0 kWReference
Hydro PTO (claimed)16.6 kWReference
Gear Hydraulic system18.2 LReference
Hydro Hydraulic system29.1 LReference
Typeopen centerReference
Gear Capacity18.2 LReference
Hydro Capacity29.1 LReference
Pressure147.1 barReference
Rear valves2Reference
Mid valves2Reference
Pump flow28.0 lpmReference
Total flow37.9 lpmReference
Steering flow9.8 lpmReference
Steering press.118.0 barReference
Rear TypeIReference
Controlposition and response controlReference
Controltop-link draft controlReference
Rear lift (at ends)1099 kgReference
Rear lift (at 24"/610mm)730 kgReference
Rear Armsfixed link endsReference
Gear Rear PTOliveReference
Hydro Rear PTOindependentReference
Gear Clutchdry discReference
Hydro Clutchelectro-hydraulic wet discReference
Rear PTO Type540 (1.375)Reference
Gear Mid PTOliveReference
Hydro Mid PTOindependentReference
Mid PTO Type2000 (1.00)Reference
Capacities
Fuel29.9 LReference
Max capacity1880 kgReference
Dimensions
Wheelbase166 cmReference
Weight2370 to 2423 poundsReference
Front tire7-14Reference
Rear tire9.5-24Reference
Ag front7-14Reference
Ag rear9.5-24Reference
Lawn/turf front24x8.50-14Reference
Lawn/turf rear36x13.50-15Reference
Industrial front25x8.50-14Reference
Industrial rear12.50/80-18Reference
Length285 cmReference
Width128 cmReference
Height (ROPS)204 cmReference
Ground clearance25 cmReference
Front axle999 mmReference
Flange rear axle949 mmReference
Front tread100 cmReference
Rear tread95 cmReference
Hydro Shipping1099 kgReference
Max front axle874 kgReference
Max rear axle1005 kgReference
Challenger MT255B attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery CCA582Reference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
Challenger MH10B Backhoe
Backhoe typeChallenger MH10B BackhoeReference
Transport height162 cmReference
Bucket width25 cmReference
Bucket width30 cmReference
Bucket width40 cmReference
Digging depth198 cmReference
Reach from pivot259 cmReference
Bucket Rotation165°Reference
Swing Arc180°Reference
Bucket force1088 kgReference
Dipperstick force657 kgReference
Speeds
With 12.5/80-18 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
