Tractor · 2005Unverified

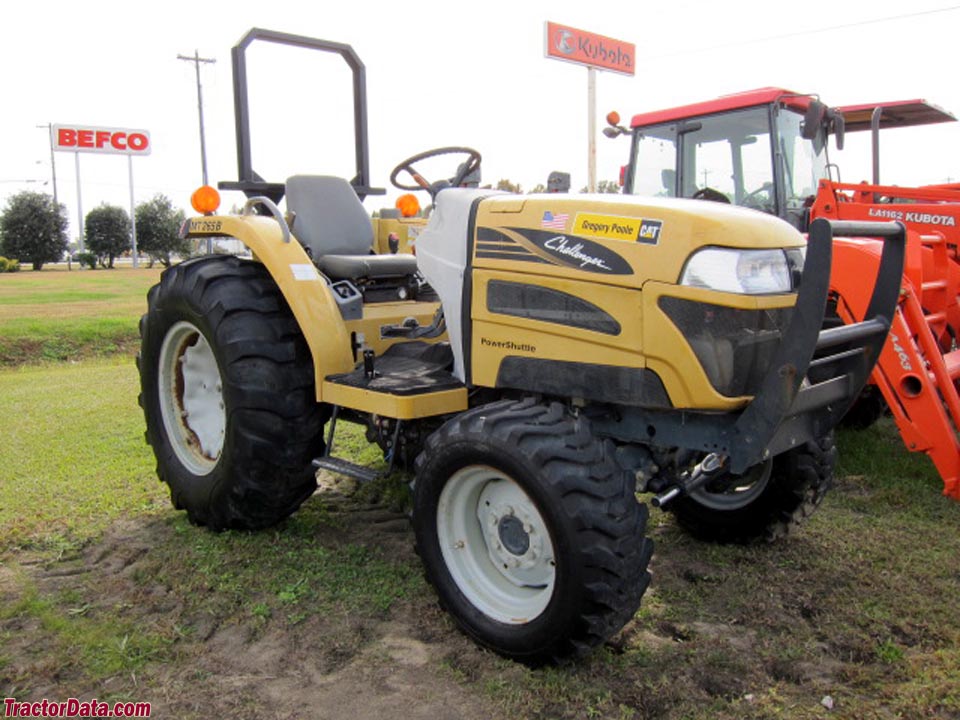

Challenger MT265B
Challenger MT265B — MT200B Series · 33 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
33 hp
Weight
1422 kg
Hover a source tag to verify
Overview
DistributorChallenger (a part of AGCO)Reference
ManufacturerIsekiReference
Compact Utility tractorReference
Built in Matsuyama, JapanReference
Four-wheel driveReference
Final drivesspur gearReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post foldable ROPSReference
Variants
1533similar Massey Ferguson modelReference
Engine
Iseki 1.5L 3-cyl dieselReference
Fuel tank40.1 LReference
Engine (gross)24.6 kWReference
Engine (net)23.9 kWReference
Iseki E3CD-VB40Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke87 x 84 mmReference
Power (net)23.9 kWReference
Power (gross)24.6 kWReference
Fuel systemindirect injectionReference
Air cleanerdual-stage dryReference
Pre-heatingglow plugsReference
Compression21.7:1Reference
Rated RPM2600Reference
Idle RPM980-2860Reference
Starter volts12Reference
Oil capacity4.7 LReference
Coolant capacity6.7 LReference
Transmission
hydrostaticReference
8-speedReference
12-speed partially synchronized with power shuttleReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
Oil capacity31.0 LReference
TransmissionSynchroShuttleReference
Gears8 forward and reverseReference
Clutchmechanical dry discReference
Four non-synchronized gears in two non-synchronized ranges, with synchronized shuttle shift.Reference
TransmissionPowerShuttleReference
Typepartially synchronized with power shuttleReference
Gears12 forward and reverseReference
Clutchdry main, wet shuttleReference
Three ranges with four gears each. Transmission can be shifted from forward to reverse on the go, without the clutch. In-range gear changes can be made on the go with the clutch.Reference
PTO & Hydraulics
Gear PTO (claimed)19.4 kWReference
Hydro PTO (claimed)18.3 kWReference
Typeopen centerReference
Pressure156.9 barReference
Rear valves2Reference
Mid valves2Reference
Pump flow31.4 lpmReference
Total flow48.1 lpmReference
Total flow51.9 lpmReference
Steering flow16.7 lpmReference
Steering flow20.4 lpmReference
Steering press.156.9 barReference
Rear TypeIReference
Controlposition and response controlReference
Controloptional top-link draft controlReference
Rear lift (at ends)1270 kgReference
Rear lift (at 24"/610mm)1149 kgReference
Rear Armsfixed link ends ((sync shuttle)Reference
Rear Armstelescopic link ends (power shuttle/hydro)Reference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540 (1.375)Reference
Mid PTOindependentReference
Mid PTO Type2000 (1.00)Reference
Dimensions
Wheelbase177 cmReference
Weight1422 kgReference
Front tire8-16Reference
Rear tire12.4-24Reference
Ag front8-16Reference
Ag rear12.4-24Reference
Ag rear13.6-24Reference
Lawn/turf front27x8.50-15Reference
Lawn/turf rear41x14.00-20Reference
Industrial front10-16.5Reference
Industrial rear14.9-24Reference
Length307 cmReference
Width157 cmReference
Height (ROPS)221 cmReference
Ground clearance35 cmReference
Front tread114 cmReference
Rear tread118 to 149 cmReference
1422 kgReference
Max front axle1799 kgReference
Max rear axle3160 kgReference
Challenger MT265B attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery CCA630Reference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
Challenger MH20B Backhoe
Backhoe typeChallenger MH20B BackhoeReference
Transport height190 cmReference
Bucket width25 cmReference
Bucket width30 cmReference
Bucket width40 cmReference
Bucket width60 cmReference
Bucket width93 cmReference
Digging depth228 cmReference
Reach from pivot284 cmReference
Bucket Rotation165°Reference
Swing Arc180°Reference
Bucket force1474 kgReference
Dipperstick force861 kgReference
Capacities
Max capacity3000 kgReference
Speeds
With 12.4-24 R1 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
