Tractor · 2003Unverified

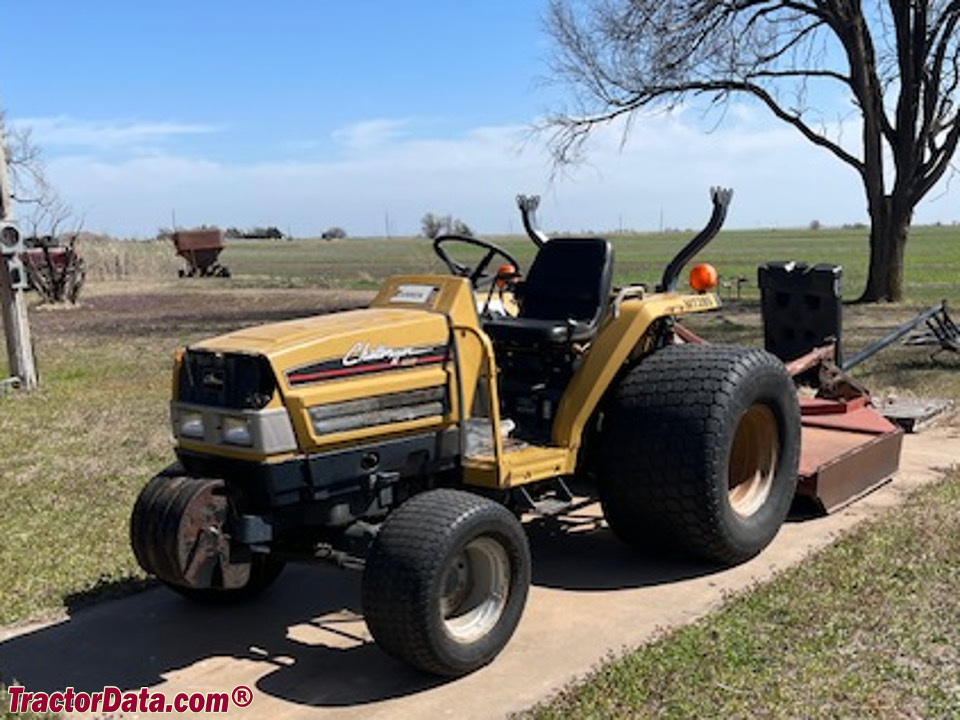

Challenger MT285
Challenger MT285 — MT200 Series · 40 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
40 hp
Weight
1439 kg
Hover a source tag to verify
Overview
DistributorChallenger (a part of AGCO)Reference
ManufacturerIsekiReference
Compact Utility tractorReference
Built in Matsuyama, JapanReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Variants
1440similar Massey Ferguson modelReference
Engine
Iseki 1.5L 3-cyl dieselReference
Fuel tank29.9 LReference
Engine (gross)29.9 kWReference
IsekiReference
turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke87 x 84 mmReference
Power (gross)29.9 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed power shuttleReference
hydrostaticReference
Typepower shuttleReference
Gears16 forward and reverseReference
Four synchronized gears (1-4) in four ranges with power shuttle.Reference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Gear PTO (claimed)24.2 kWReference
Hydro PTO (claimed)23.6 kWReference
Typeopen centerReference
Pressure146.9 barReference
Pump flow29.1 lpmReference
Total flow46.2 lpmReference
Total flow36.3 lpmReference
Steering flow17.0 lpmReference
Rear TypeIReference
Controlposition controlReference
Controldraft controlReference
Rear lift (at ends)1249 kgReference
Rear lift (at ends)1300 kgReference
Rear lift (at 24"/610mm)952 kgReference
Rear lift (at 24"/610mm)879 kgReference
Rear PTOindependentReference
Clutchwet discReference
Rear PTO Type540 (1.375)Reference
Mid PTOindependentReference
Mid PTO Type2000Reference
Dimensions
Wheelbase173 cmReference
Weight1439 kgReference
Front tire8-16Reference
Rear tire13.6-24Reference
Standard tires (ag)Front: 8-16. Rear: 13.6-24Reference
Lawn/turf front212/80D-15Reference
Lawn/turf rear355/80D-20Reference
Lawn/turf front305R343Reference
Lawn/turf rear610R470Reference
Industrial front25x8.50-14Reference
Industrial rear15-19.5Reference
Industrial front10-16.5Reference
Industrial rear14.9-24Reference
Length308 cmReference
Width153 cmReference
Height (ROPS)236 cmReference
Height (Folded ROPS)179 cmReference
Front tread111 cmReference
Rear tread114 to 144 cmReference
Challenger MT285 attachments
72" mid-mount mower deckReference
snowblowerReference
bladeReference
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Attachment overview
72" mid-mount mower deckReference
SnowblowerReference
BladeReference
Front-end loaderReference
BackhoeReference
72" Mower deck
Typemid-mount Challenger MG716Reference
Type3-bladeReference
Cutting width182 cmReference
Challenger MH20 Backhoe
Backhoe typeChallenger MH20 BackhoeReference
Transport height184 cmReference
Bucket width25 cmReference
Bucket width30 cmReference
Bucket width40 cmReference
Bucket width60 cmReference
Bucket width93 cmReference
2-Foot flat digging depth243 cmReference
Reach from pivot284 cmReference
Bucket Rotation165°Reference
Swing Arc180°Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
