Tractor · 2005Unverified

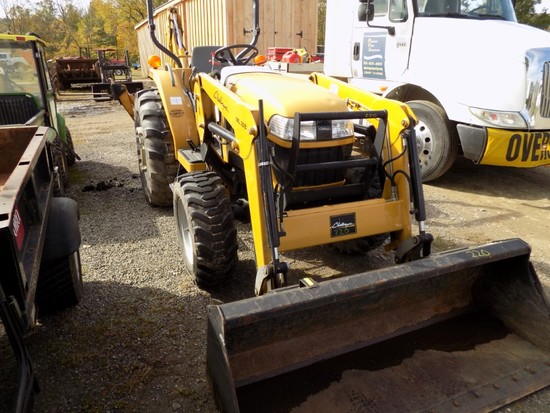

Challenger MT297B

Name: Challenger MT297B
Brand: Challenger

Challenger MT297B — MT200B Series · 46 hp. Reference specifications; pending source verification.

The Challenger MT297B is a tractor model with a rated power output of 46 hp, positioning it at the lighter end of its class. It was manufactured between 2005 and 2008. The tractor features a 4-cylinder diesel liquid-cooled engine, combined with four-wheel drive and a power-shuttle transmission. Its operating weight is listed at 1849 kg, suitable for operations covering up to 200 ac.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

46 hp

Weight

1849 kg

Catalogue coverage

Variants represented

Richest spec table

50 rows

Recorded power

46 hp

Recorded weight

1849 kg

Transmissions

12-speed

Production years

2005-2008

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

DistributorChallenger (a part of AGCO)Reference

ManufacturerIsekiReference

Compact Utility tractorReference

Built in Matsuyama, JapanReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS.Reference

Variants

1560similar Massey Ferguson modelReference

Engine

Iseki 3.0L 4-cyl dieselReference

Fuel tank50.0 LReference

Engine44.1 kWReference

IsekiReference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.0 LReference

Power44.1 kWReference

Rated RPM2600Reference

Starter volts12Reference

Transmission

12-speedReference

TransmissionPowerShuttleReference

Gears12 forward and reverseReference

Three ranges with four gears each. Transmission can be shifted from forward to reverse on the go, without the clutch. In-range gear changes can be made on the go with the clutch.Reference

PTO & Hydraulics

PTO (claimed)34.6 kWReference

Typeopen centerReference

Pressure156.9 barReference

Pump flow43.5 lpmReference

Total flow66.2 lpmReference

Steering flow22.7 lpmReference

Rear TypeII/IReference

Rear lift (at ends)1700 kgReference

Rear lift (at 24"/610mm)1500 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Dimensions

Wheelbase200 cmReference

Weight1849 kgReference

Front tire9.5-16Reference

Rear tire16.9-26Reference

Ag front9.5-16Reference

Ag rear16.9-26Reference

Industrial front12-16.5Reference

Industrial rear18.4-24Reference

Length341 cmReference

Width177 cmReference

Height232 cmReference

Ground clearance39 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
