Tractor · 2006Unverified

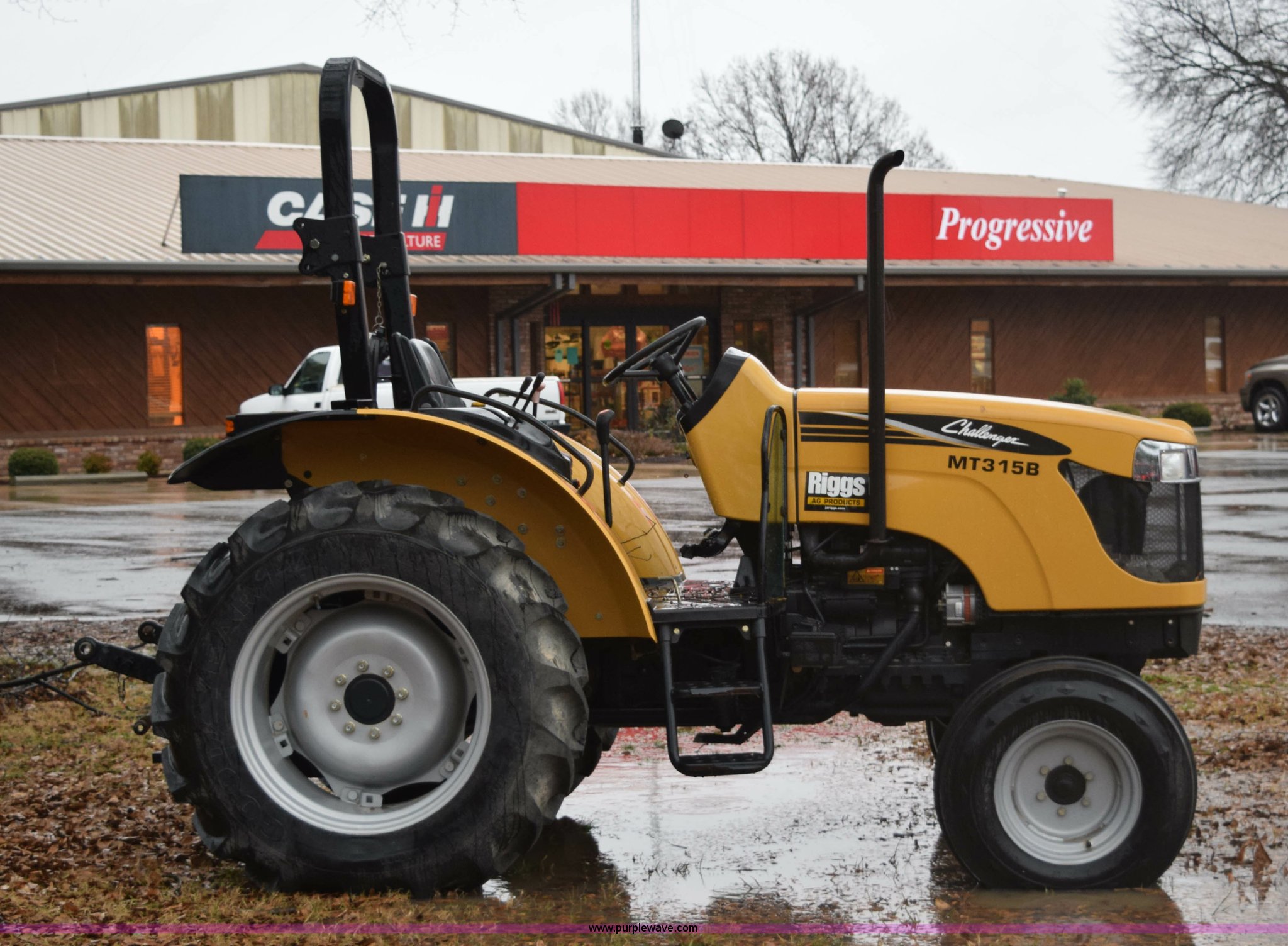

Challenger MT315B
Challenger MT315B — MT300B Series · 58 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
58 hp
Weight
5291 to 7716 pounds
Hover a source tag to verify
Overview
DistributorChallenger (a part of AGCO)Reference
ManufacturerAgritaliaReference
Utility tractorReference
Built in Rovigo, ItalyReference
Two- or four-wheel driveReference
Differential lockelectro-hydraulicReference
Power steeringReference
Hydraulic wet disc brakesReference
Two-post folding ROPS. Cab with air-conditioning optional.Reference
Engine
SisuDiesel 3.3L 3-cyl dieselReference
Fuel tank109.8 LReference
Engine (gross)43.0 kWReference
SisuDiesel 33 DTReference
turbocharged dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement3.3 LReference
Bore/Stroke108 x 120 mmReference
EmissionsTier IIReference
Power (gross)43.0 kWReference
Fuel systemdirect injectionReference
Compression18.5:1Reference
Rated RPM2150Reference
StarterelectricReference
Starter volts12Reference
Oil capacity10.5 LReference
Transmission
12-speed synchronized shuttleReference
12-speed power shuttleReference
Typesynchronized shuttleReference
Gears12 forward and reverseReference
2WD Oil capacity37.0 LReference
4WD Oil capacity39.0 LReference
Four gears in three ranges with mechanical shuttle.Reference
Typepower shuttleReference
2WD Oil capacity36.0 LReference
4WD Oil capacity9.7 LReference
Four gears in three ranges with power shuttle. Push-button clutch allows gear shifting without the use of the foot clutch.Reference
PTO & Hydraulics
PTO (claimed)33.6 kWReference
Typeopen centerReference
Pressure190.0 barReference
Rear valves2 or 3Reference
Mid valves2Reference
Pump flow59.8 lpmReference
Total flow84.8 lpmReference
Rear TypeII/IReference
Controlposition and draft controlReference
Rear lift (at ends)2494 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540 (1.375)Reference
Rear PTO Type540/540EReference
Dimensions
Wheelbase210 cmReference
Weight5291 to 7716 poundsReference
Length375 cmReference
Width193 cmReference
Height (ROPS)266 cmReference
Height (cab)260 cmReference
2399 kgReference
2600 kgReference
3499 kgReference
Challenger MT315B attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps80Reference
Battery CCA675Reference
Battery volts12Reference
Attachment overview
Challenger ML72B loaderReference
Challenger ML92B loaderReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
