Tractor · 2017Unverified

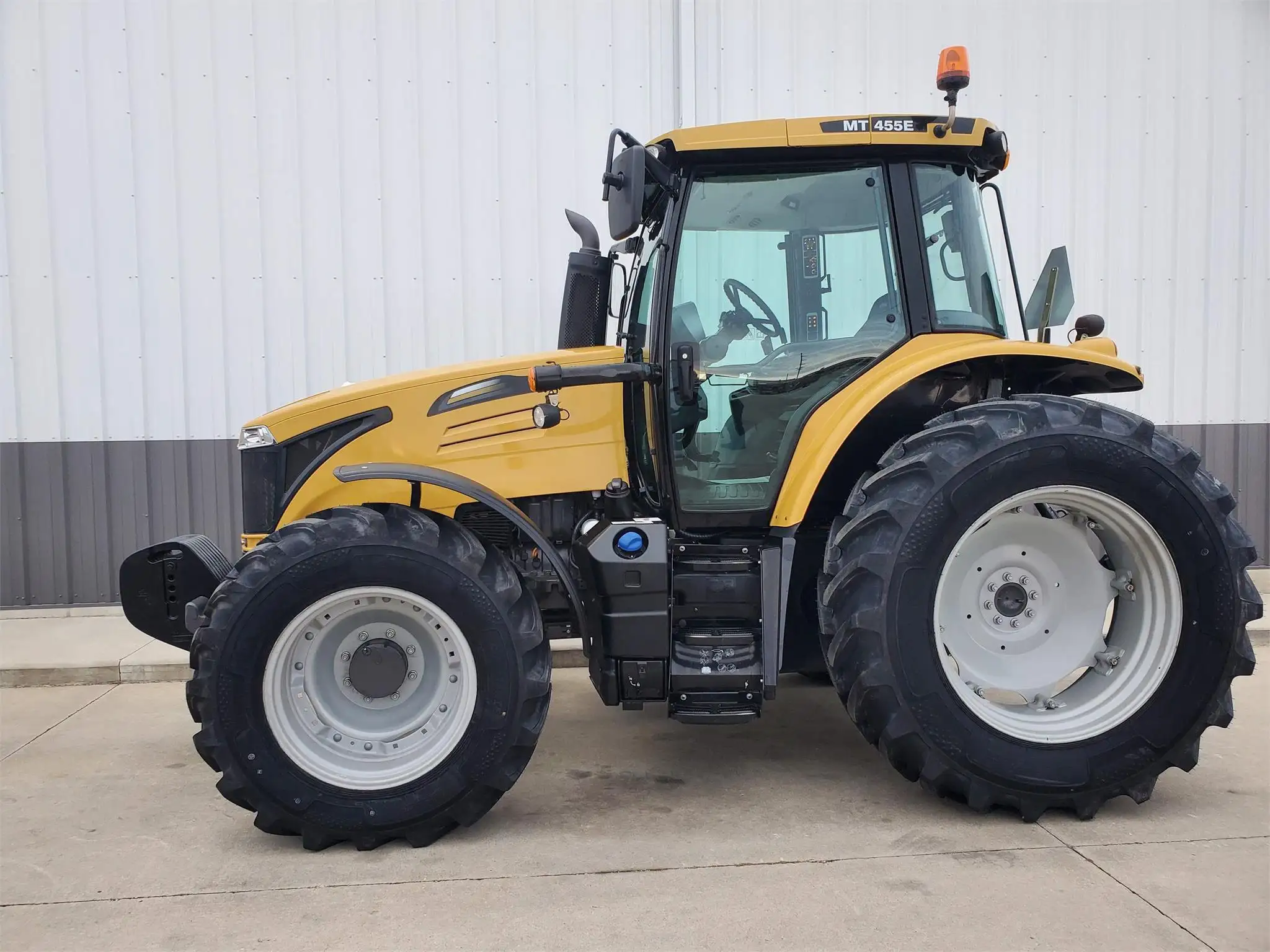

Challenger MT455E
Challenger MT455E — MT400E Series · 105 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
105 hp
Weight
6999 kg
Hover a source tag to verify
Overview
ManufacturerChallenger (a part of AGCO)Reference
Utility tractorReference
Four-wheel driveReference
Differential lockelectro-hydraulic front and rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning. Auto-Guide 3000 ((Optional))Reference
Variants
6712Ssimilar Massey Ferguson modelReference
Engine
AGCO Power 4.9L 4-cyl dieselReference
Fuel tank253.6 LReference
Exhaust fluid (DEF)29.9 LReference
Engine82.0 kWReference
AGCO PowerReference
intercooled turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.9 LReference
Bore/Stroke108 x 134 mmReference
EmissionsTier IVReference
Emission controlselective catalytic reductionReference
Power82.0 kWReference
Maximum Power89.5 kWReference
Fuel systemhigh-pressure common rail direct injectionReference
Rated RPM2100Reference
Torque691.6 NmReference
Torque RPM1600Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed four-speed power shiftReference
TransmissionAutoPower IVReference
Typefour-speed power shiftReference
Gears16 forward and reverseReference
Clutchhydraulic wet discReference
PTO & Hydraulics
PTO (claimed)78.3 kWReference
Typeopen centerReference
Valvesup to 5Reference
Pump flow98.4 lpmReference
Pump flow109.8 lpmReference
Pump flow189.2 lpmReference
Rear TypeIII/IIReference
Rear lift (at 24"/610mm)5100 kgReference
Rear Armstelescopic link endReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Rear PTO Type540/540E/1000/1000EReference
Dimensions
Wheelbase266 cmReference
Weight6999 kgReference
Width182 cmReference
Shipping weight6999 kgReference
Flange rear axleReference
Bar rear axleReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps175Reference
Charging amps240Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
