Tractor · 2014Unverified

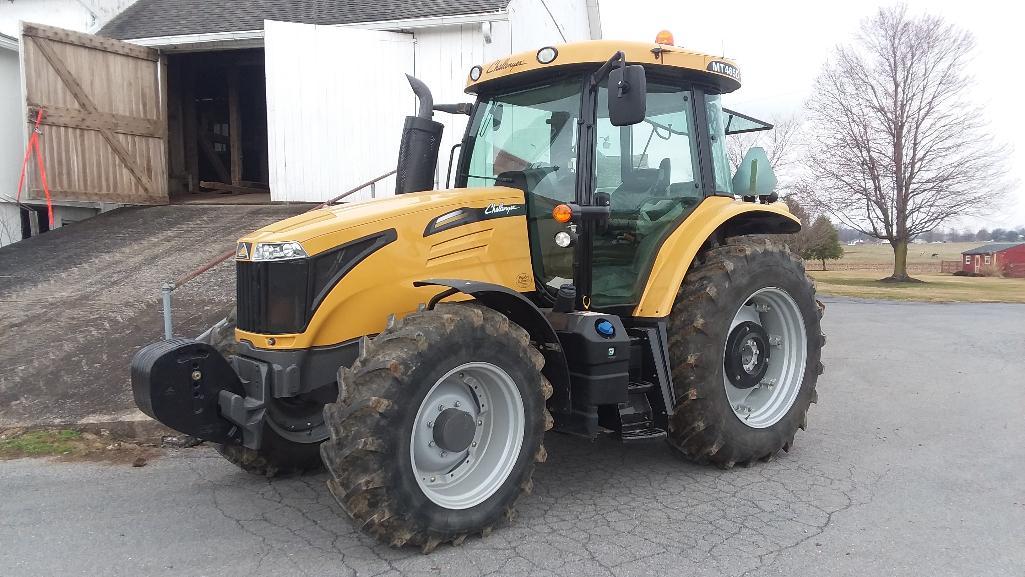

Challenger MT465D
Challenger MT465D — MT400D Series · 120 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
120 hp
Weight
5670 kg
Hover a source tag to verify
Overview
ManufacturerChallenger (a part of AGCO)Reference
Utility tractorReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
AGCO Power 4.9L 4-cyl dieselReference
Fuel tank242.2 LReference
Exhaust fluid (DEF)34.8 LReference
Engine (gross)89.5 kWReference
AGCO Power 49AWIReference
turbocharged air-to-air intercooled dieselReference
4-cylinder 16-valveReference
liquid-cooledReference
Displacement4.9 LReference
Bore/Stroke108 x 134 mmReference
EmissionsInterim Tier IVReference
Emission controlselective catalytic reduction (SCR)Reference
Power (gross)89.5 kWReference
Fuel systemelectronic high pressure common railReference
Air cleanerdual dry elementReference
Pre-heatingthermostartReference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed four speed power shiftReference
TransmissionAutoPower IVReference
Typefour speed power shiftReference
Gears16 forward and reverseReference
Clutchwet discReference
Four power shift gears in four ranges.Reference
PTO & Hydraulics
PTO (claimed)74.6 kWReference
Typeclosed center load sensing (CCLS)Reference
Typeopen center optionalReference
Valves2 to 4Reference
SCV flow56.8 lpmReference
SCV flow-unknown-Reference
SCV flow109.8 lpmReference
Rear TypeIII/IIReference
Controlelectronic lower link draft sensingReference
Rear lift (at 24"/610mm)5171 kgReference
DrawbarCat. 2Reference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase266 cmReference
Weight5670 kgReference
Shipping weight5670 kgReference
Flange rear axleReference
Bar rear axle82 by 2032 mmReference
Bar rear axle82 by 2667 mmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps175Reference
Batteries2Reference
Battery CCA600Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
