Tractor · 2014Unverified

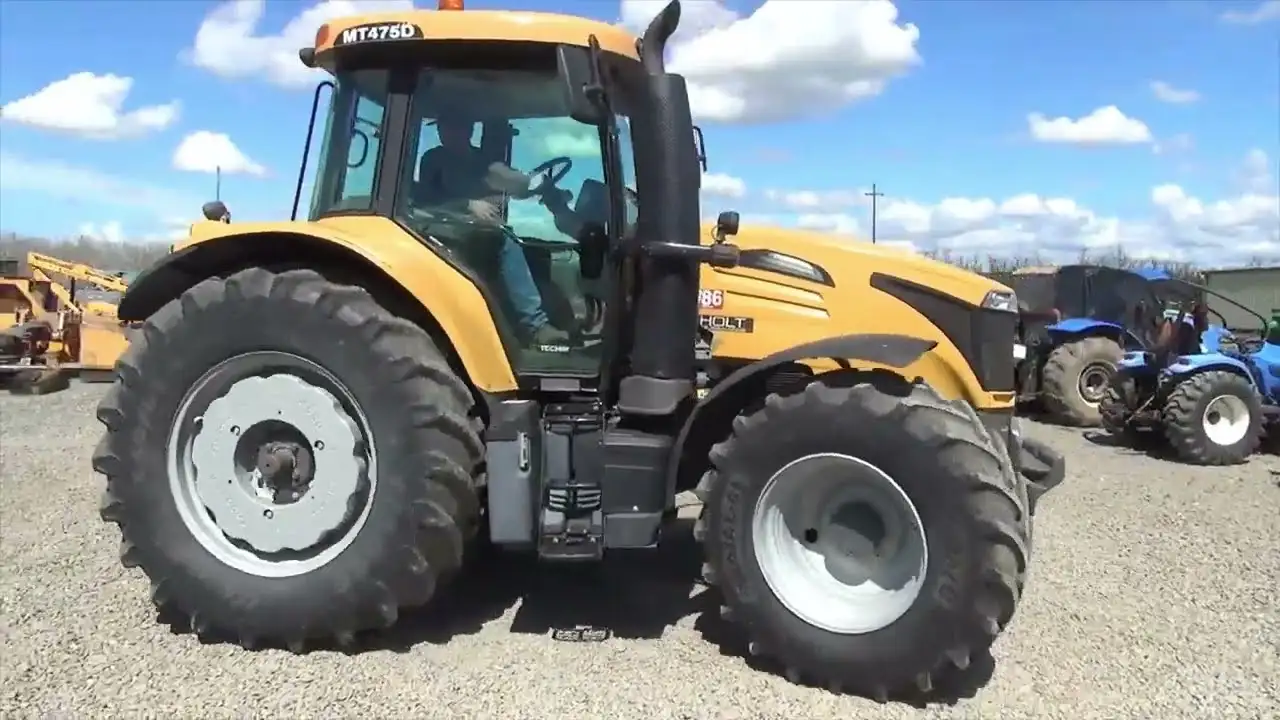

Challenger MT475D

Challenger MT475D — MT400D Series · 130 hp. Reference specifications; pending source verification.

The Challenger MT475D is a tractor featuring a rated power output of 130 hp, positioning it within the higher power range of its class. Produced between 2014 and 2016, this model is equipped with a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, paired with a four-wheel drive system and a continuously variable transmission. Its operating weight is listed at 5670 kg, and it is suitable for operations spanning 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power
130 hp
Max power
91.7 kW
Weight
5670 kg

Catalogue coverage

Variants represented
2
Richest spec table
104 rows
Recorded power
130 hp
Recorded weight
5670 kg
Transmissions
continuously variable transmission (CVT)
Production years
2014-2016
Verified variants
0

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerChallenger (a part of AGCO)Reference
Utility tractorReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Cab standard with air-conditioning.Reference

Variants

6614similar Massey Ferguson modelReference

Engine

AGCO Power 4.9L 4-cyl dieselReference
Fuel tank242.2 LReference
Exhaust fluid (DEF)34.8 LReference
Engine (gross)96.9 kWReference
Drawbar (tested)60.3 kWReference
AGCO Power 49AWIReference
turbocharged air-to-air intercooled dieselReference
4-cylinder 16-valveReference
liquid-cooledReference
Displacement4.9 LReference
Bore/Stroke108 x 134 mmReference
EmissionsInterim Tier IVReference
Emission controlselective catalytic reduction (SCR)Reference
Power (gross)96.9 kWReference
Fuel systemelectronic high pressure common railReference
Air cleanerdual dry elementReference
Pre-heatingthermostartReference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Max power91.7 kWReference
Power at rated engine speed82.0 kWReference
Max power60.3 kWReference
Fuel TypedieselReference
No of Cylinders4 cylinderReference
Rated engine speed2,200 RPMReference
Emissions complianceInterim Tier IV | selective catalytic reduction (SCR)Reference
Bore and stroke4.251x5.276 inchesReference
Cooling systemliquid-cooledReference

Transmission

continuously variable transmission (CVT)Reference
TransmissionTechstar CVTReference
Typecontinuously variable transmission (CVT)Reference
Gearsinfinite forward and reverseReference
Transmission TypeCVTReference
forward and reverse optionsTechstar CVT - infinite forward and infinite reverseReference
Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)74.6 kWReference
PTO (tested)91.7 kWReference
Typeclosed center load sensing (CCLS)Reference
Typeopen center optionalReference
Valves2 to 4Reference
SCV flow56.8 lpmReference
SCV flow-unknown-Reference
SCV flow109.8 lpmReference
Rear TypeIII/IIReference
Controlelectronic lower link draft sensingReference
Rear lift (at 24"/610mm)5171 kgReference
DrawbarCat. 2Reference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Rear PTO Type540/540E/1000Reference
Rear PTO Type540/540E/1000/1000EReference
Power at rated PTO speed88.7 kWReference

Dimensions

Wheelbase266 cmReference
Weight5670 kgReference
Shipping weight5670 kgReference
Bar rear axle94 by 2286 mmReference
Bar rear axle94 by 2870 mmReference

Electrical

GroundnegativeReference
Charging systemalternatorReference
Charging amps240 (2x 120)Reference
Charging amps350 (2x 175)Reference
Batteries2Reference
Battery CCA600Reference
Battery volts12Reference
Battery options2Reference
Total cold cranking amps600 CCAReference

Test results

Diesel CVT 4WDAugust 2013 - September 2013, Link: OCED Tractor Test 2793 fileReference
PTO performanceReference
Fuel use26.9 l/hourReference
Fuel use25.7 l/hourReference
Fuel use26.5 l/hourReference
Drawbar performanceReference
Fuel use25.4 l/hourReference
Pull at 7.98KPHReference
Max pull6221 kgReference
Pull at 3.56KPHReference

General

Make & ModelChallenger (a part of AGCO)Reference
Cruise controlAvailableReference
SCV controlJoystickReference
Drawbar categoryCat. 2Reference
Rear Axle TypeBar : 3.74 by 90 | Bar : 3.74 by 113 inchesReference

Capacities

Capacity299 ciReference
Diesel exhaust fluid (DEF) tank34.8 LReference

Hydraulics

Capacity Valves16 ValvesReference
Hydraulics Typeclosed center load sensing (CCLS) | open center optionalReference
Remote Valves2 to 4 ValvesReference
Rear Hitch category (SAE designation)Category III/IIReference
Rear Hitch Sensing Typeelectronic lower link draft sensingReference

PTO

PTO Power100 hpReference
Rear PTO PowerAvailableReference
Rear PTO RPM1,000 RPMReference

Steering & brakes

BrakesWet discReference
Steering typehydrostatic powerReference

Dimensions & weight

Overall weight5,669.9 kgReference

Operator station

Cab AvailabilityAvailableReference
Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
