Tractor · 2014Unverified

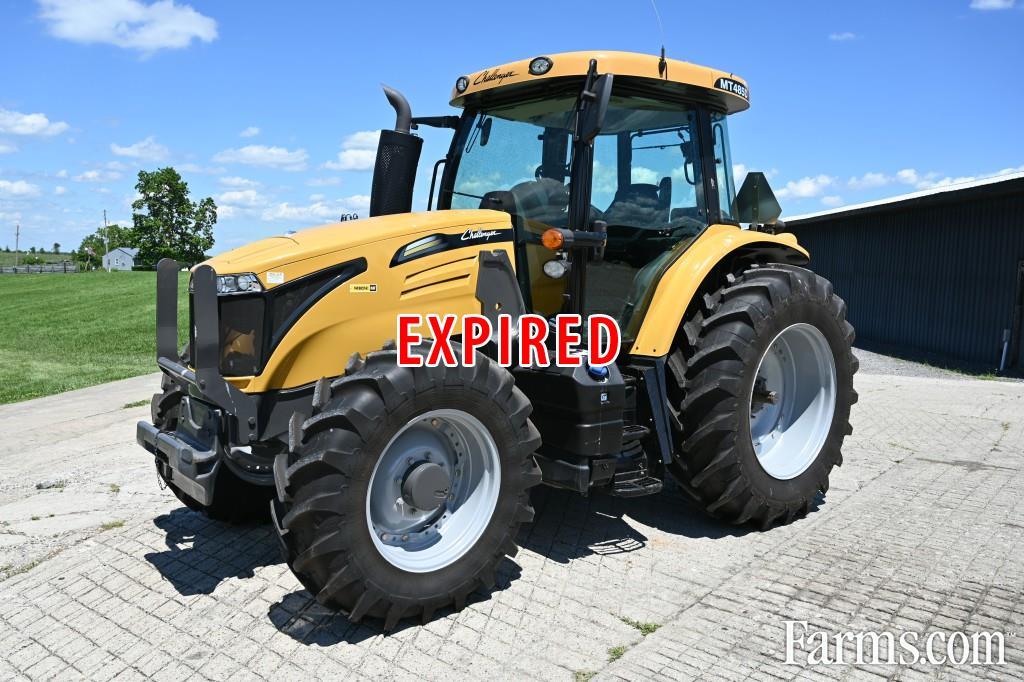

Challenger MT485D
Challenger MT485D — MT400D Series · 135 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
135 hp
Max power
102.1 kW
Weight
5670 kg
Hover a source tag to verify
Overview
ManufacturerChallenger (a part of AGCO)Reference
Utility tractorReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Cab standard with air-conditioning.Reference
Variants
6615similar Massey Ferguson modelReference
Engine
AGCO Power 4.9L 4-cyl dieselReference
Fuel tank242.2 LReference
Exhaust fluid (DEF)34.8 LReference
Engine (gross)100.7 kWReference
Drawbar (tested)73.8 kWReference
AGCO Power 49AWIReference
turbocharged air-to-air intercooled dieselReference
4-cylinder 16-valveReference
liquid-cooledReference
Displacement4.9 LReference
Bore/Stroke108 x 134 mmReference
EmissionsInterim Tier IVReference
Emission controlselective catalytic reduction (SCR)Reference
Power (gross)100.7 kWReference
Power (gross)104.4 kWReference
Fuel systemelectronic high pressure common railReference
Air cleanerdual dry elementReference
Pre-heatingthermostartReference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Max power102.1 kWReference
Power at rated engine speed89.3 kWReference
Max power65.5 kWReference
Max power101.8 kWReference
Power at rated engine speed89.0 kWReference
Max power73.8 kWReference
Transmission
16-speed four speed power shiftReference
24-speed six speed power shiftReference
continuously variable transmission (CVT)Reference
TransmissionAutoPower IVReference
Typefour speed power shiftReference
Gears16 forward and reverseReference
Clutchwet discReference
Four power shift gears in four ranges.Reference
TransmissionAutoPower VIReference
Typesix speed power shiftReference
Gears24 forward and reverseReference
Six power shift gears in four ranges.Reference
TransmissionTechstar CVTReference
Typecontinuously variable transmission (CVT)Reference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
PTO (claimed)82.0 kWReference
PTO (claimed)82.0 kWReference
PTO (claimed)85.8 kWReference
PTO (tested)102.1 kWReference
Typeclosed center load sensing (CCLS)Reference
Typeopen center optionalReference
Valves2 to 4Reference
SCV flow56.8 lpmReference
SCV flow-unknown-Reference
SCV flow109.8 lpmReference
Rear TypeIII/IIReference
Controlelectronic lower link draft sensingReference
Rear lift (at 24"/610mm)5171 kgReference
DrawbarCat. 2Reference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Rear PTO Type540/540E/1000Reference
Rear PTO Type540/540E/1000/1000EReference
Power at rated PTO speed98.7 kWReference
Power at rated PTO speed99.8 kWReference
Dimensions
Wheelbase266 cmReference
Weight5670 kgReference
Shipping weight5670 kgReference
Flange rear axleReference
Bar rear axle82 by 2032 mmReference
Bar rear axle82 by 2667 mmReference
Bar rear axle94 by 2286 mmReference
Bar rear axle94 by 2870 mmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps175Reference
Charging amps240 (2x 120)Reference
Charging amps350 (2x 175)Reference
Batteries2Reference
Battery CCA600Reference
Battery volts12Reference
Test results
OECD 2794: diesel CVT 4WDReference
OECD 2833: diesel AutoPower IV 4WDReference
Diesel CVT 4WDAugust 2013 - September 2013, Link: OCED Tractor Test 2794 fileReference
PTO performanceReference
Fuel use29.1 l/hourReference
Fuel use27.3 l/hourReference
Fuel use28.8 l/hourReference
Drawbar performanceReference
Fuel use26.1 l/hourReference
Pull at 8.17KPHReference
Max pull6282 kgReference
Pull at 3.62KPHReference
Diesel AutoPower IV 4WDFebruary 2014 - March 2014, Link: OCED Tractor Test 2833 fileReference
Fuel use29.5 l/hourReference
Fuel use28.0 l/hourReference
Gear 3A used for power test.Reference
Max pull5601 kgReference
Gear 1D used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
