Tractor · 2014Unverified

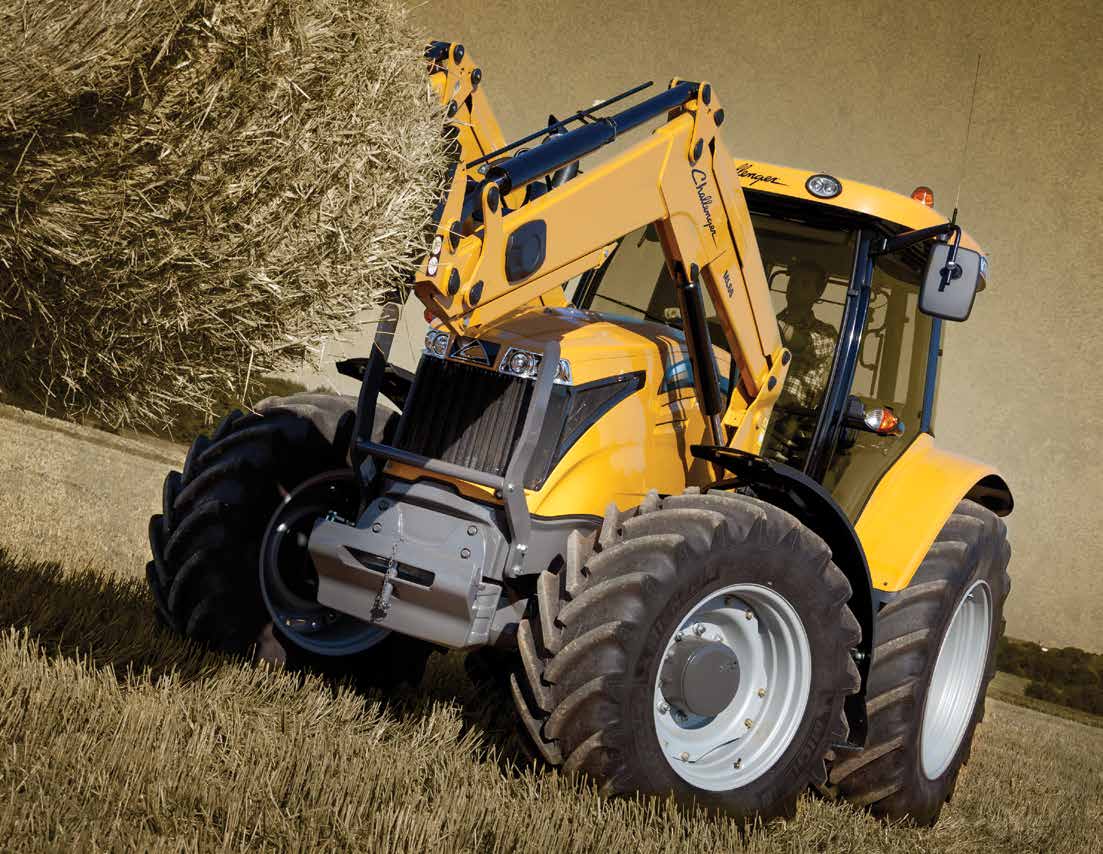

Challenger MT495D

Name: Challenger MT495D
Brand: Challenger

Challenger MT495D — MT400D Series · 150 hp. Reference specifications; pending source verification.

The Challenger MT495D is a tractor with a rated power of 150 hp, positioning it at the more powerful end of its class. It was manufactured from 2014 to 2016. This model features a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, paired with four-wheel drive and a continuously variable transmission. Its listed operating weight is 5670 kg, and it is suitable for operations on 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

150 hp

Max power

104.9 kW

Weight

5670 kg

Catalogue coverage

Variants represented

Richest spec table

109 rows

Recorded power

150 hp

Recorded weight

5670 kg

Transmissions

24-speed six speed power shift

Production years

2014-2016

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerChallenger (a part of AGCO)Reference

Utility tractorReference

Four-wheel driveReference

Steeringhydrostatic powerReference

Wet disc brakesReference

Cab standard with air-conditioning.Reference

Variants

6616similar Massey Ferguson modelReference

Engine

AGCO Power 4.9L 4-cyl dieselReference

Fuel tank242.2 LReference

Exhaust fluid (DEF)34.8 LReference

Engine (gross)111.9 kWReference

Drawbar (tested)73.6 kWReference

AGCO Power 49AWIReference

turbocharged air-to-air intercooled dieselReference

4-cylinder 16-valveReference

liquid-cooledReference

Displacement4.9 LReference

Bore/Stroke108 x 134 mmReference

EmissionsInterim Tier IVReference

Emission controlselective catalytic reduction (SCR)Reference

Power (gross)111.9 kWReference

Fuel systemelectronic high pressure common railReference

Air cleanerdual dry elementReference

Pre-heatingthermostartReference

Rated RPM2200Reference

StarterelectricReference

Starter volts12Reference

Max power104.9 kWReference

Power at rated engine speed95.1 kWReference

Max power73.6 kWReference

Fuel TypedieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,200 RPMReference

Emissions complianceInterim Tier IV | selective catalytic reduction (SCR)Reference

Bore and stroke4.251x5.276 inchesReference

Transmission

24-speed six speed power shiftReference

continuously variable transmission (CVT)Reference

TransmissionAutoPower VIReference

Typesix speed power shiftReference

Gears24 forward and reverseReference

Six power shift gears in four ranges.Reference

TransmissionTechstar CVTReference

Typecontinuously variable transmission (CVT)Reference

Gearsinfinite forward and reverseReference

Transmission TypeCVTReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)89.5 kWReference

PTO (claimed)93.2 kWReference

PTO (tested)104.9 kWReference

Typeclosed center load sensing (CCLS)Reference

Typeopen center optionalReference

Valves2 to 4Reference

SCV flow56.8 lpmReference

SCV flow-unknown-Reference

SCV flow109.8 lpmReference

Rear TypeIII/IIReference

Controlelectronic lower link draft sensingReference

Rear lift (at 24"/610mm)5171 kgReference

DrawbarCat. 2Reference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Rear PTO Type540/540E/1000Reference

Rear PTO Type540/540E/1000/1000EReference

Power at rated PTO speed102.7 kWReference

Dimensions

Wheelbase266 cmReference

Weight5670 kgReference

Shipping weight5670 kgReference

Flange rear axleReference

Bar rear axle82 by 2032 mmReference

Bar rear axle82 by 2667 mmReference

Bar rear axle94 by 2286 mmReference

Bar rear axle94 by 2870 mmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps175Reference

Charging amps240 (2x 120)Reference

Charging amps350 (2x 175)Reference

Batteries2Reference

Battery CCA600Reference

Battery volts12Reference

Battery options2Reference

Total cold cranking amps600 CCAReference

Test results

Diesel CVT 4WDJuly 2013 - September 2013, Link: OCED Tractor Test 2792 fileReference

PTO performanceReference

Fuel use29.9 l/hourReference

Fuel use28.8 l/hourReference

Fuel use29.5 l/hourReference

Drawbar performanceReference

Fuel use27.6 l/hourReference

Pull at 8.44KPHReference

Max pull6352 kgReference

Pull at 3.6KPHReference

General

Make & ModelChallenger (a part of AGCO)Reference

Drawbar categoryCat. 2Reference

Capacities

Capacity299 ciReference

Diesel exhaust fluid (DEF) tank34.8 LReference

Hydraulics

Capacity Valves16 ValvesReference

Hydraulics Typeclosed center load sensing (CCLS) | open center optionalReference

Remote Valves2 to 4 ValvesReference

Rear Hitch category (SAE designation)Category III/IIReference

Rear Hitch Sensing Typeelectronic lower link draft sensingReference

PTO

PTO Power125 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Steering & brakes

BrakesWet discReference

Steering typehydrostatic powerReference

Dimensions & weight

Overall weight5,669.9 kgReference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
