Tractor · 2013Unverified

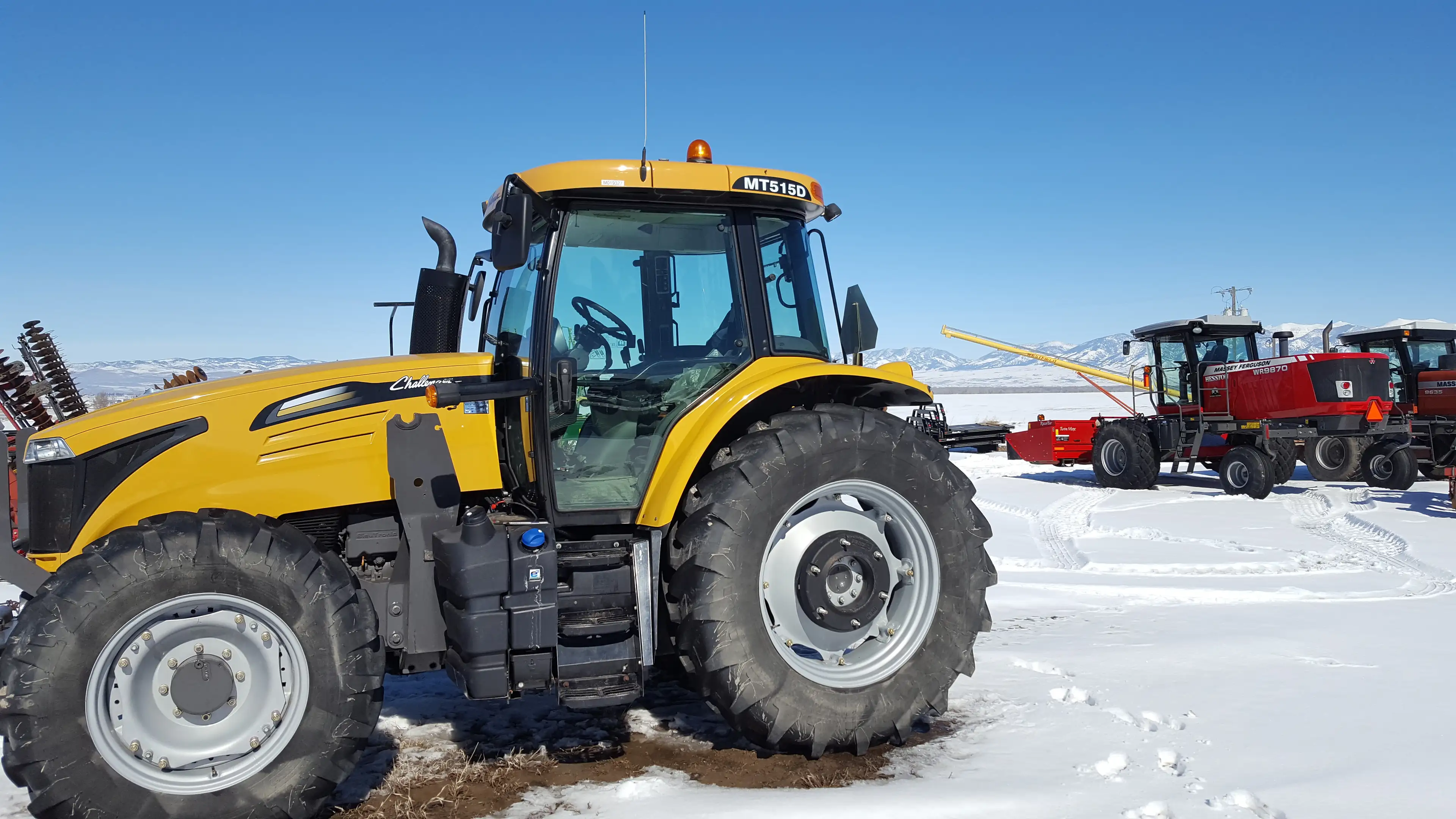

Challenger MT515D
Challenger MT515D — MT500D Series · 121 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
121 hp
Max power
101.1 kW
Hover a source tag to verify
Overview
ManufacturerChallenger (a part of AGCO)Reference
Row-Crop tractorReference
Built in Beauvais, FranceReference
Original price was $124,777 in 2013Reference
Four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning. AGCO System 150 ((Optional)); AGCOMMAND ((Optional))Reference
Variants
7614similar Massey Ferguson modelReference
Engine
AGCO Power 6.6L 6-cyl dieselReference
Fuel tank310.4 LReference
Exhaust fluid (DEF)30.3 LReference
Engine96.9 kWReference
Drawbar (tested)75.0 kWReference
AGCO PowerReference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.6 LReference
Bore/Stroke108 x 120 mmReference
EmissionsInterim Tier IVReference
Emission controlselective catalyitic reduction (SCR)Reference
Power96.9 kWReference
Fuel systemelectronic high pressure common railReference
Air cleanerdual stage dryReference
StarterelectricReference
Starter volts12Reference
Max power101.1 kWReference
Power at rated engine speed90.4 kWReference
Max power75.0 kWReference
Transmission
16-speed four-speed power shiftReference
TransmissionAutoPower IVReference
Typefour-speed power shiftReference
Gears16 forward and reverseReference
PTO & Hydraulics
PTO (claimed)82.0 kWReference
PTO (tested)101.1 kWReference
Typeclosed center load sensing (CCLS)Reference
Pressure200.0 barReference
Valves2 to 4Reference
Total flow109.8 lpmReference
Rear TypeIII/IIReference
Controlelectronic lower link draft controlReference
DrawbarCat. 2Reference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Rear PTO Type540/540E/1000Reference
Rear PTO Type540E/1000E/1000/1000EReference
Power at rated PTO speed98.9 kWReference
Dimensions
Front tire380/85R28Reference
Rear tire460/85R38Reference
Standard tires (ag)Front: 380/85R28. Rear: 460/85R38Reference
Flange rear axleReference
Bar rear axle82 by 2032 mmReference
Long bar rear axle82 by 2667 mmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps175Reference
Charging amps240Reference
Batteries2Reference
Battery CCA600Reference
Battery volts12Reference
Test results
Diesel AutoPower IV 4WDApril 2012 - May 2012, Link: OCED Tractor Test 2754 fileReference
PTO performanceReference
Fuel use29.5 l/hourReference
Fuel use27.6 l/hourReference
Fuel use28.8 l/hourReference
Drawbar performanceReference
Fuel use25.4 l/hourReference
Gear 3A used for power test.Reference
Max pull5322 kgReference
Gear 2A used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
