Tractor · 2015Unverified

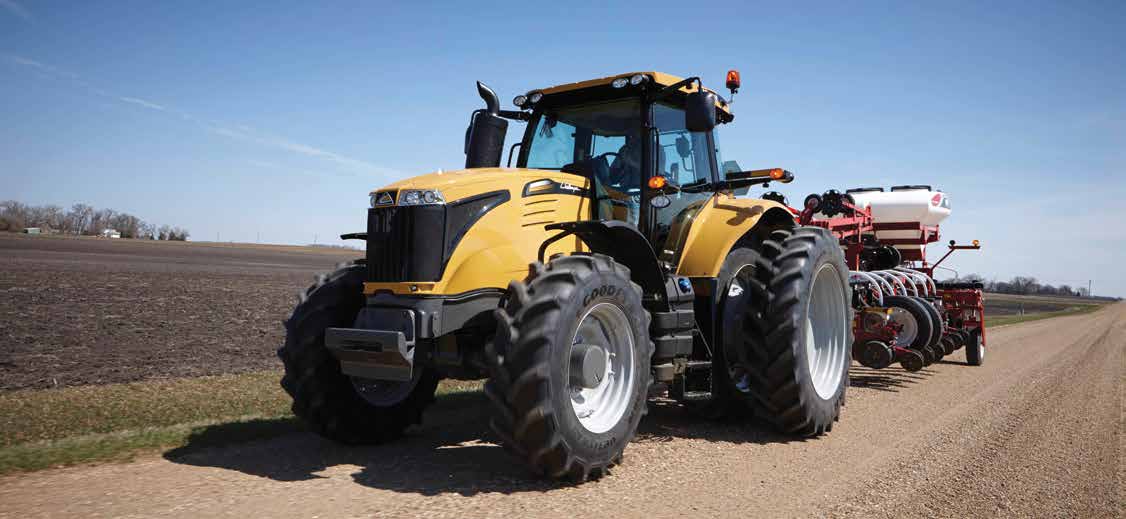

Challenger MT515E
Challenger MT515E — MT500E Series · 130 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
130 hp
Max power
102.0 kW
Hover a source tag to verify
Overview
ManufacturerChallenger (a part of AGCO)Reference
Row-Crop tractorReference
Built in Jackson, Minnesota, USAReference
Four-wheel driveReference
Differential lockelectro-hydraulic front and rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning. Auto-Guide 3000Reference
Variants
7714similar Massey Ferguson modelReference
Engine
AGCO Power 6.6L 6-cyl dieselReference
Engine (gross)96.9 kWReference
Engine (max)123.0 kWReference
Drawbar (tested)86.8 kWReference
AGCO PowerReference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.6 LReference
Bore/Stroke108 x 120 mmReference
EmissionsTier IVReference
Emission controlselective catalytic reduction (SCR)Reference
Rated Power (gross)96.9 kWReference
Maximum Power (gross)123.0 kWReference
Air cleanerdry elementReference
Rated RPM2100Reference
StarterelectricReference
Starter volts12Reference
Max power102.0 kWReference
Power at rated engine speed96.5 kWReference
Max power86.8 kWReference
Transmission
16-speed four-speed power shiftReference
TransmissionAutoPower IVReference
Typefour-speed power shiftReference
Gears16 forward and reverseReference
PTO & Hydraulics
PTO (claimed)85.8 kWReference
PTO (tested)102.0 kWReference
Hydraulic system60.2 LReference
Hydraulic system99.9 LReference
Typeclosed-center load sensingReference
Capacity60.2 LReference
Capacity99.9 LReference
Pressure200.0 barReference
Valves3 or 4Reference
SCV flow99.9 lpmReference
Total flow109.8 lpmReference
Total flow189.2 lpmReference
Rear TypeIIReference
Rear lift (at ends)4037 kgReference
Front HitchIIReference
Front lift (at ends)2812 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Rear PTO Type540/540E/1000/1000EReference
Power at rated PTO speed100.2 kWReference
Capacities
Fuel302.8 LReference
Exhaust fluid (DEF)30.3 LReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Test results
Diesel AutoPower IV 4WDJune 2016 - July 2016, Link: OCED Tractor Test 2994 fileReference
PTO performanceReference
Fuel use29.1 l/hourReference
Fuel use29.5 l/hourReference
Drawbar performanceReference
Fuel use29.9 l/hourReference
Gear 3A used for power test.Reference
Max pull5821 kgReference
Gear 1D used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
