Tractor · 2013Unverified

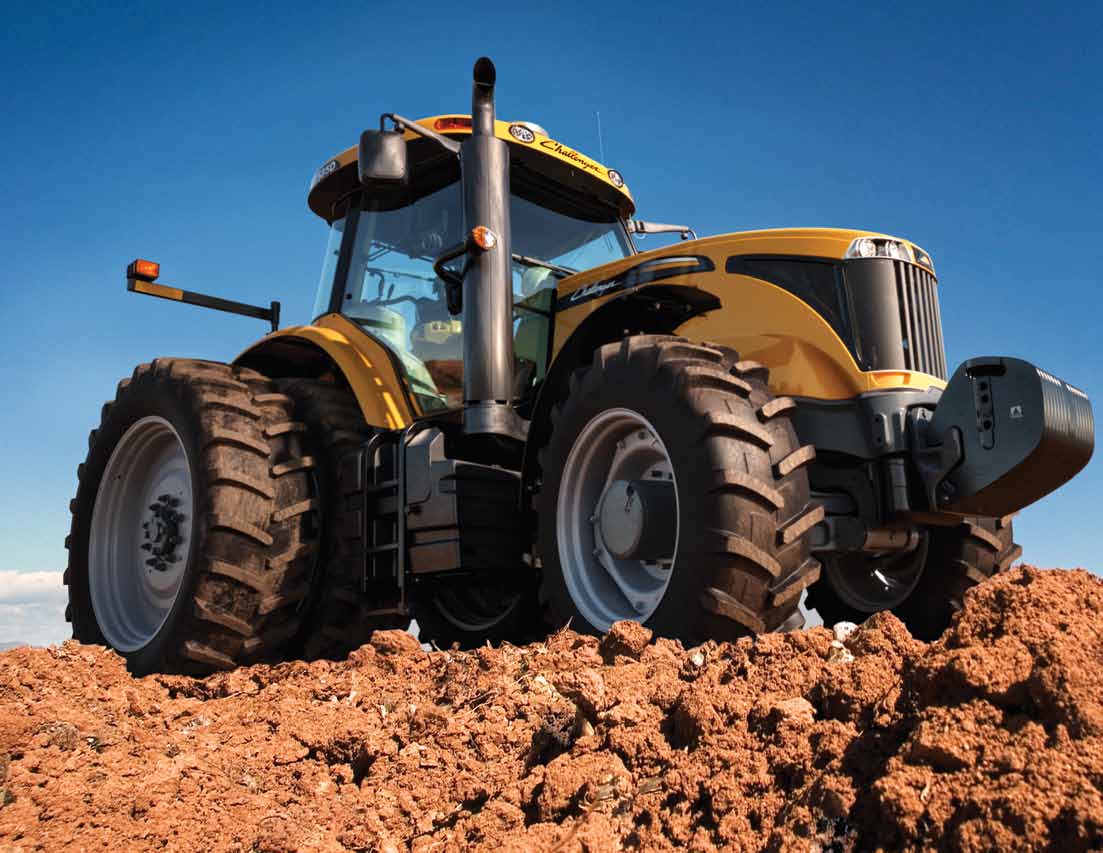

Challenger MT525D
Challenger MT525D — MT500D Series · 127 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
127 hp
Max power
105.8 kW
Hover a source tag to verify
Overview
ManufacturerChallenger (a part of AGCO)Reference
Row-Crop tractorReference
Built in Beauvais, FranceReference
Original price$130,112 (2013 classic )Reference
Original price$151,316 (2013 deluxe )Reference
Original price$159,794 (2013 deluxe )Reference
Four-wheel driveReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning. AGCO System 150 (optional); AGCOMMAND (optional)Reference
Variants
7615similar Massey Ferguson modelReference
Engine
AGCO Power 6.6L 6-cyl dieselReference
Fuel tank310.4 LReference
Exhaust fluid (DEF)30.3 LReference
Engine104.4 kWReference
Drawbar (tested)79.5 kWReference
AGCO PowerReference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.6 LReference
Bore/Stroke108 x 120 mmReference
EmissionsInterim Tier IVReference
Emission controlselective catalyitic reduction (SCR)Reference
Power104.4 kWReference
Fuel systemelectronic high pressure common railReference
Air cleanerdual stage dryReference
StarterelectricReference
Starter volts12Reference
Max power105.8 kWReference
Power at rated engine speed94.8 kWReference
Max power79.5 kWReference
Power at rated engine speed88.9 kWReference
Max power73.1 kWReference
Max power101.6 kWReference
Max power73.0 kWReference
Transmission
16-speed four-speed power shiftReference
24-speed six-speed power shiftReference
continuously variable transmissionReference
TransmissionAutoPower IVReference
Typefour-speed power shiftReference
Gears16 forward and reverseReference
TransmissionAutoPower VIReference
Typesix-speed power shiftReference
Gears24 forward and reverseReference
TransmissionTechStar CVTReference
Typecontinuously variable transmissionReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
PTO (claimed)82.0 kWReference
PTO (claimed)89.5 kWReference
PTO (tested)105.8 kWReference
Typeclosed center load sensing (CCLS)Reference
Pressure200.0 barReference
Valves2 to 4Reference
Total flow109.8 lpmReference
Rear TypeIII/IIReference
Controlelectronic lower link draft controlReference
DrawbarCat. 2Reference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Rear PTO Type540/540E/1000Reference
Rear PTO Type540E/1000E/1000/1000EReference
Power at rated PTO speed102.7 kWReference
Power at rated PTO speed97.2 kWReference
Dimensions
Front tire380/85R28Reference
Rear tire460/85R38Reference
Standard tires (ag)Front: 380/85R28. Rear: 460/85R38Reference
Flange rear axleReference
Bar rear axle82 by 2032 mmReference
Long bar rear axle82 by 2667 mmReference
Bar rear axle94 by 2286 mmReference
Long bar rear axle94 by 2870 mmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps175Reference
Charging amps240Reference
Batteries2Reference
Battery CCA600Reference
Battery volts12Reference
Test results
OECD 2753: diesel AutoPower IV 4WDReference
OECD 2791: diesel AutoPower VI 4WDReference
OECD 2774: diesel CVT 4WDReference
Diesel AutoPower IV 4WDApril 2012 - May 2012, Link: OCED Tractor Test 2753 fileReference
PTO performanceReference
Fuel use30.7 l/hourReference
Fuel use28.4 l/hourReference
Fuel use29.9 l/hourReference
Drawbar performanceReference
Fuel use26.9 l/hourReference
Gear 3A used for power test.Reference
Max pull5577 kgReference
Gear 2A used for pull test.Reference
Diesel AutoPower VI 4WDNovember 2012 - July 2013, Link: OCED Tractor Test 2791 fileReference
Fuel use24.6 l/hourReference
Max pull5924 kgReference
Gear 1F used for pull test.Reference
Diesel CVT 4WDMarch 2013 - April 2013, Link: OCED Tractor Test 2774 fileReference
Fuel use28.8 l/hourReference
Pull at 7.86KPHReference
Max pull6912 kgReference
Pull at 3.51KPHReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
