Tractor · 2013Unverified

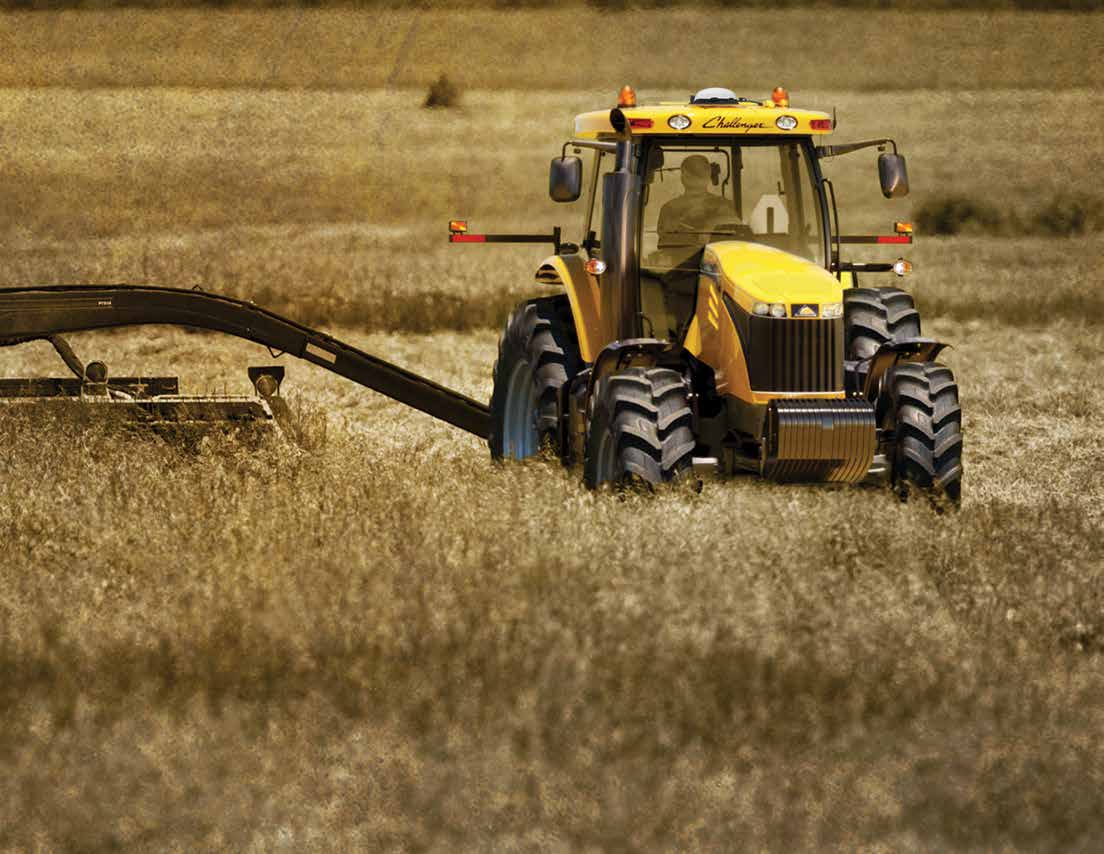

Challenger MT545D
Challenger MT545D — MT500D Series · 137 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
137 hp
Max power
113.4 kW
Hover a source tag to verify
Overview
ManufacturerChallenger (a part of AGCO)Reference
Row-Crop tractorReference
Built in Beauvais, FranceReference
Original price$140,255 (2013 classic )Reference
Original price$162,986 (2013 deluxe )Reference
Original price$171,464 (2013 deluxe )Reference
Four-wheel driveReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning. AGCO System 150 (optional); AGCOMMAND (optional)Reference
Variants
7618similar Massey Ferguson modelReference
Engine
AGCO Power 6.6L 6-cyl dieselReference
Fuel tank310.4 LReference
Exhaust fluid (DEF)30.3 LReference
Engine123.0 kWReference
Drawbar (tested)88.5 kWReference
AGCO PowerReference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.6 LReference
Bore/Stroke108 x 120 mmReference
EmissionsInterim Tier IVReference
Emission controlselective catalyitic reduction (SCR)Reference
Power123.0 kWReference
Fuel systemelectronic high pressure common railReference
Air cleanerdual stage dryReference
StarterelectricReference
Starter volts12Reference
Max power113.4 kWReference
Power at rated engine speed102.1 kWReference
Max power82.0 kWReference
Max power116.5 kWReference
Power at rated engine speed105.2 kWReference
Max power88.5 kWReference
Transmission
24-speed six-speed power shiftReference
continuously variable transmissionReference
TransmissionAutoPower VIReference
Typesix-speed power shiftReference
Gears24 forward and reverseReference
TransmissionTechStar CVTReference
Typecontinuously variable transmissionReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
PTO (claimed)96.9 kWReference
PTO (tested)116.5 kWReference
Typeclosed center load sensing (CCLS)Reference
Pressure200.0 barReference
Valves2 to 4Reference
Total flow109.8 lpmReference
Rear TypeIII/IIReference
Controlelectronic lower link draft controlReference
DrawbarCat. 2Reference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Rear PTO Type540/540E/1000Reference
Rear PTO Type540E/1000E/1000/1000EReference
Power at rated PTO speed109.6 kWReference
Power at rated PTO speed113.3 kWReference
Dimensions
Front tire380/85R28Reference
Rear tire460/85R38Reference
Standard tires (ag)Front: 380/85R28. Rear: 460/85R38Reference
Flange rear axleReference
Bar rear axle82 by 2032 mmReference
Long bar rear axle82 by 2667 mmReference
Bar rear axle94 by 2286 mmReference
Long bar rear axle94 by 2870 mmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps175Reference
Charging amps240Reference
Batteries2Reference
Battery CCA600Reference
Battery volts12Reference
Test results
OECD 2775: diesel CVT 4WDReference
OECD 2788: diesel AutoPower VI 4WDReference
Diesel CVT 4WDMarch 2013 - April 2013, Link: OCED Tractor Test 2775 fileReference
PTO performanceReference
Fuel use32.9 l/hourReference
Fuel use31.4 l/hourReference
Fuel use32.6 l/hourReference
Drawbar performanceReference
Pull at 7.79KPHReference
Max pull6842 kgReference
Pull at 3.12KPHReference
Diesel AutoPower VI 4WDNovember 2012 - July 2013, Link: OCED Tractor Test 2788 fileReference
Fuel use31.0 l/hourReference
Fuel use29.9 l/hourReference
Gear 3A used for power test.Reference
Max pull6066 kgReference
Gear 1F used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
