Tractor · 2015Unverified

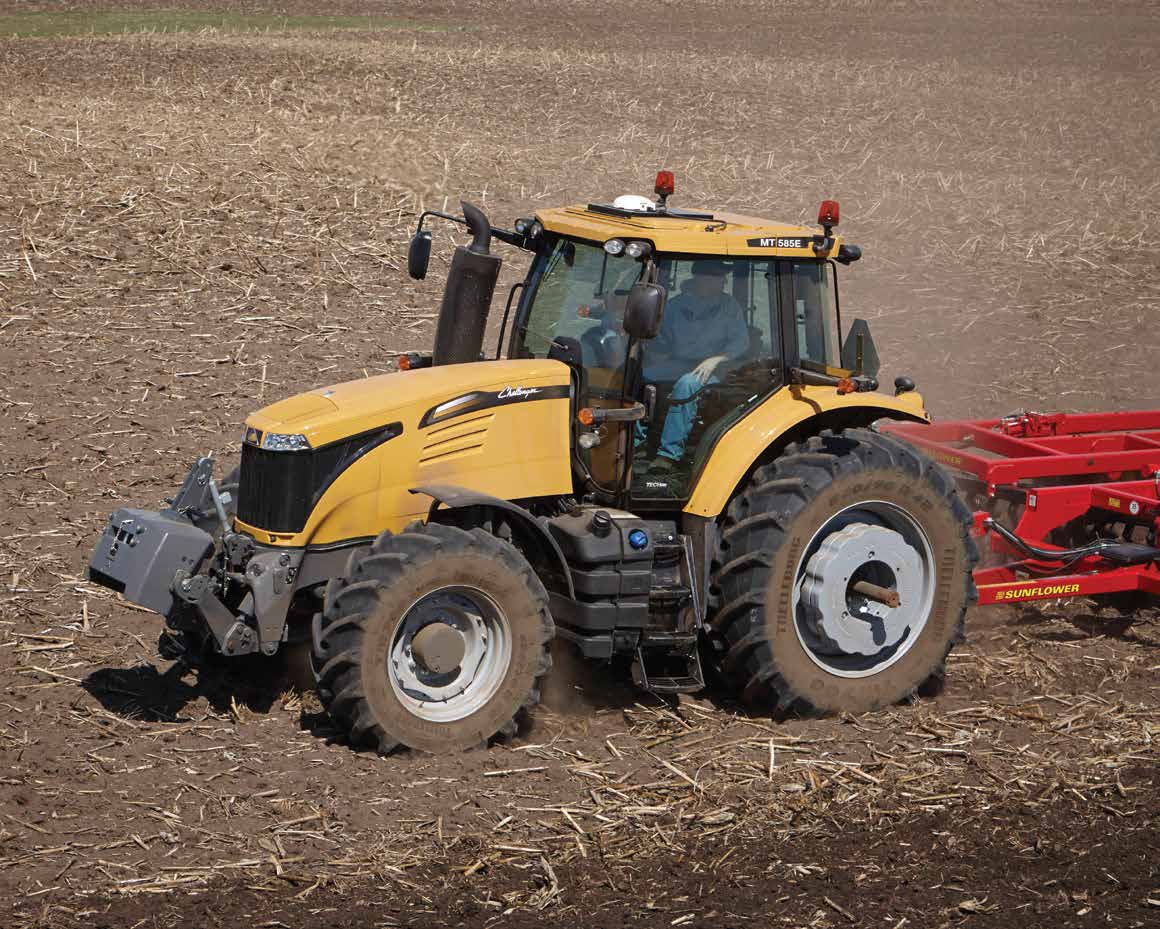

Challenger MT545E
Challenger MT545E — MT500E Series · 165 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
165 hp
Max power
123.5 kW
Hover a source tag to verify
Overview
ManufacturerChallenger (a part of AGCO)Reference
Row-Crop tractorReference
Built in Jackson, Minnesota, USAReference
Four-wheel driveReference
Differential lockelectro-hydraulic front and rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning. Auto-Guide 3000Reference
Variants
7718similar Massey Ferguson modelReference
Engine
AGCO Power 6.6L 6-cyl dieselReference
Engine (gross)123.0 kWReference
Engine (max)149.1 kWReference
Drawbar (tested)103.0 kWReference
AGCO PowerReference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.6 LReference
Bore/Stroke108 x 120 mmReference
EmissionsTier IVReference
Emission controlselective catalytic reduction (SCR)Reference
Rated Power (gross)123.0 kWReference
Maximum Power (gross)149.1 kWReference
Air cleanerdry elementReference
Rated RPM2100Reference
StarterelectricReference
Starter volts12Reference
Max power123.5 kWReference
Power at rated engine speed114.9 kWReference
Max power103.0 kWReference
Power at rated engine speed116.4 kWReference
Max power99.0 kWReference
Transmission
24-speed six-speed power shiftReference
continuously-variable transmission (CVT)Reference
TransmissionAutoPower VIReference
Typesix-speed power shiftReference
Gears24 forward and reverseReference
TransmissionTechStarReference
Typecontinuously-variable transmission (CVT)Reference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
PTO (claimed)100.7 kWReference
PTO (tested)123.5 kWReference
Hydraulic system60.2 LReference
Hydraulic system99.9 LReference
Typeclosed-center load sensingReference
Capacity60.2 LReference
Capacity99.9 LReference
Pressure200.0 barReference
Valves3 or 4Reference
SCV flow99.9 lpmReference
Total flow109.8 lpmReference
Total flow189.2 lpmReference
Rear TypeIIReference
Rear lift (at ends)4037 kgReference
Rear lift (at ends)7030 kgReference
Front HitchIIReference
Front lift (at ends)2812 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Rear PTO Type540/540E/1000/1000EReference
Power at rated PTO speed120.5 kWReference
Power at rated PTO speed122.8 kWReference
Capacities
Fuel302.8 LReference
Exhaust fluid (DEF)30.3 LReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Test results
OECD 2993: diesel AutoPower VI 4WDReference
OECD 2990: diesel TechStar CVT 4WDReference
Diesel AutoPower VI 4WDMay 2016 - August 2016, Link: OCED Tractor Test 2993 fileReference
PTO performanceReference
Fuel use34.1 l/hourReference
Fuel use33.3 l/hourReference
Drawbar performanceReference
Gear 3B used for power test.Reference
Max pull6384 kgReference
Gear 1F used for pull test.Reference
Diesel TechStar CVT 4WDJuly 2016 - August 2016, Link: OCED Tractor Test 2990 fileReference
Fuel use34.4 l/hourReference
Fuel use34.8 l/hourReference
Pull at 10.12KPHReference
Max pull7076 kgReference
Pull at 4.19KPHReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
